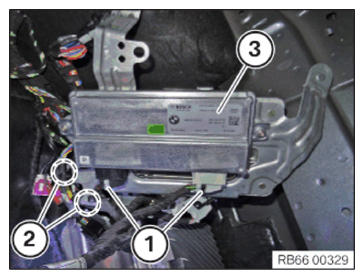

Installing the Receiver Audio Module (RAM)

• Feed in and install the Receiver Audio Module (RAM) (3)  with the bracket
• Tighten nuts (2)
  TIGHTENING TORQUE SPECIFICATION



  Holder to body
  Nut	tightening torque	6 Nm
  Screw	tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock all connectors in the area (1)

For equipment specification with Parking Assistant Plus (5DN): Install the TRSVC control unit

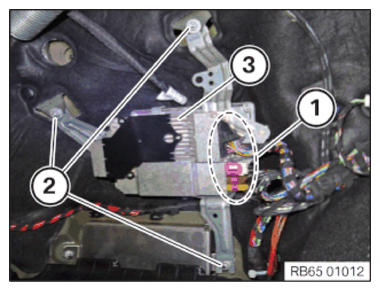

Install the TRSVC control unit

• Feed in and position the TRSVC control unit (3)  with the holder
• Engage the detents (2)  for the cable
• Connect all connectors (1)  and lock
• Turn over the TRSVC control unit (3)  with the holder

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and correctly position the receiver audio module (RAM) (3)  with the holder
• Tighten nuts (2)
  TIGHTENING TORQUE SPECIFICATION



  Holder to body
  Nut	tightening torque	6 Nm
  Screw	tightening torque	6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock all connectors in the area (1)

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL, LEFT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WELL IN FRONT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to IF INSTALLED: INSTALL THE EMERGENCY WHEEL .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
