Remove Central Information Display (CID)

NOTE: RISK OF DAMAGE
Careless handling of tools and sharp-edged components
Scratches, surface damage

NOTE: RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away
Read and comply with user information on using the associated special tool 12 7 060
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
For additional information see: 61 35..NOTES on ESD (electrostatic discharge) protection

Preliminary work

NOTE: RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away
Read and comply with user information on using the associated special tool 12 7 060
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection

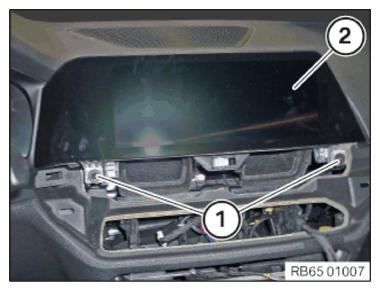

Loosen screws (1)
Pull the central information display (CID) (2) slightly out from the dashboard

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect
Remove the central information display (CID) (2)

Courtesy of BMW OF NORTH AMERICA, INC.
