Remove Outer Wheel Arch Section With Reinforcement

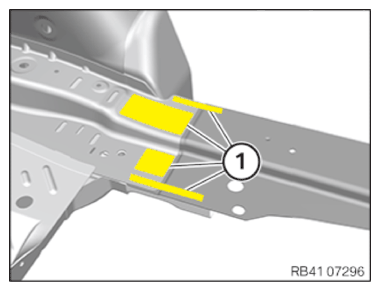

Release welded connections in areas (1)
Release the C-pillar support from the cavity sealing (2) and remove

Courtesy of BMW OF NORTH AMERICA, INC.

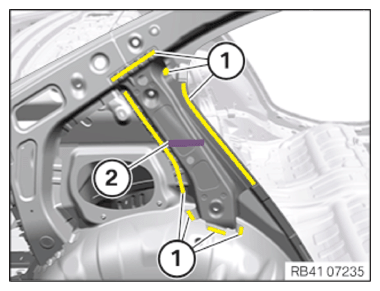

Open welded connections in areas (1) and (2)
Remove the reinforcement (2) on the C-pillar
Remove cavity sealing (3)

Courtesy of BMW OF NORTH AMERICA, INC.

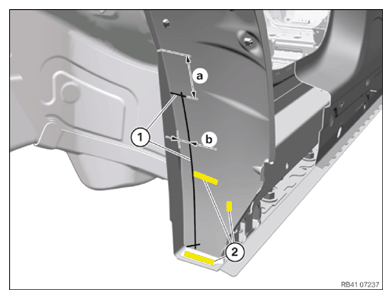

Mark and make the separating cuts (1) according to the specified dimensions a and b
Dimension a = 60 mm

Dimension b = 20 mm
Release welded connections in areas (2)

Courtesy of BMW OF NORTH AMERICA, INC.

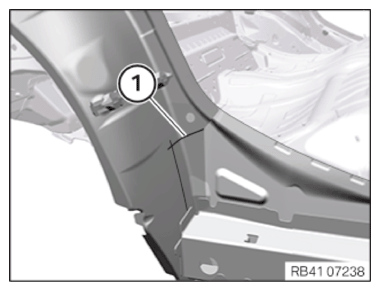

Continue with the separating cut (1) from the previous operation as shown
Thereby disconnect only the outer panel

Courtesy of BMW OF NORTH AMERICA, INC.

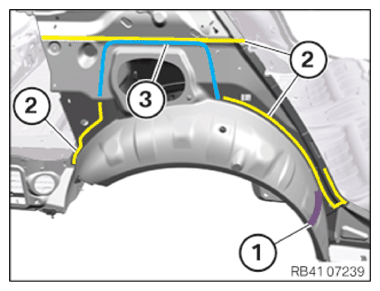

Remove cavity sealing (1)
Release welded connections in areas (2)
NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS .
Release the spot-welded adhesive joints in area (3)
Remove outer section of wheel arch

Courtesy of BMW OF NORTH AMERICA, INC.
