Ported EGR System

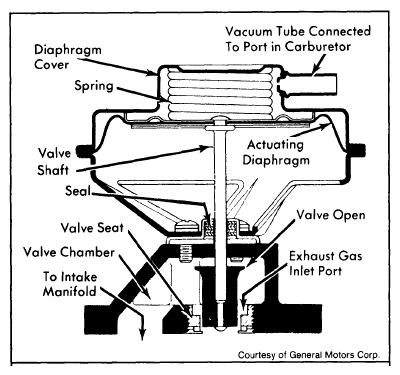

Ported type EGR valve is operated from carburetor vacuum port. It is fully closed with vacuum less than 2 in. Hg. It starts to open above 2 in. Hg and is fully open when more than 8.5 in. Hg vacuum is applied. See Figure.
