ECM Wiring Harness

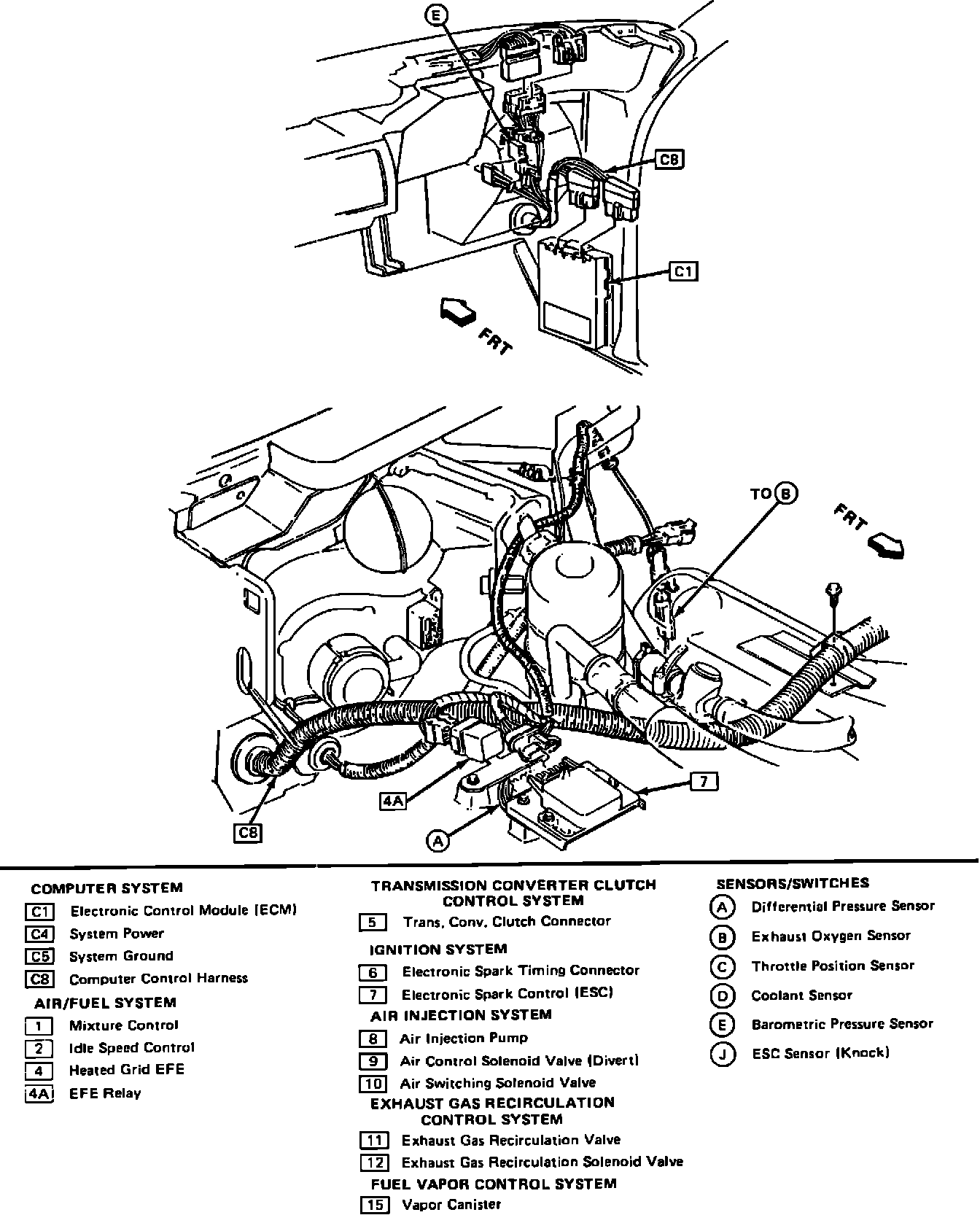

ECM Wiring Harness & Related Components (Part 1 Of 2).:

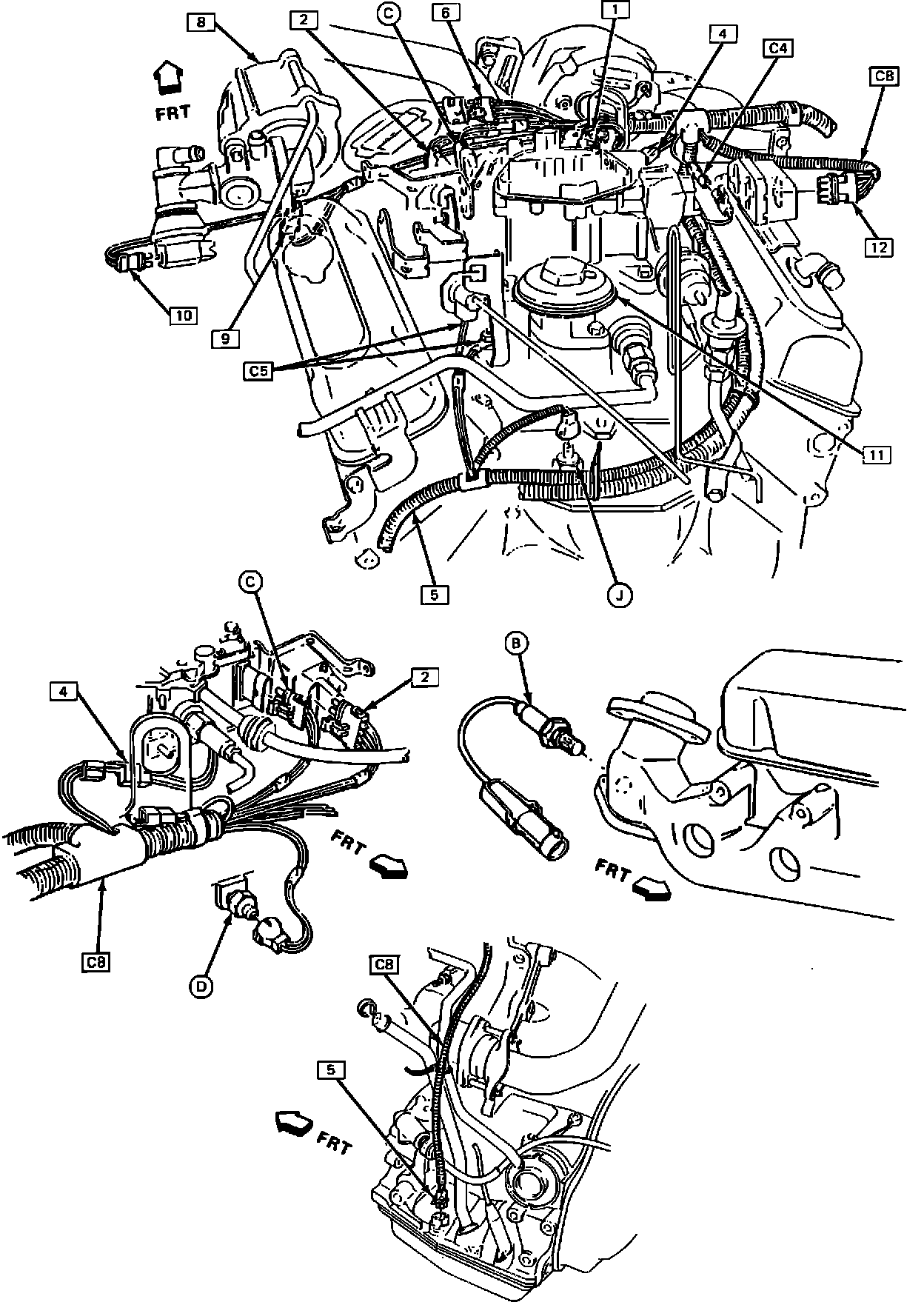

ECM Wiring Harness & Related Components (Part 1 Of 2).:




In Engine Compartment

Applicable to: 1984 Riviera & Toronado w/4.1L Engine
