System Specifications

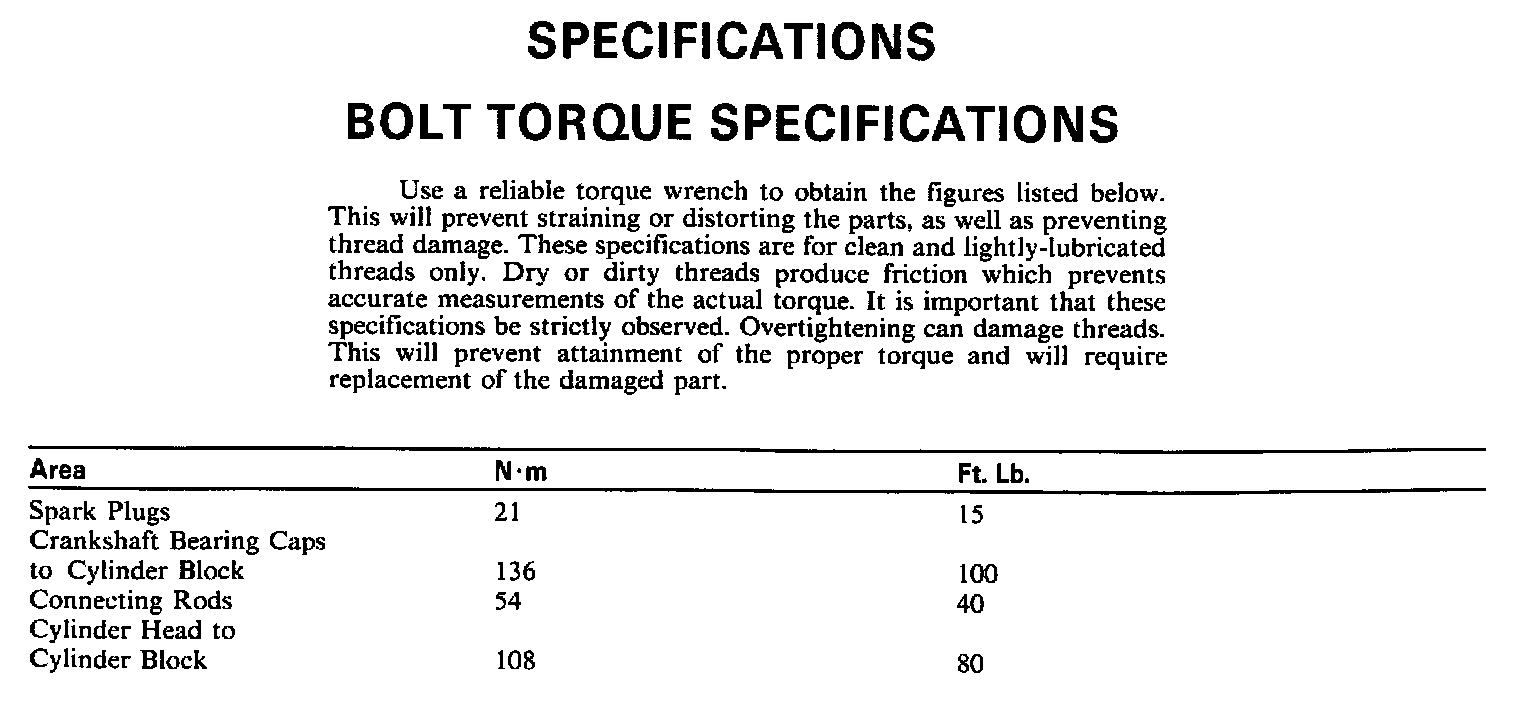

Torque Specifications:

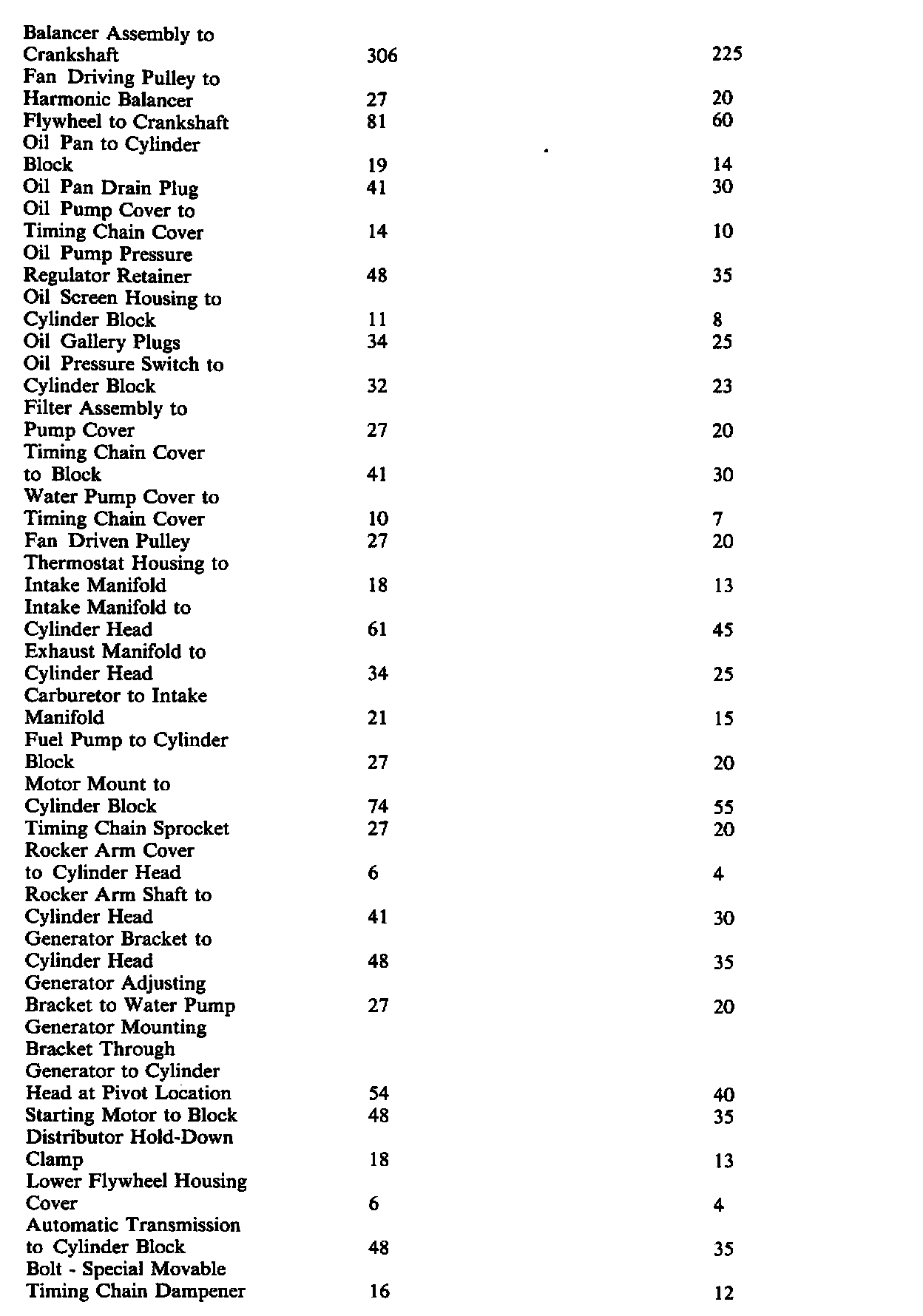

Continued Torque Specifications:

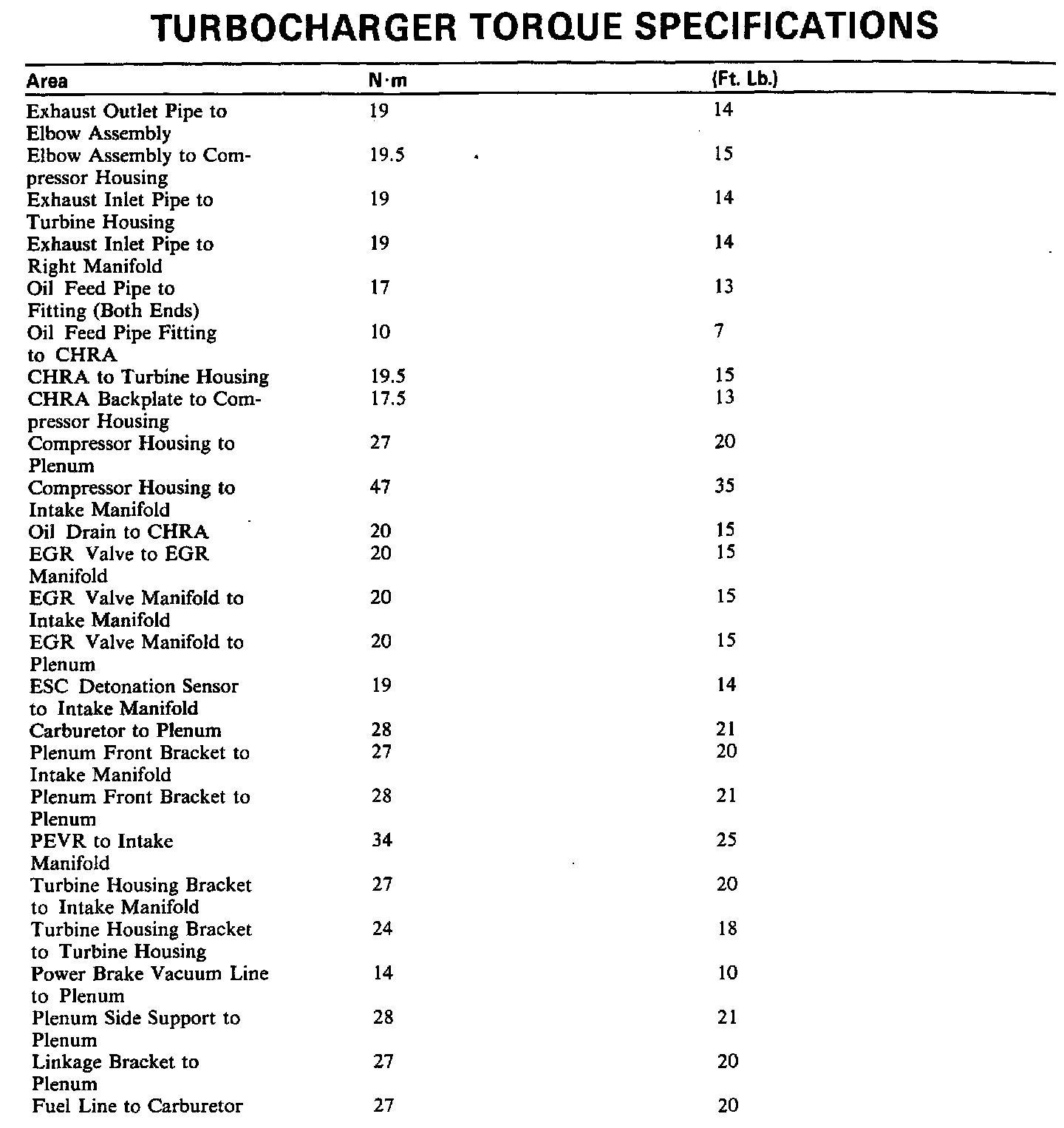

Turbocharged Torque Specification:

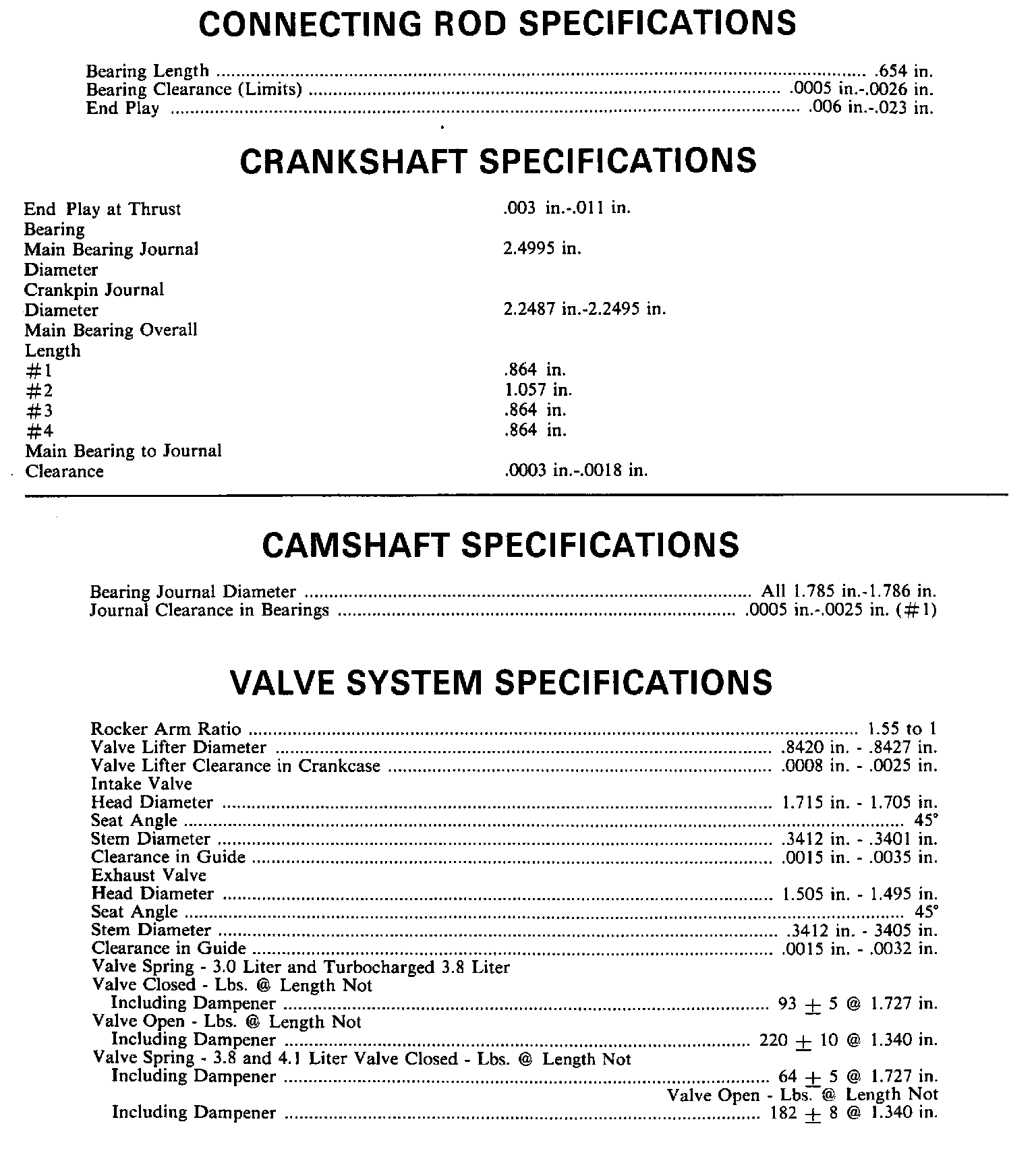

Continued Engine Specifications:

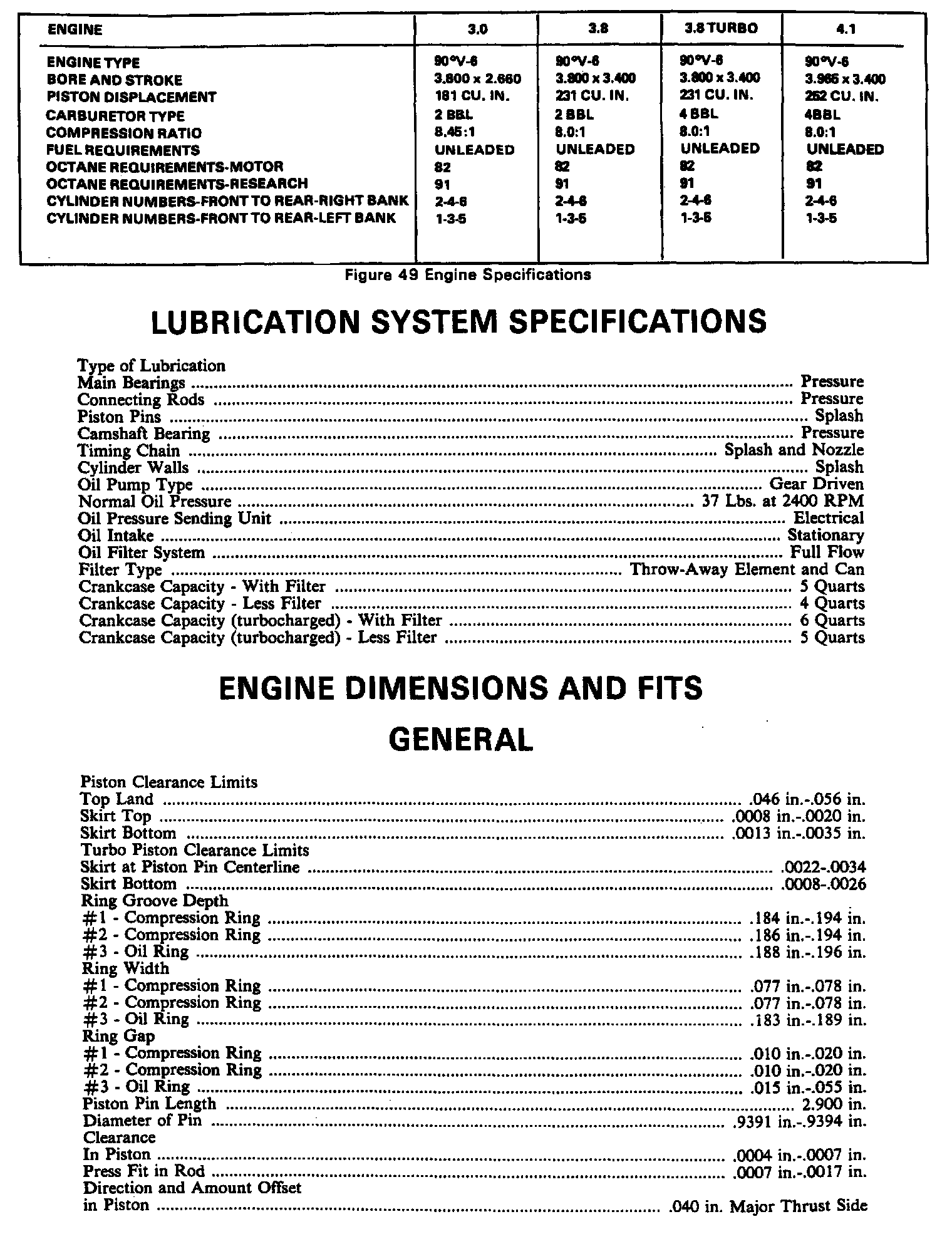

Continued Engine Specifications:

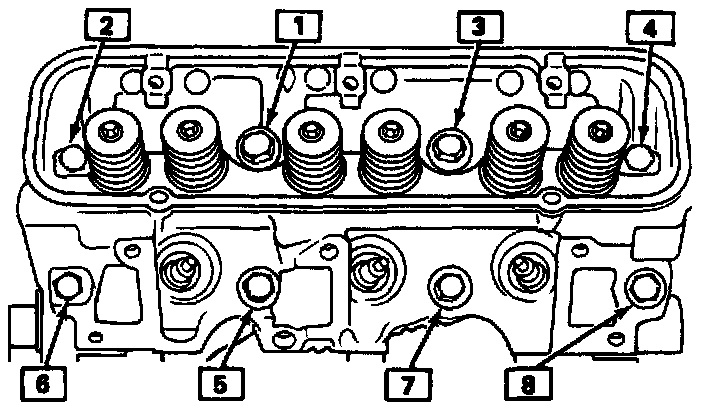

Cylinder Head Sequence:

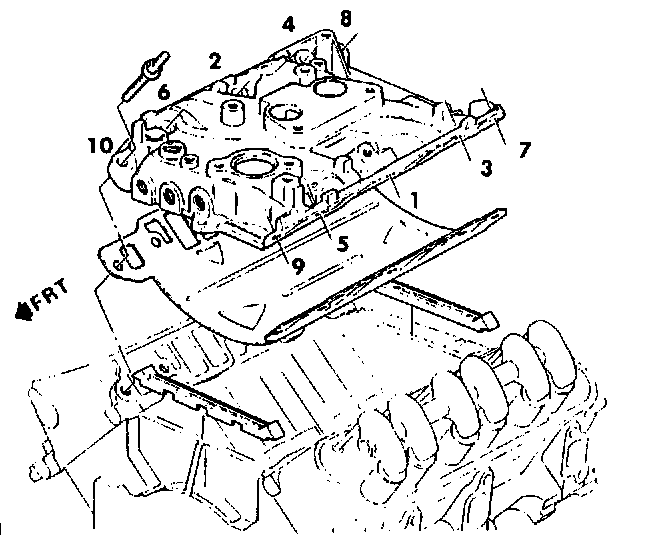

Intake Manifold Sequence:
