Section 9 (Anti-Lock Brake System): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1988 Oldsmobile Ninety-Eight, 1988 Oldsmobile Delta 88, 1987 Oldsmobile Ninety-Eight, 1987 Oldsmobile Delta 88, and 1986 Oldsmobile Ninety-Eight. However, it is still accessible from the selected car via links, so may be relevant.
The Teves 4-wheel Anti-Lock Brake System is designed to prevent wheel lock-up during heavy braking. This allows driver to maintain steering control while stopping vehicle to stop in shortest distance.

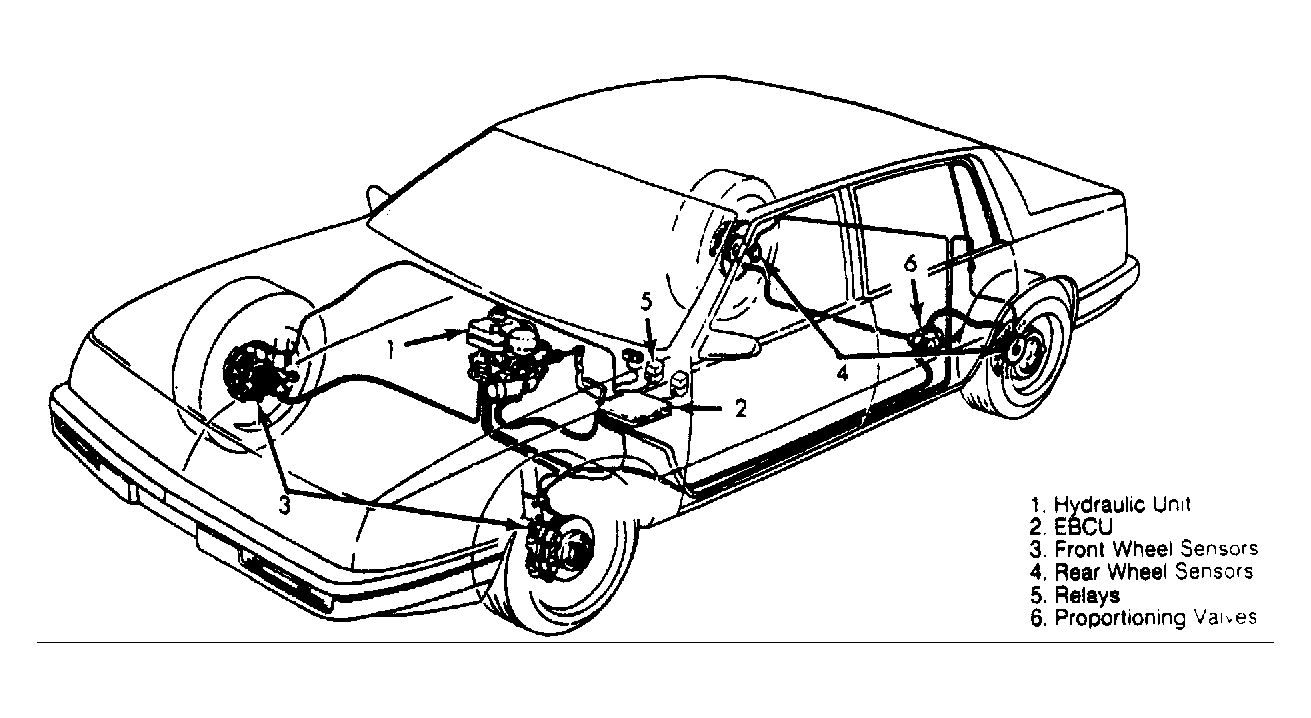

Major component parts of system include: pump motor assembly, hydraulic accumulator, pressure switch, fluid reservoir with integral filter, 4 wheel speed sensors, valve block assembly, fluid level sensor, Electronic Brake Control Module (EBCM), hydraulic booster/master cylinder assembly, and "BRAKE" and "ANTI-LOCK" warning lights. See Figure.
