Control Valve Assembly: Reassembly

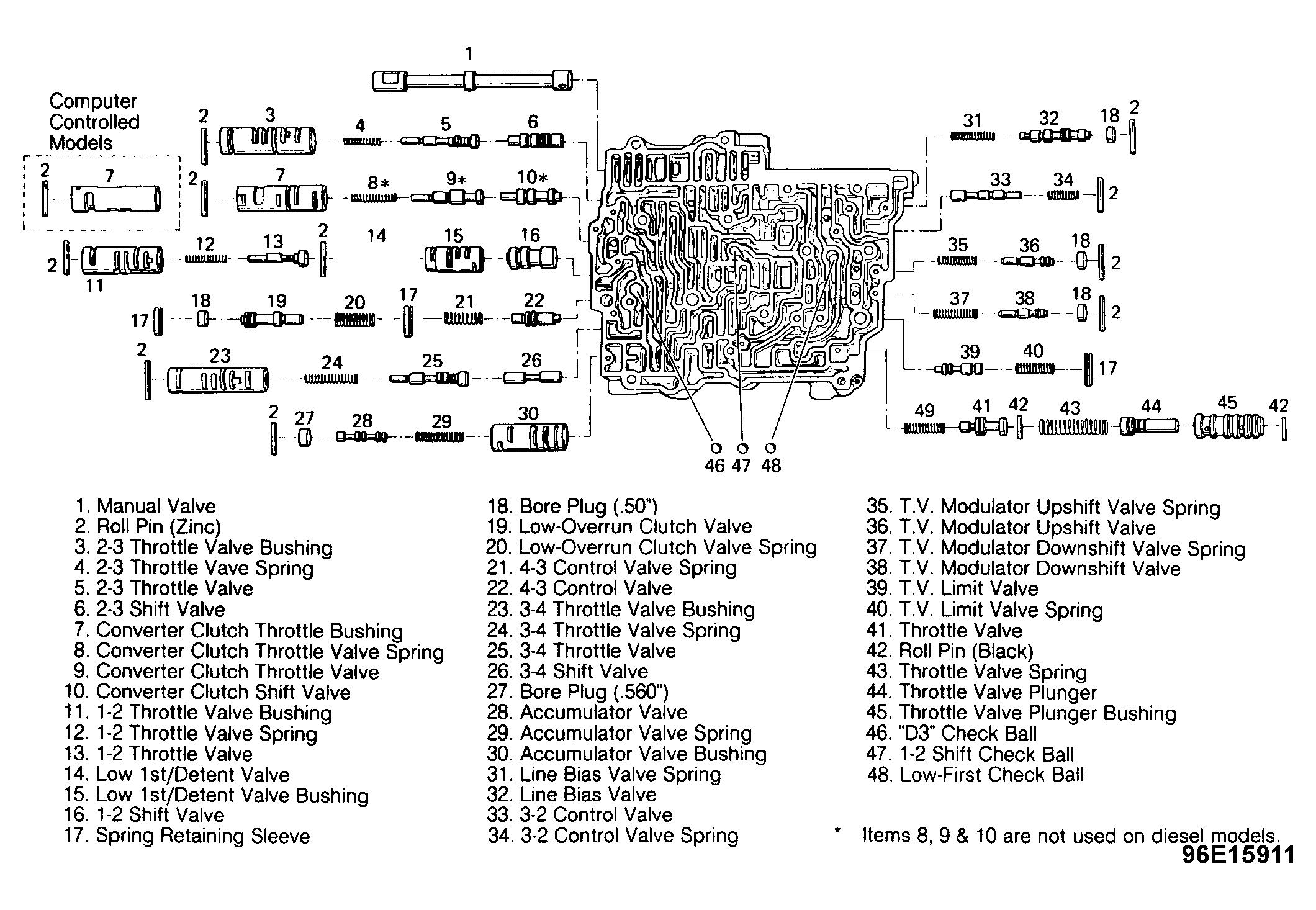

Reassembly is reverse of disassembly procedure. Reassemble control valve assembly using exploded view as a guide. See Figure .
- Install all flared roll pins (zinc coated) flared end out and from machined face of valve body.
- Install 2 tapered roll pins (Black finish) that retain throttle valve and throttle valve bushing, tapered end first.
- Roll pins do not fit flush on rough casting face. Ensure all roll pins are flush at machined face or damage to transmission will occur.
- Ensure all spring retaining sleeves are installed from machined face and that they are level with or below machined surface.
- Install all bore plugs with hole out.
- Install all valve sleeves so that slot in sleeve aligns with roll pin hole in valve body.
