Programmer

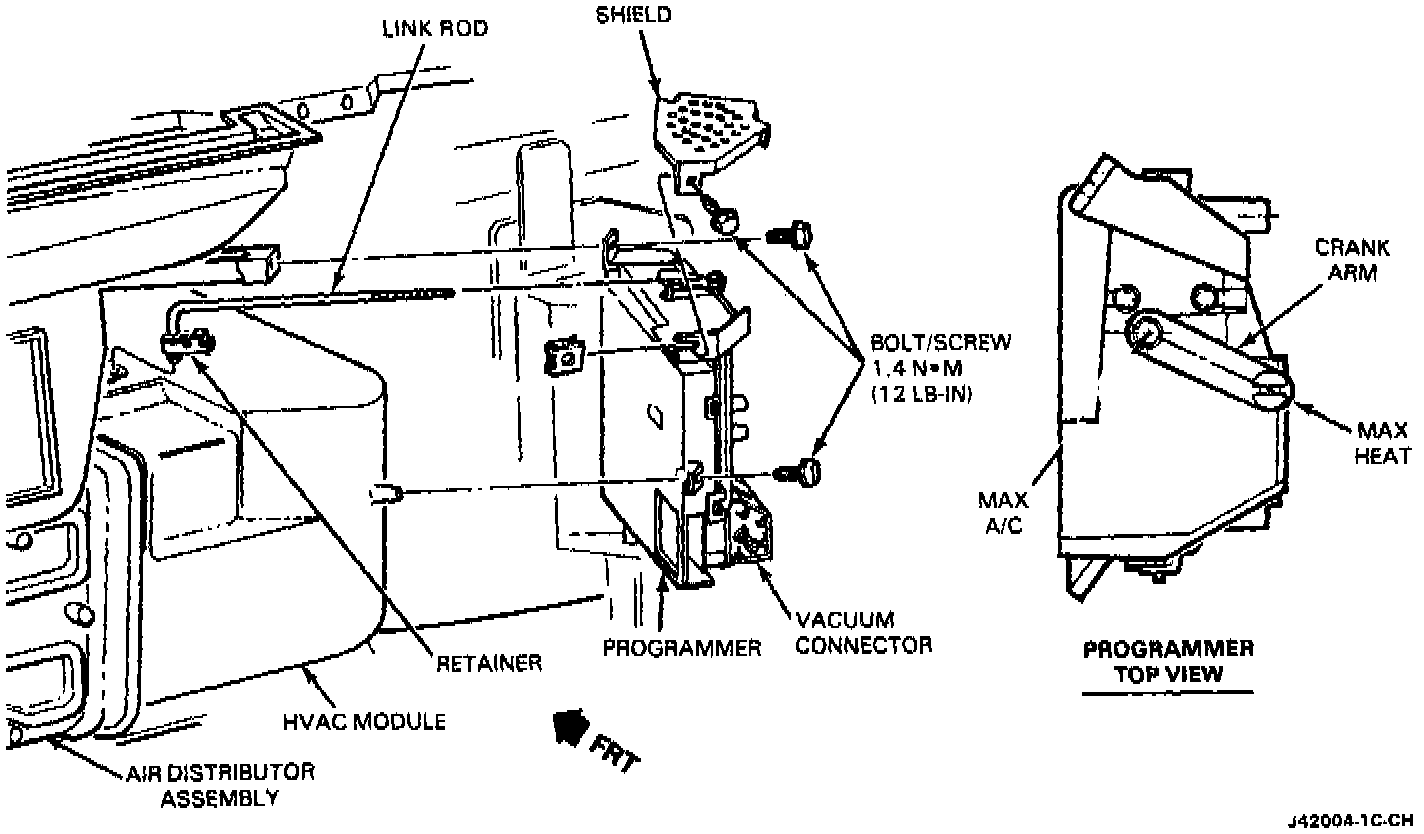

Programmer Assembly:

REMOVE OR DISCONNECT

1. Negative battery cable.

2. RH sound insulator.

3. Instrument Panel (I/P) compartment (glove box).

4. Screw securing shield, and shield.

5. Temperature valve link rod.

6. Electrical and vacuum connectors.

7. Programmer screws and programmer.

ADJUST

Before connecting temperature valve link rod during installation, do "Temperature Valve Link Adjustment" procedure. Refer to procedure under Adjustments. Adjustments

INSTALL OR CONNECT

1. Programmer and mounting screws.

2. Electrical and vacuum connectors.

3. Temperature valve link.

4. Shield and securing screw.

5. I/P compartment (glove box).

6. RH sound insulator.

7. Negative battery cable.
