Connector Views

Behind LH Side Of I/P.:

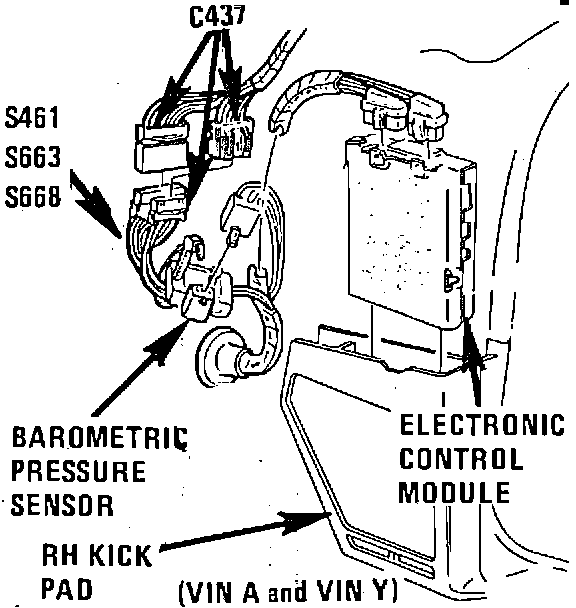

RH Shroud, Near Lower Access Hole

Applicable to: 1987 Regal
