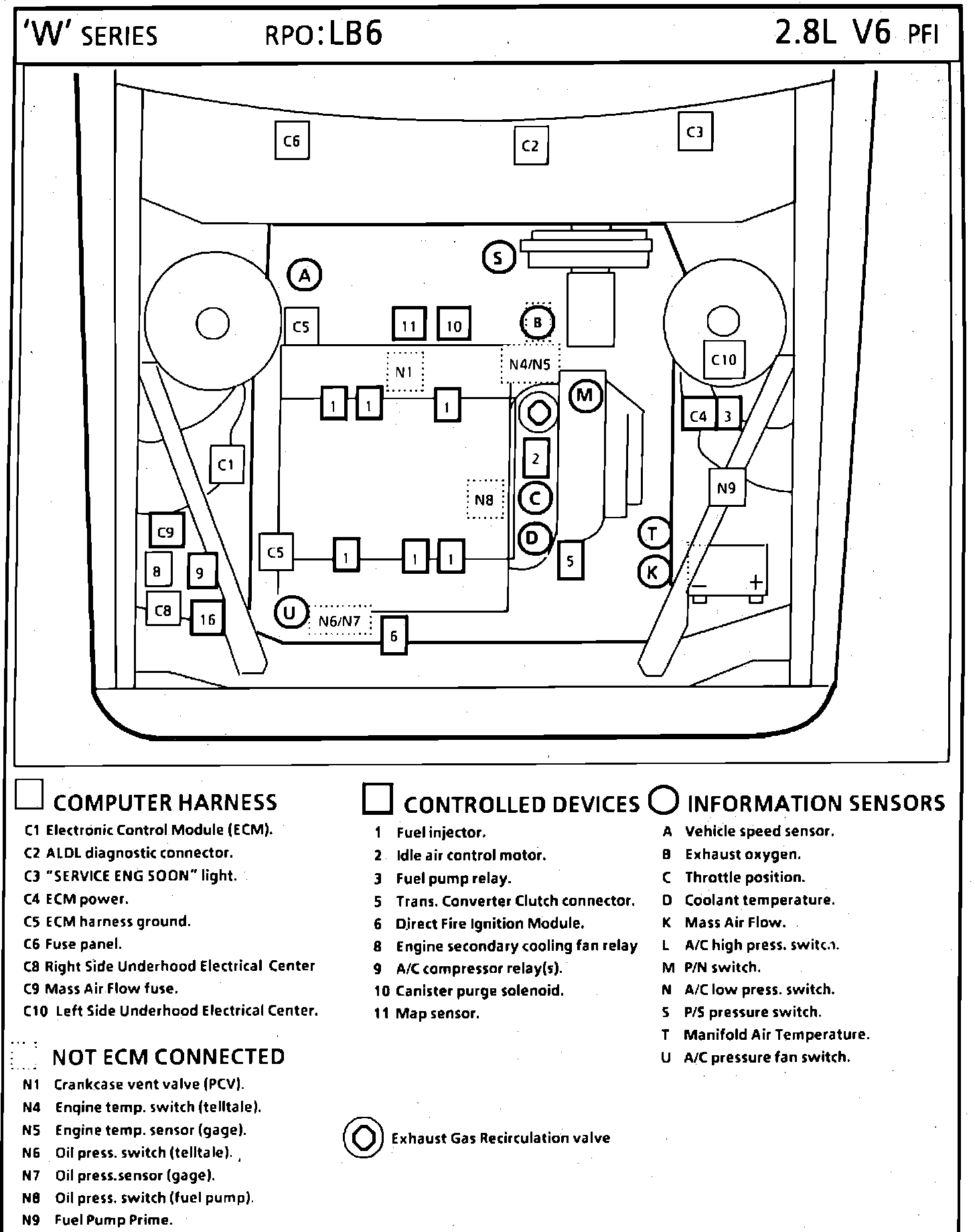

Direct Fire Ignition Module
Underhood Components.:
LH Front Center Of Engine Compartment
Applicable to: Regal
