Compressor Replacement

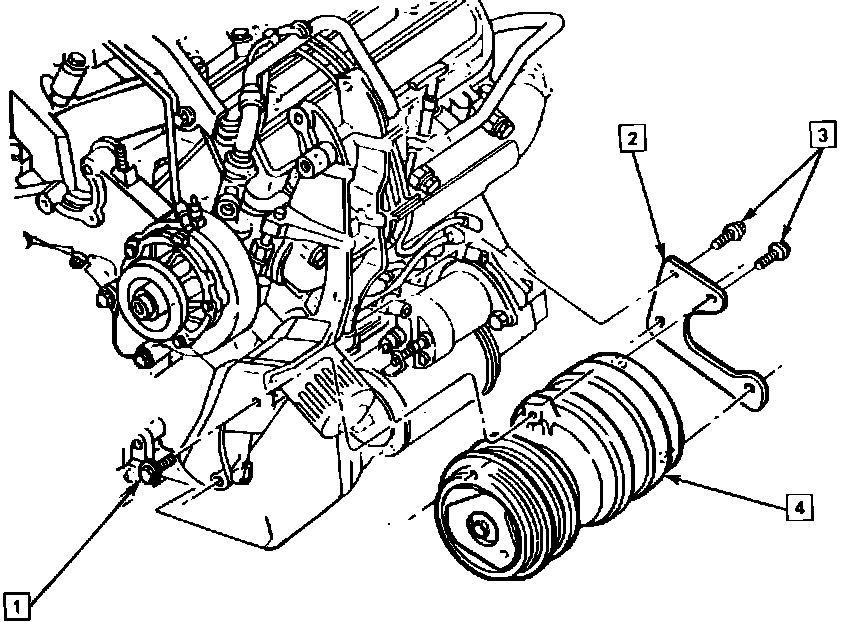

Fig. 16 Compressor mounting. Cutlass Supreme, Grand Prix & Regal:

CUTLASS SUPREME, GRAND PRIX & REGAL

1. Disconnect battery ground cable and discharge A/C system.
2. Remove drive belt from compressor.
3. Remove radiator overflow reservoir.
4. Disconnect A/C hose from compressor.
5. Disconnect compressor electrical connectors.
6. Remove rear mounting bracket screws and front mounting bracket screws, then the compressor, Fig. 16.
