Electronic Control Module (ECM)

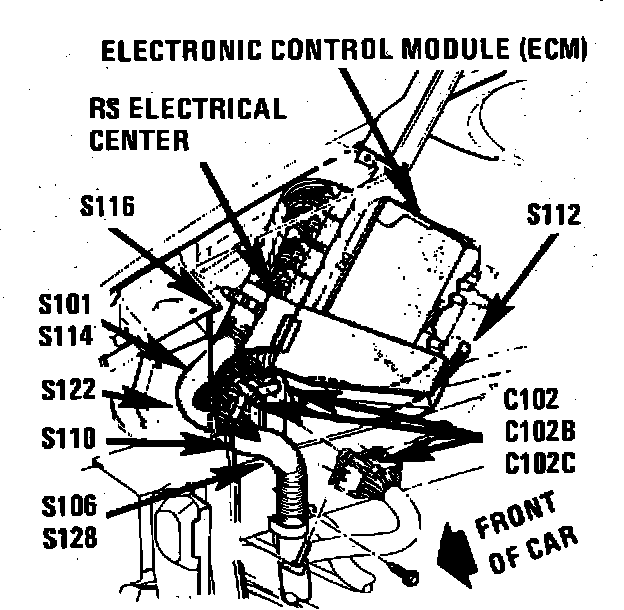

Electronic Control Module.:





Engine Compartment, Front Of RH Strut Tower

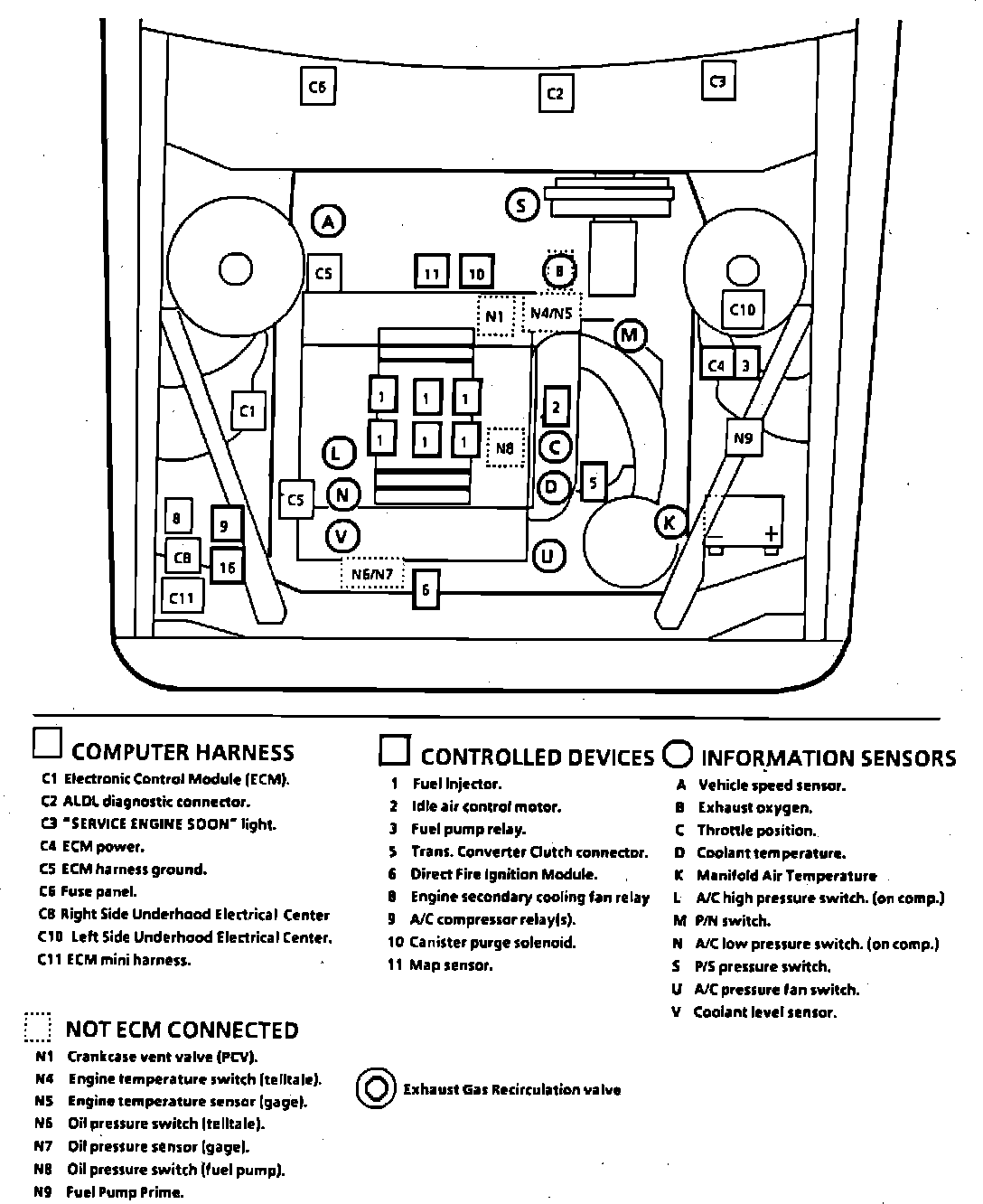

Engine Compartment Components.:





On RH Inner Wheelwell

Applicable to: 1989 Cutlass Supreme & Regal w/V6-173/2.8L & V6-192/3.1L PFI
