Passive Restraint Control Module

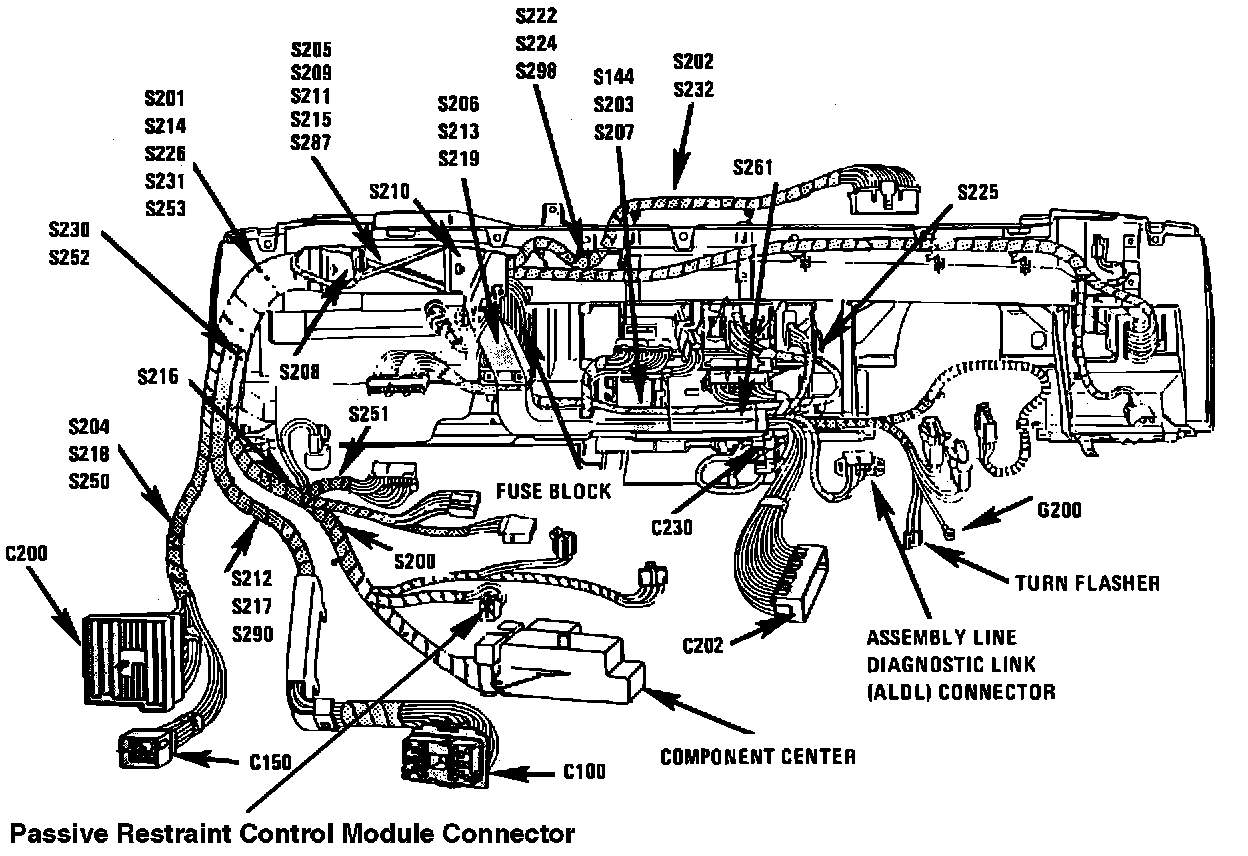

The passive restraint control module is located behind the RH side of instrument panel.
