Wheel Alignment - Specifications

9225buick02

Bulletin: 90-3-7

Date: Jan., '90

Ref. No.: 90-048-3

Corp. Ref. No.: 993101


SUBJECT:
WHEEL ALIGNMENT SPECIFICATIONS

MODELS AFFECTED:
ALL 1990 MODELS

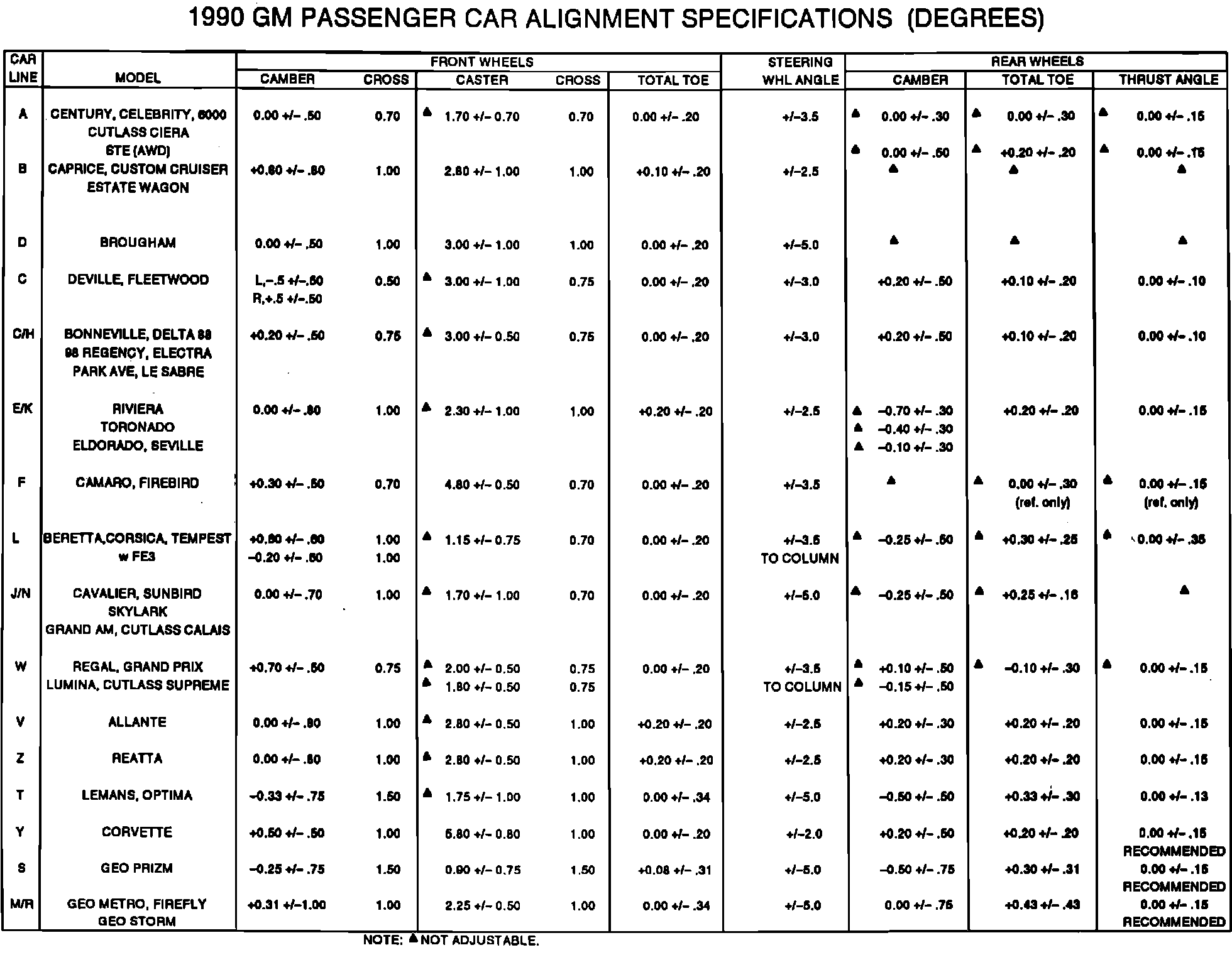

Illustrated for your information are the 1990 model wheel alignment specifications for all GM passenger cars.
