Door Latch Module Assembly: Installation
NOTE:
Attach the upper most forward rivet (72) first.

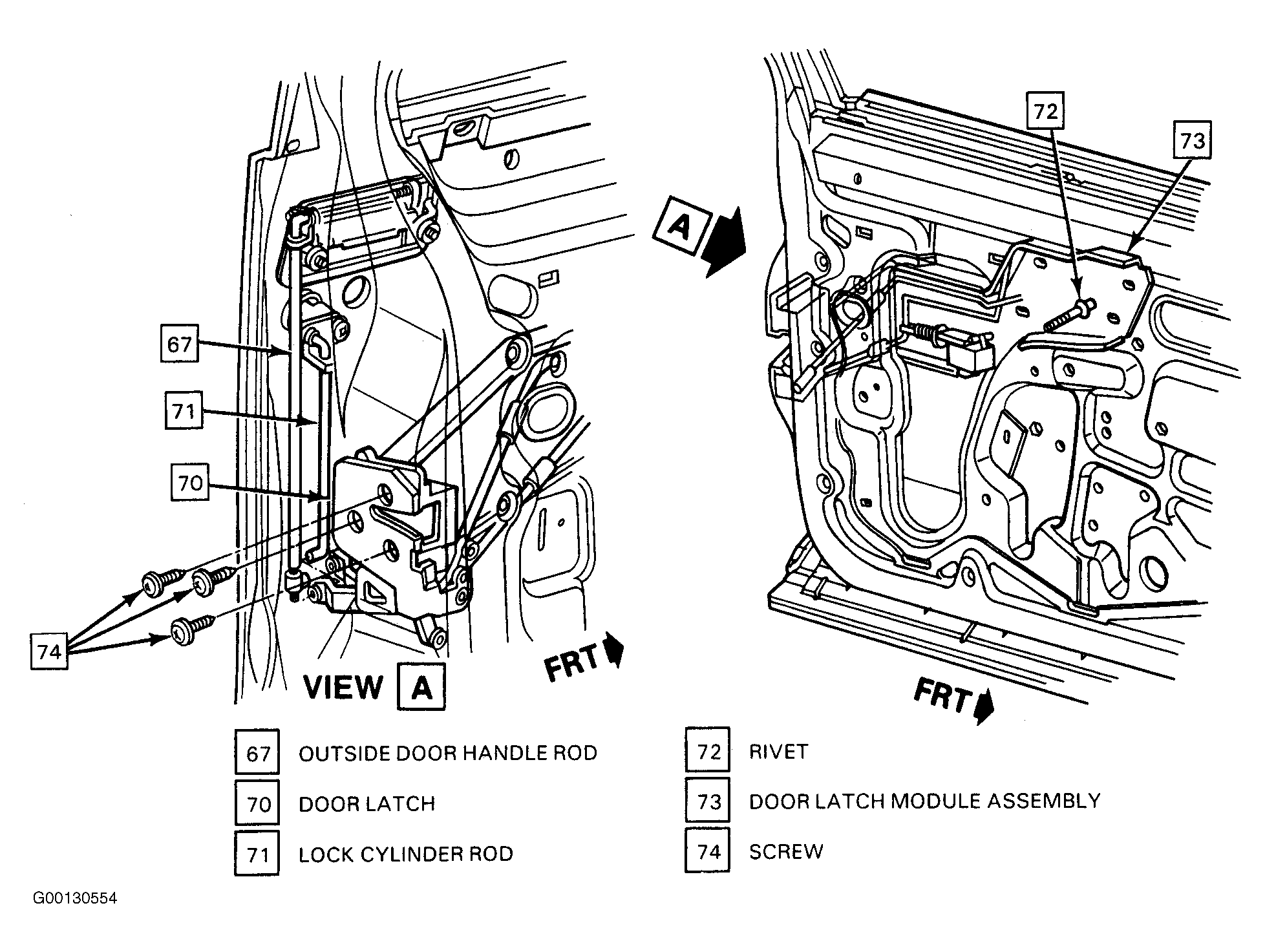

- Install door latch module assembly (73). See Fig 1 .
- Install screws (74).
- Install rivets (72).
- Connect wire harness to lock actuator connector, if equipped.
- Install outside door handle rod (67) to door latch (70).
- Install lock cylinder rod (71) to door latch (70).
- Install rear glass run channel retainer and screw.
- Reposition water deflector.
- Install door trim panel. See TRIM PANEL .
