Test C: Transmitter/Module Isolation

To perform Transmitter/Module Isolation testing, refer to illustration. See Fig 1 .

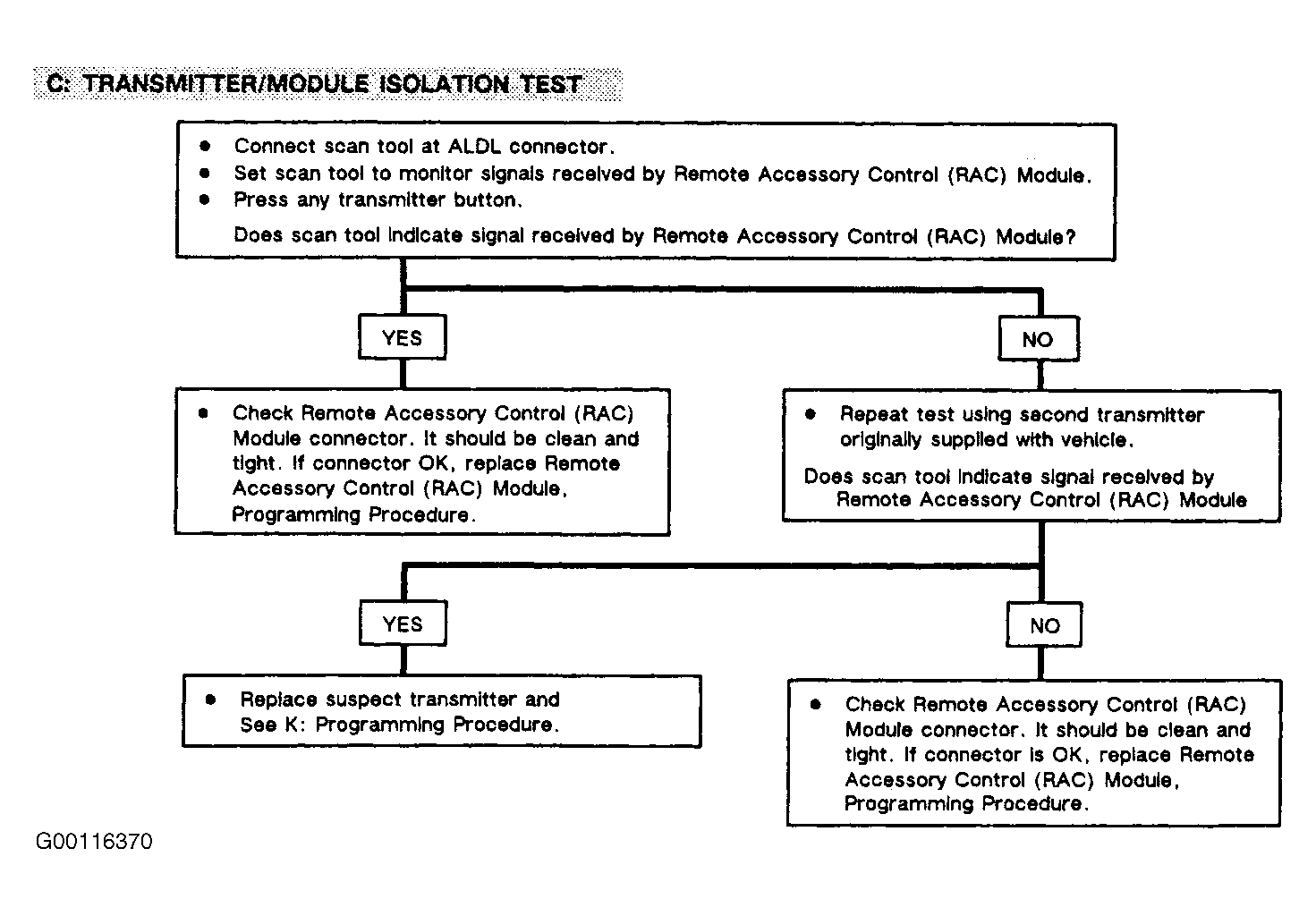

Fig 1: Testing Transmitter/Module Isolation

Courtesy of GENERAL MOTORS CORP.
