Test D: Remote Keyless Entry Lock/Unlock Isolation

To perform Remote Keyless Entry Lock/Unlock Isolation testing, refer to illustration. See Fig 1 .

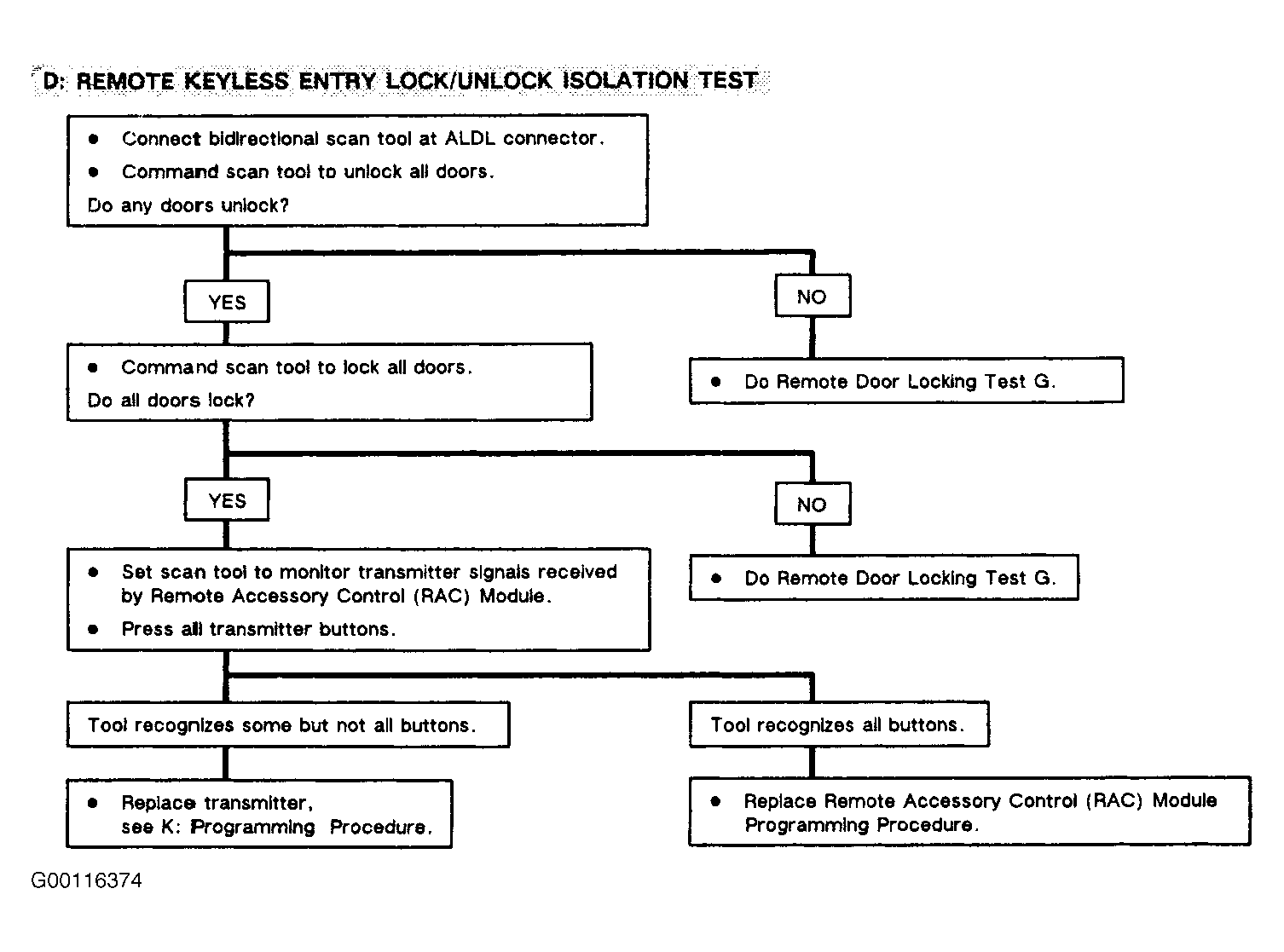

Fig 1: Testing Remote Keyless Entry Lock/Unlock Isolation

Courtesy of GENERAL MOTORS CORP.
