Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

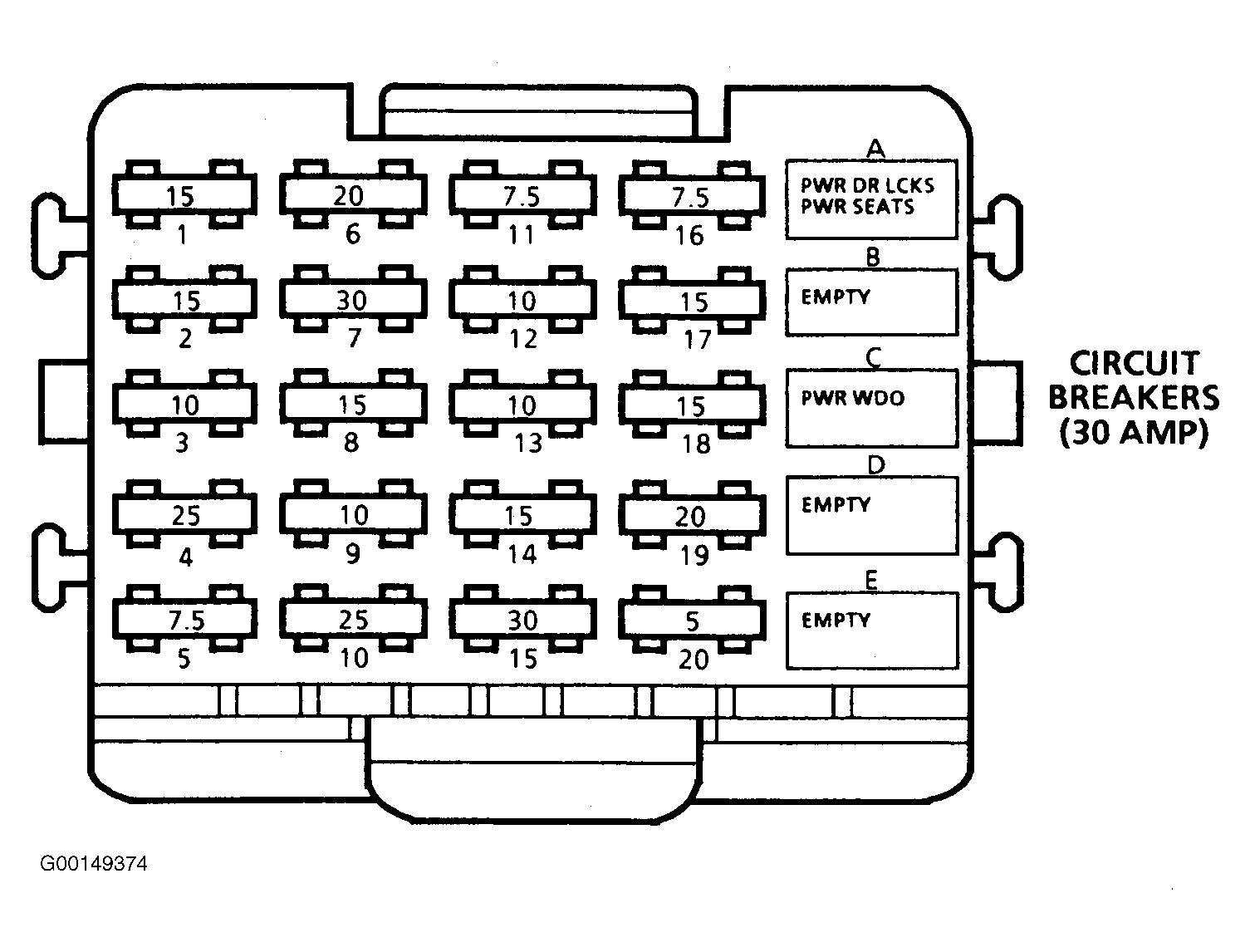

| Fuse Block | Mounted To LH I/P, Access With LH Front Door Open. See Fig 1 . |

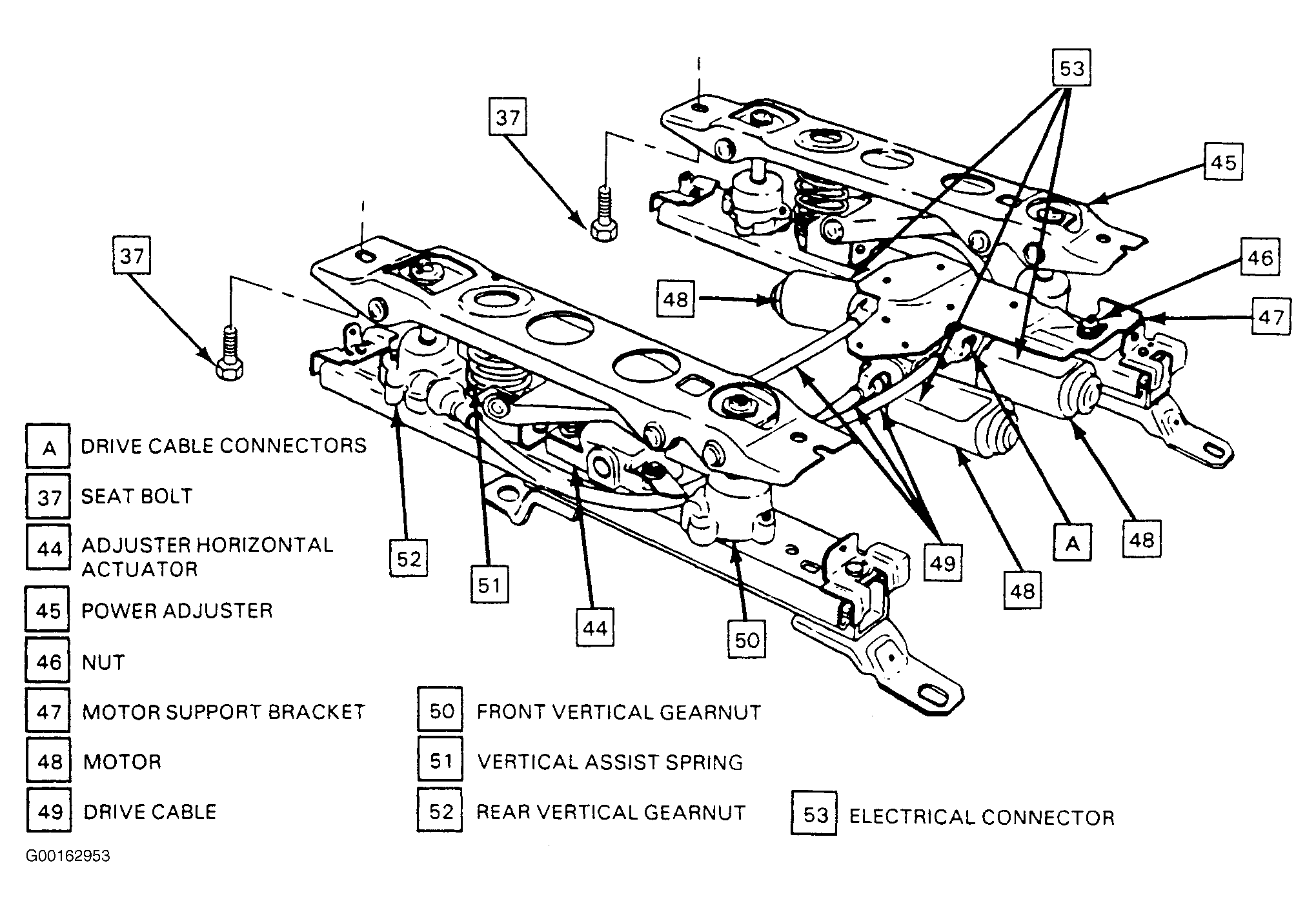

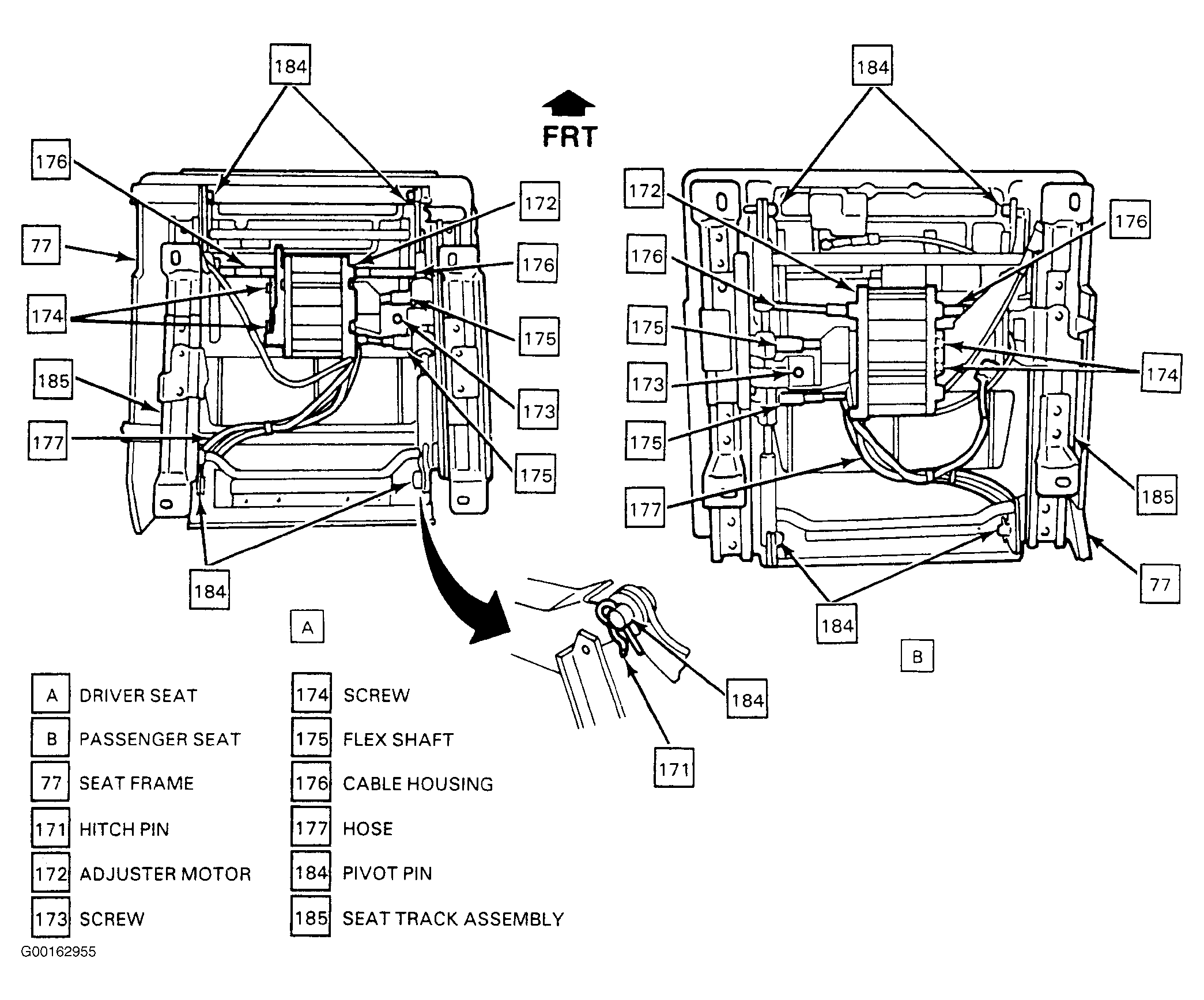

| LH Forward/Back Motor | Under LH Front Seat. See Figure & Figure . |
| LH Front Height Seat Motor | Under LH Front Seat. See Figure & Figure . |
| LH Power Seat Switch | LH Front Door Armrest |
| LH Rear Height Seat Motor | Under LH Front Seat. See Figure & Figure . |
| RH Forward/Back Motor | Under RH Front Seat. See Figure & Figure . |
| RH Front Height Seat Motor | Under RH Front Seat. See Figure & Figure . |
| RH Power Seat Switch | RH Front Door Armrest |
| RH Rear Height Seat Motor | Under RH Front Seat. See Figure & Figure . |
| C300 (6 Cavities) | Cross Car Harness To LH Power Seat Motor Harness, Under LH Front Seat |
| C301 (6 Cavities) | Cross Car Harness To RH Power Seat Motor Harness, Under RH Front Seat |

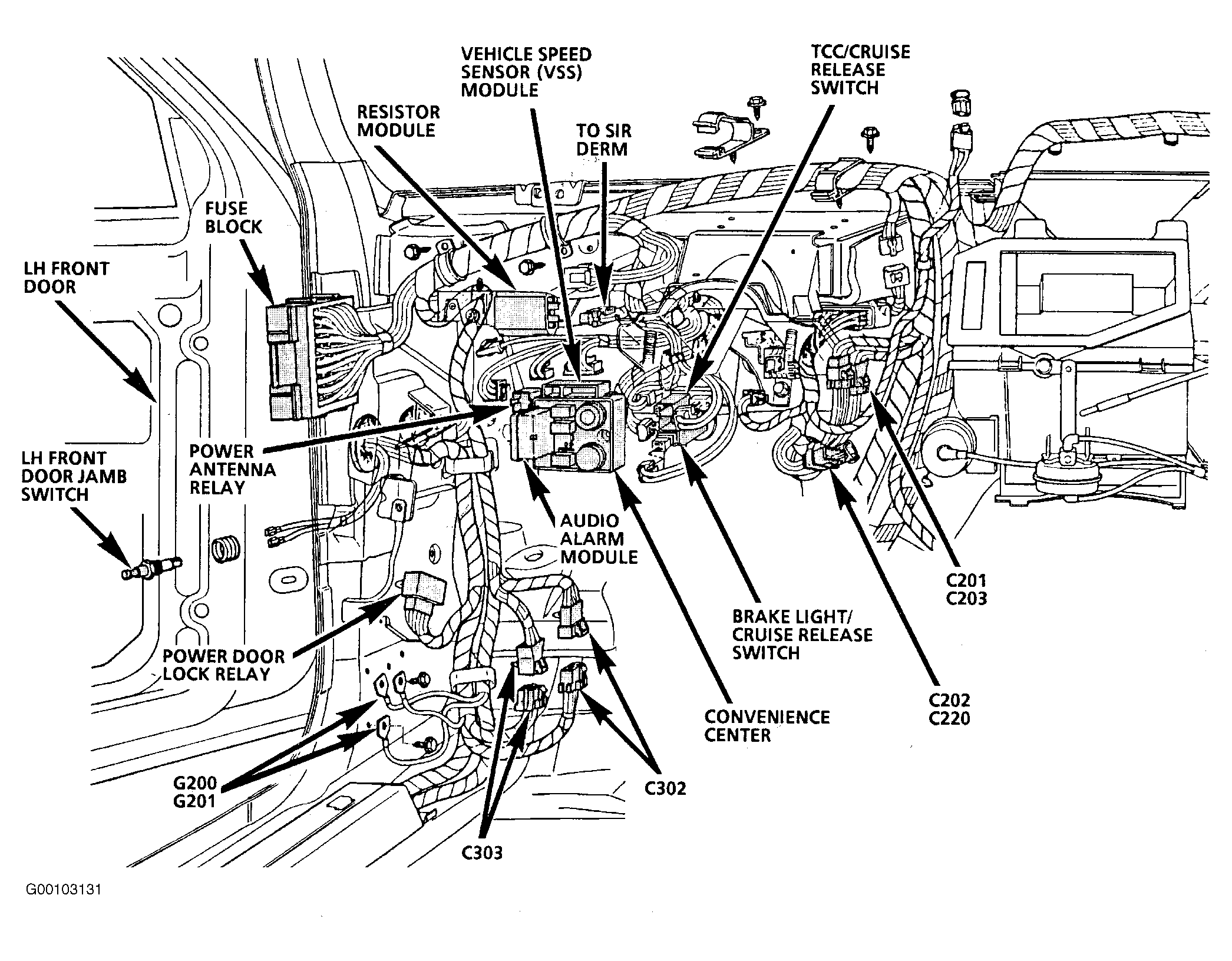

| C303 (6 Cavities) | Cross Car Harness To Body Harness, LH Kickpad At Base Of LH A Pillar. See Fig 1 . |
| G200 | Base Of LH A Pillar, Behind LH Kickpad. See Fig 1 . |

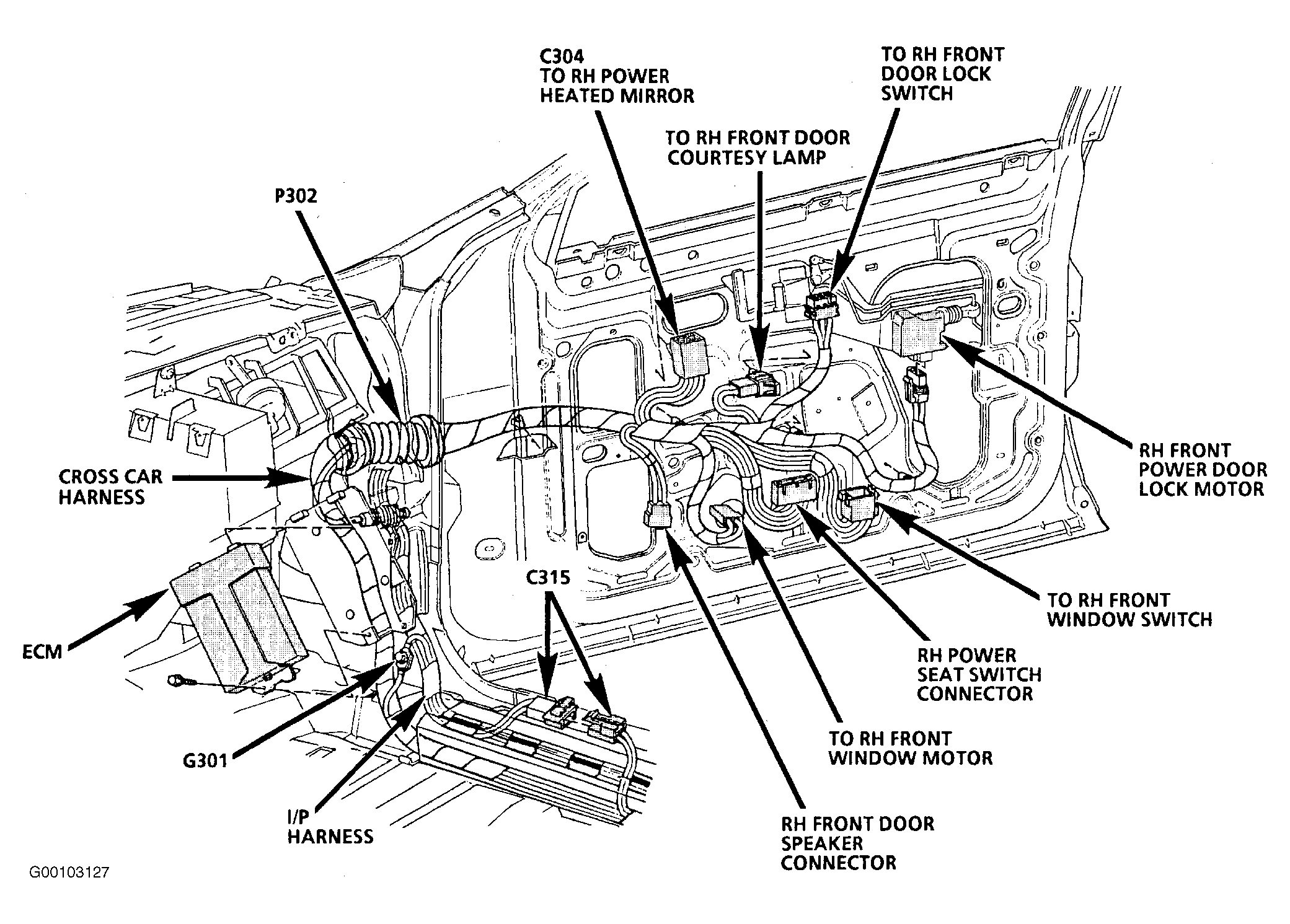

| G301 | Behind RH Kickpad, At Base Of RH A Pillar. See Fig 3 . |
| P302 | Between RH Front Door & A Pillar. See Fig 3 . |
| P303 | Between LH Front Door & A Pillar |
| S219 (Sedan) | Body Harness, Approx 26 cm From C101 Breakout |
| S219 (Wagon) | Body Harness, Approx. 4 cm From C101 Breakout |
| S300 | Cross Car Harness, Approx. 12 cm From C302 Breakout |
| S304 | Cross Car Harness, Approx. 8 cm From Power Door Lock Relay Connector Breakout |
