Power Window Switch: Installation

  1. Install switch to armrest switch plate (3). See Fig 1 . Install screws (driver's side of vehicle) or snap to secure (passenger's side of vehicle).
  2. Install wiring harness connector to switch.
  3. Snap armrest switch plate in to secure.
  4. Install negative battery cable.
Fig 1: Removing Armrest Switch Plate
G00135317Courtesy of GENERAL MOTORS CORP.


  1. Connect electrical connection.
  2. Install power window switch (125) by engaging component clip to bottom of door trim panel cutout on each side. See Fig 1 .

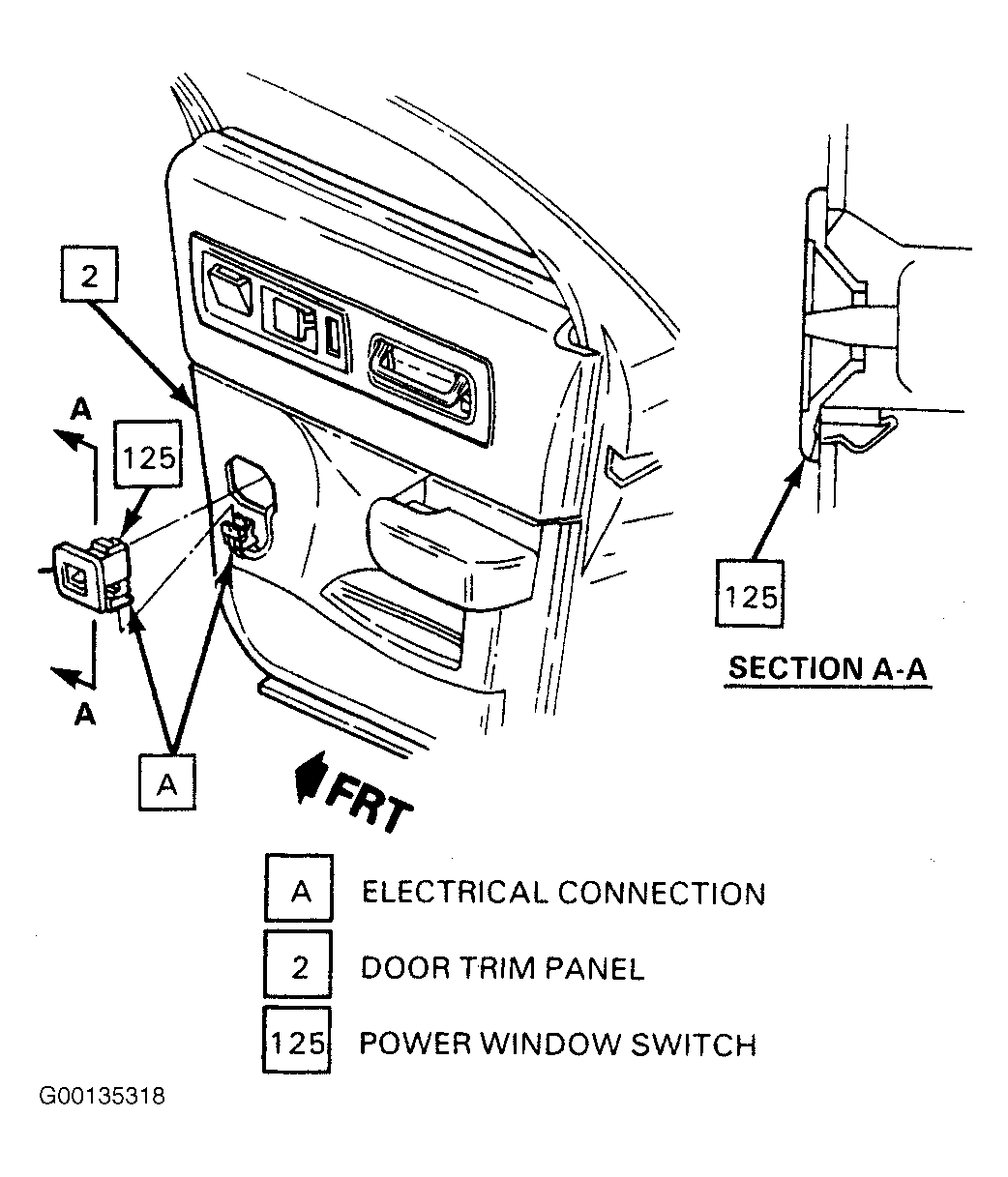

Fig 1: Removing & Installing Rear Power Window Switch
G00135318Courtesy of GENERAL MOTORS CORP.
