Water Deflector: Installation

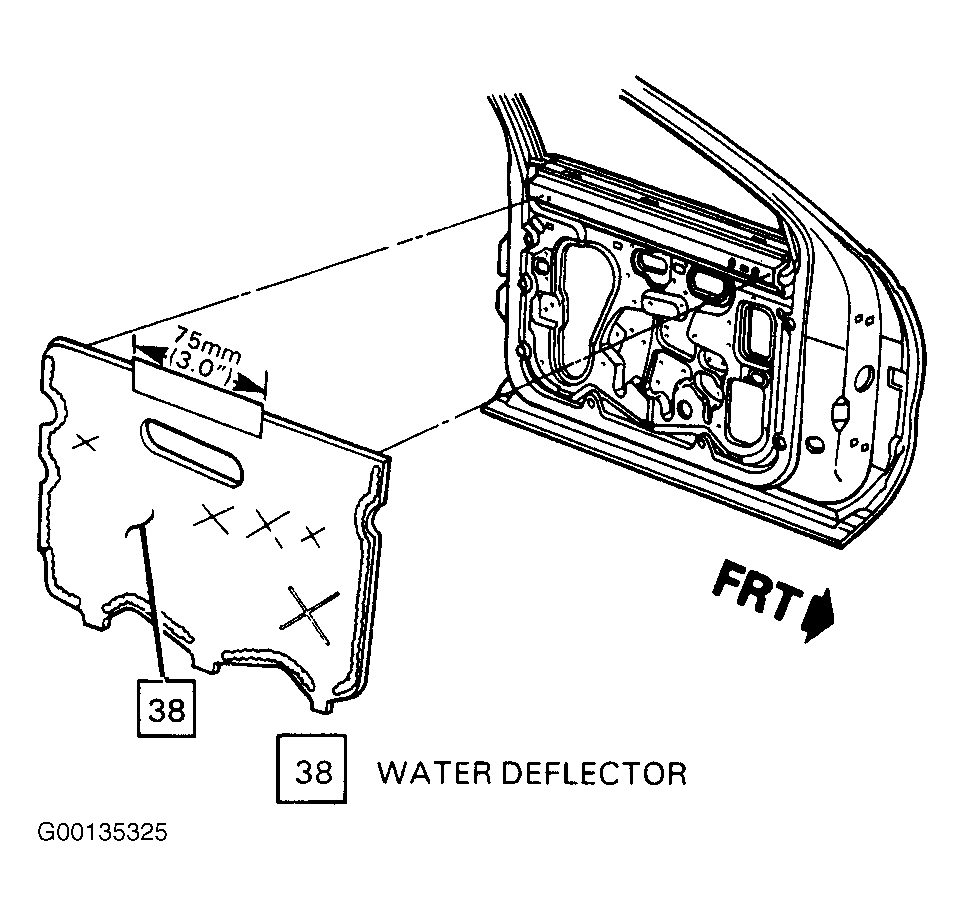

- Install water deflector (38). See Fig 1
.
- Pull electrical connectors through their respective holes and slots in water deflector (38).
- Apply string sealer in a continuous bead that will guide water to drain slots.
- Insert bottom edge of water deflector (38) into retaining slots.
- Press water deflector (38) into inner panel to ensure a good bond.
- Apply a 3" (75 mm) strip of tape to secure top of water deflector (38) to door inner panel.
- Install armrest plate hanger (11). See Figure
.
- Install radio speaker.
- Install door trim panel.
