Wiring Diagrams

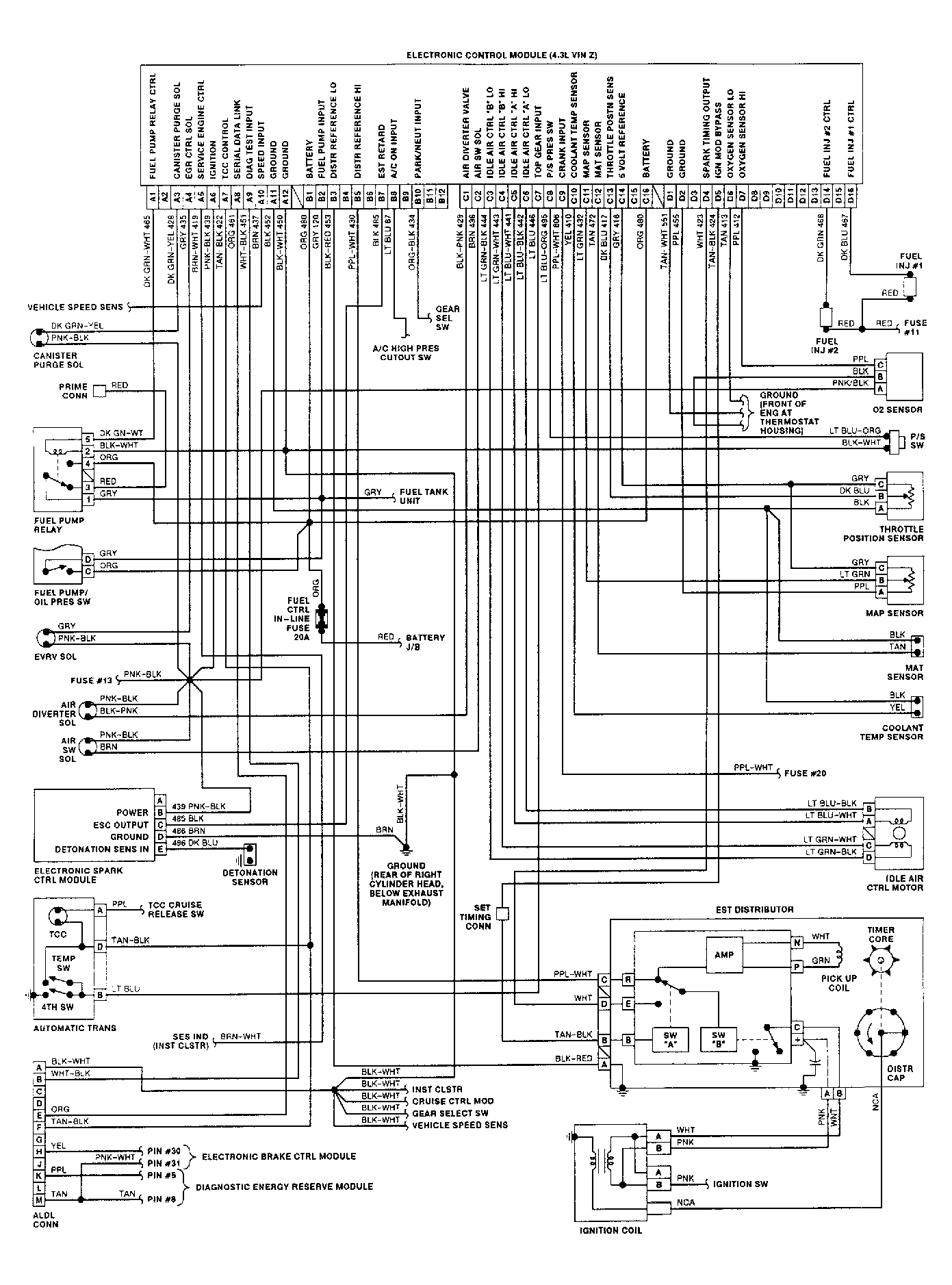

Fig 1: ECM Wiring Diagram, 4.3L VIN Z

G92I05879

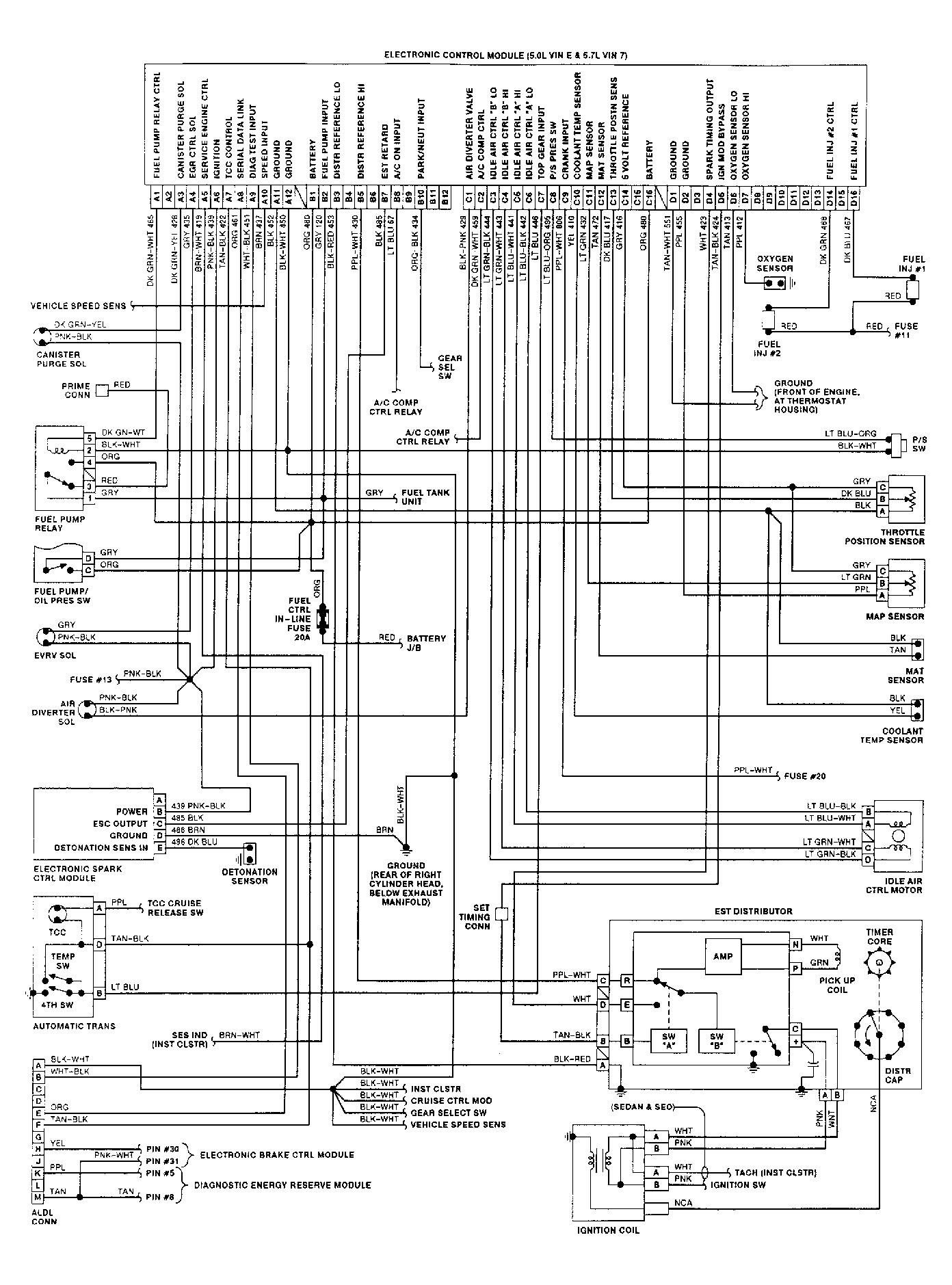

Fig 2: ECM Wiring Diagram, 5.0L VIN E & 5.7L VIN 7

G92B05885
