Home >> Buick >> 1992 >> Roadmaster V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry >> Keyless Entry Programming Connector >> Wagon

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Wagon

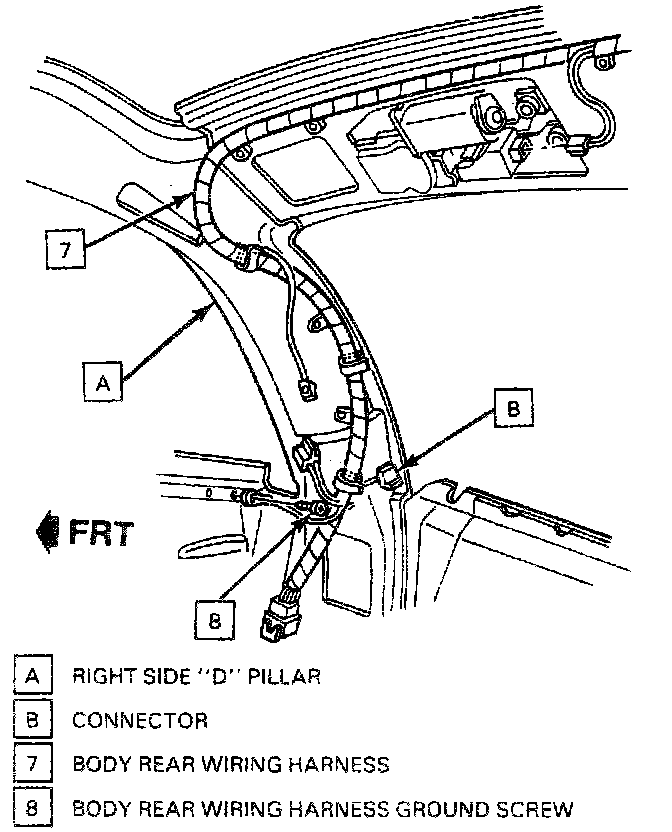

Programming Receiver Connector - Wagon (ground B To 8):
