Power Window Control Module

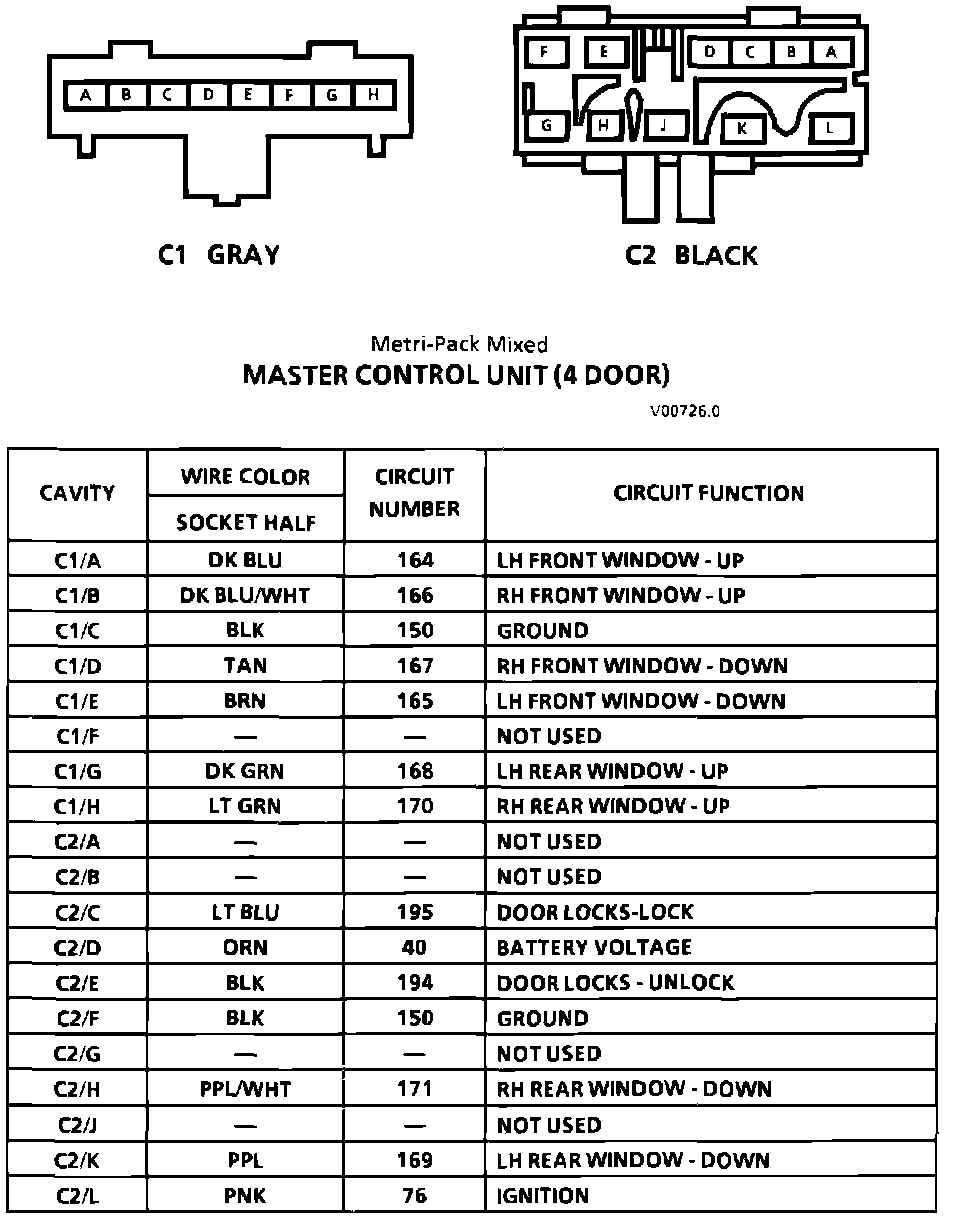

Master Control Unit Connector:

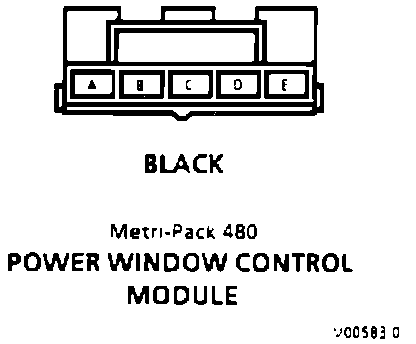

Power Window Control Module Connector:

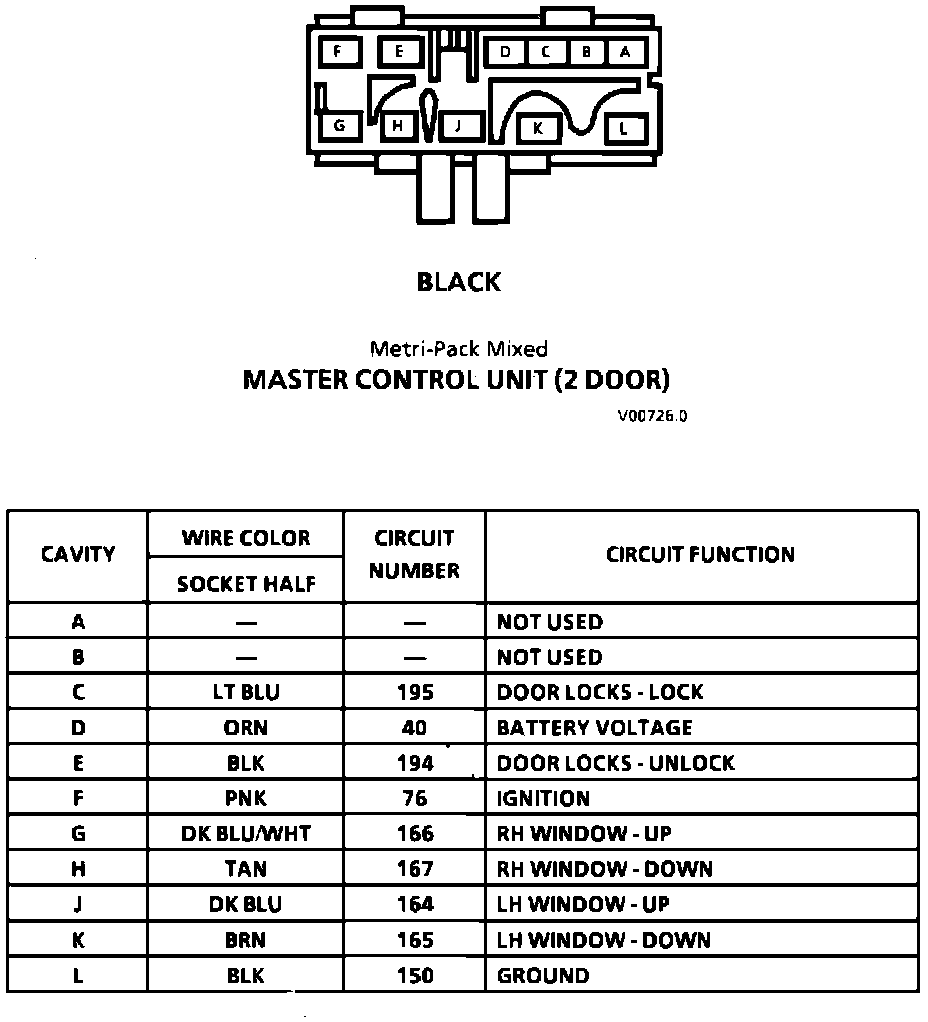

Master Control Unit Connector:

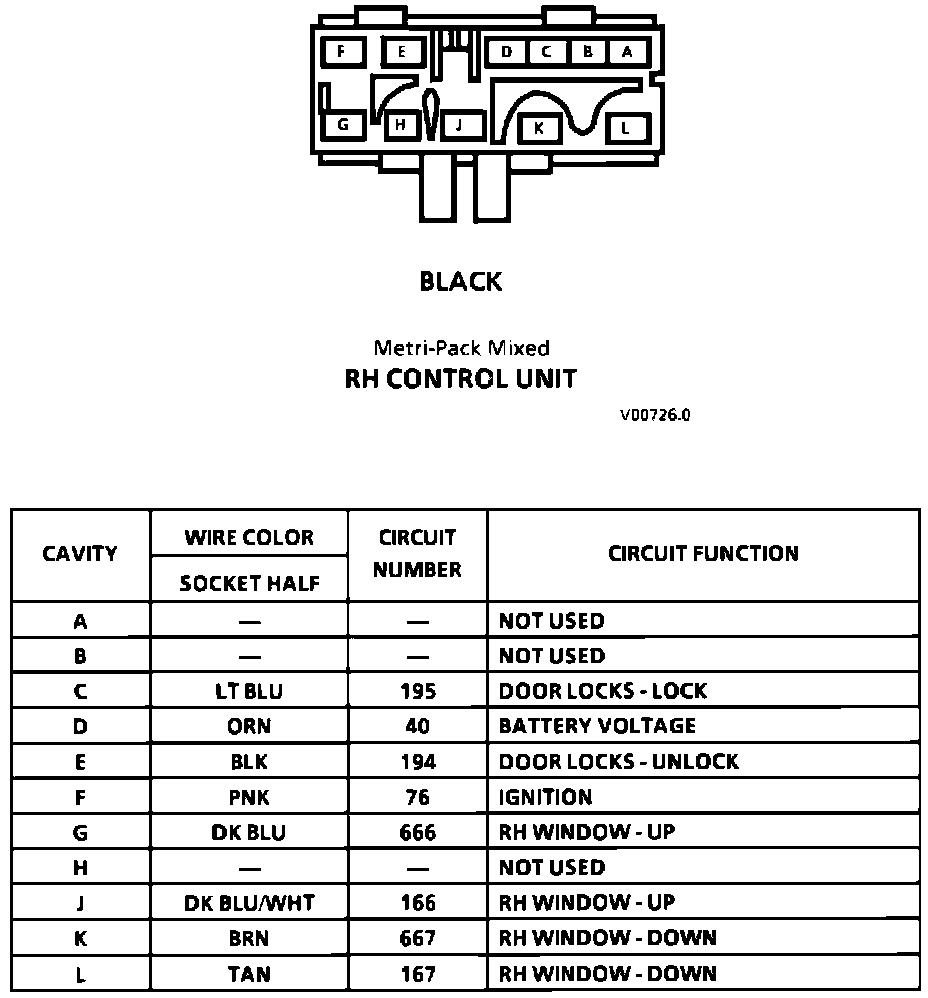

RH Control Unit Connector:
