Transmission Position Sensor/Switch: Locations

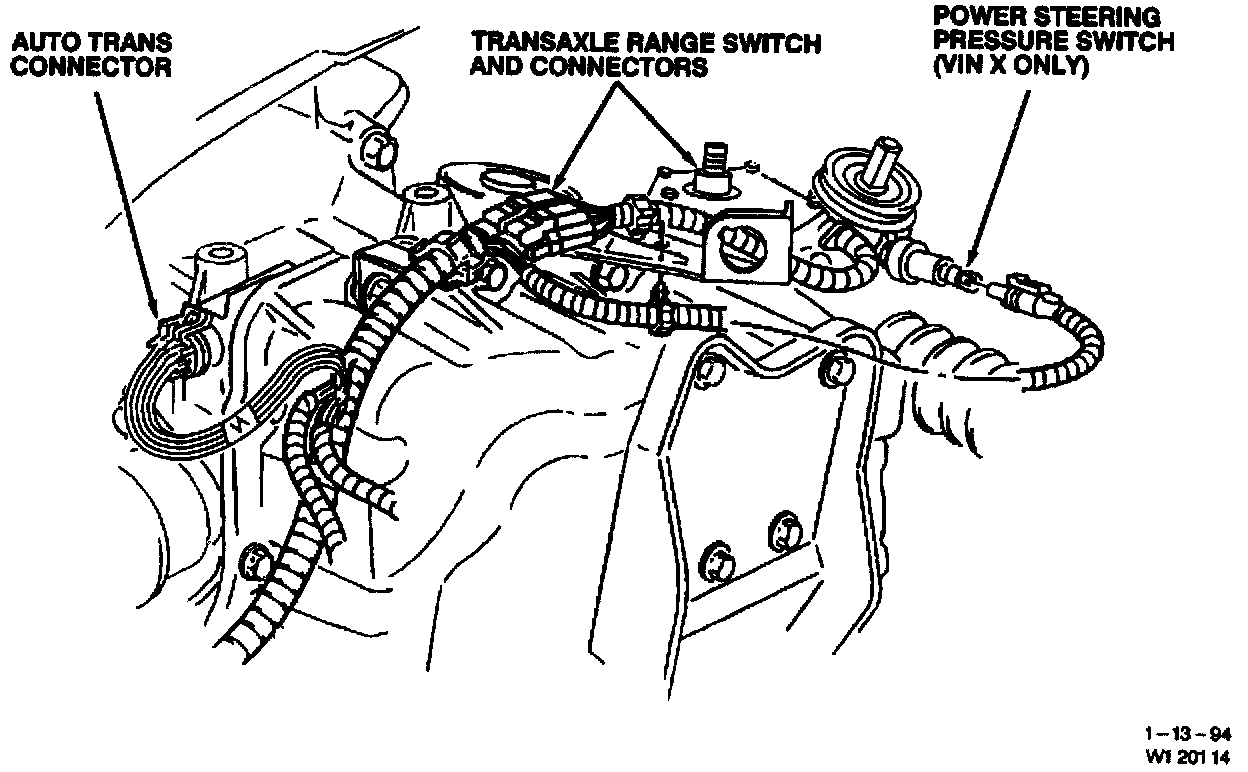

Lower LH Side Of VIN X Engine Compartment (VIN L, M Similar):







The Transaxle Range Switch is located left of engine on transaxle.
