Remote Control Door Lock Assembly Receiver

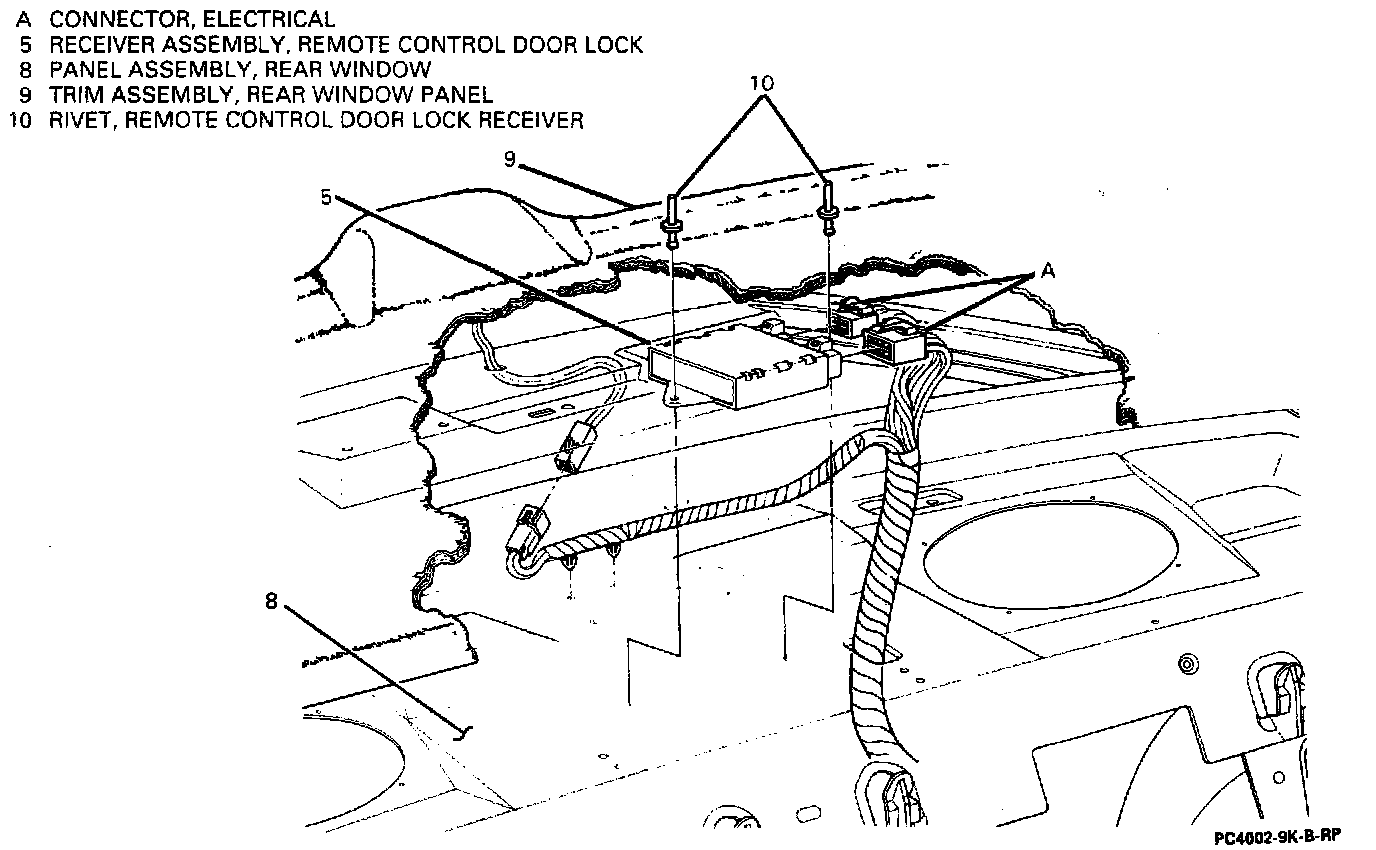

Remote Control Door Lock Receiver Assembly:

Remove or Disconnect

1. Rear window panel trim assembly.
2. Electrical connectors from receiver assembly (5).
3. Rivets (10) attaching receiver assembly (5) to rear window panel assembly (8).
4. Receiver assembly (5).

Install or Connect

1. Receiver assembly (5).
2. Rivets (10).
3. If programming the system is necessary.
4. Electrical connector to receiver assembly (5).
5. Rear window panel trim assembly.
