Electronic Spark Control Module

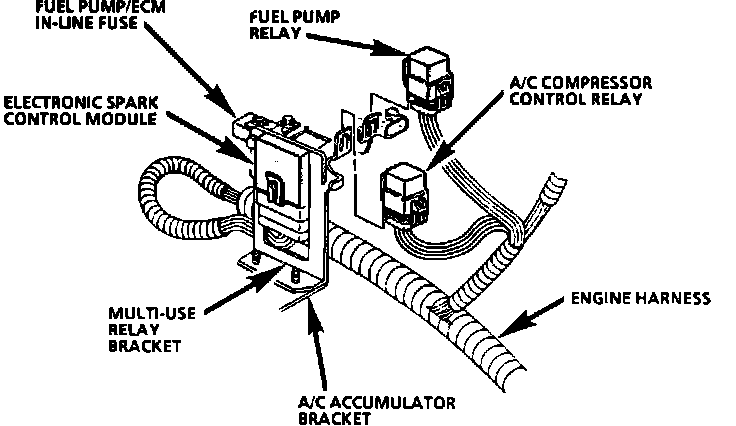

Engine Component Location.:




Attached To Multi-Use Relay Bracket, Rear RH Side Of Engine Compartment

Applicable to: Caprice, Custom Cruiser & Roadmaster w/5.0L/V8-305 & 5.7L/V8-350

RH Rear Engine Compartment.:




Attached To Multi-Use Relay Bracket, Rear RH Side Of Engine Compartment

Applicable to: Caprice, Custom Cruiser & Roadmaster
