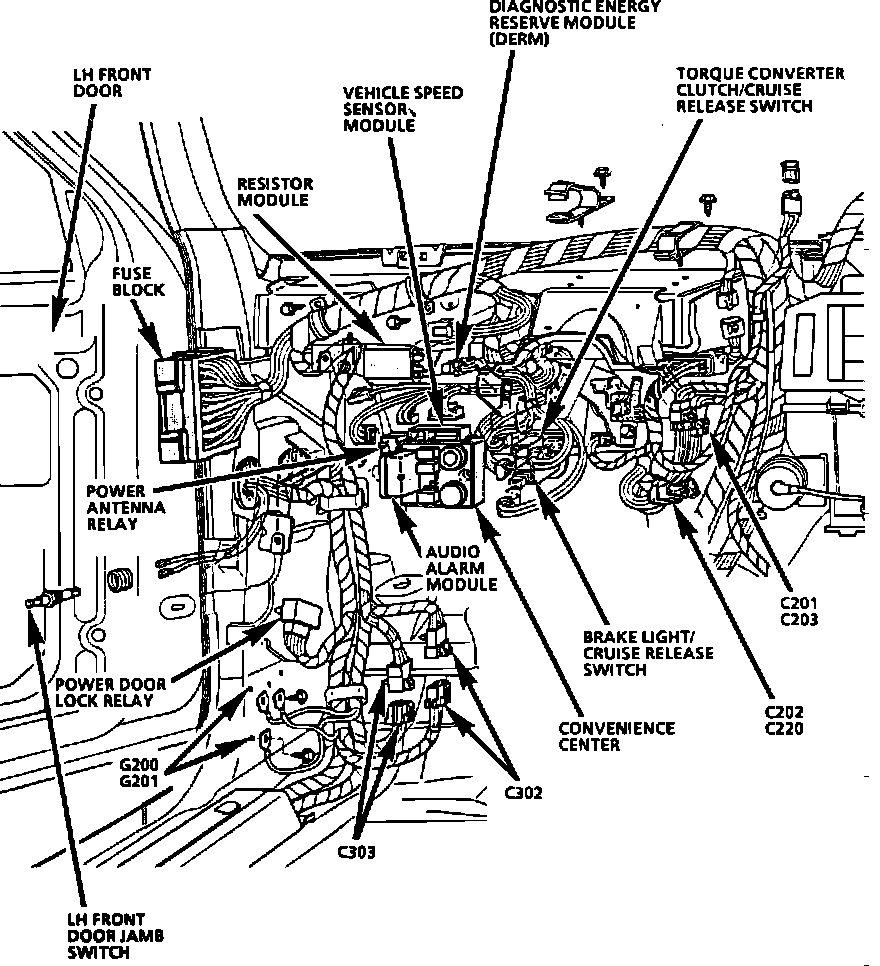

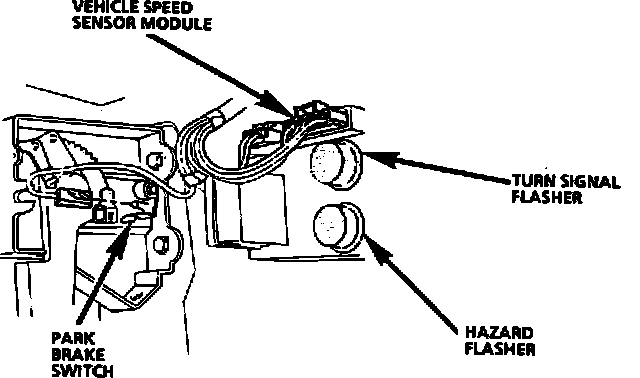

Vehicle Speed Sensor Module

Engine Component Location.:

LH Side Of I/P, At Top Of Convenience Center

Applicable to: Caprice, Custom Cruiser & Roadmaster w/5.0L/V8-305 & 5.7L/V8-350

Engine Component Location.:

LH Side Of I/P, At Top Of Convenience Center

Applicable to: 1992 Caprice w/4.3L/V6-262

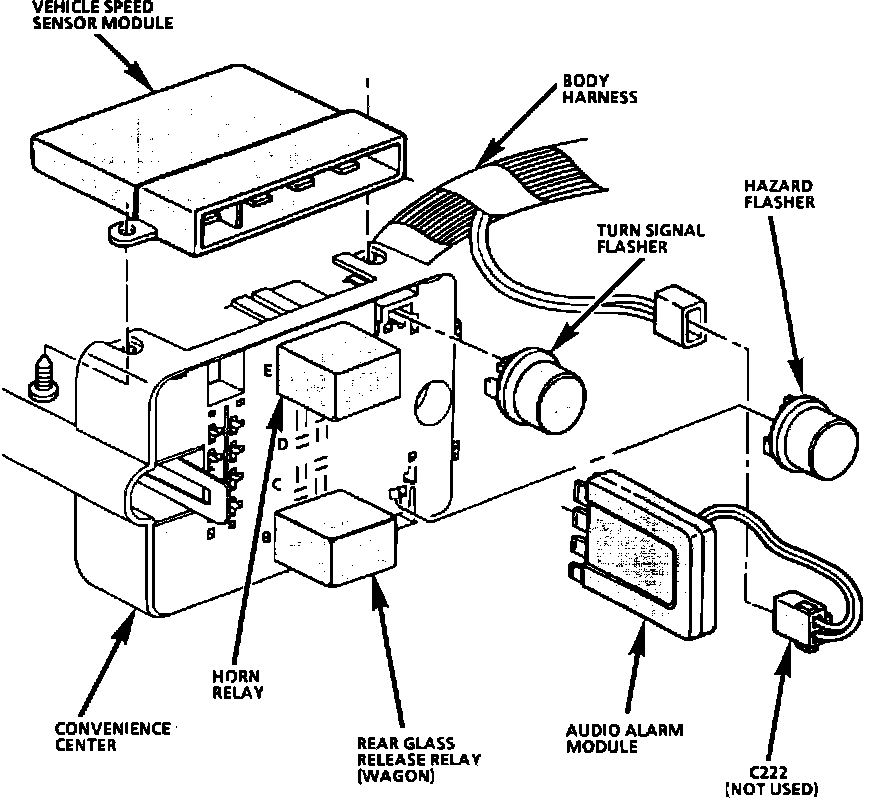

Convenience Center.:

LH Side Of I/P:

LH Kick Panel.:

LH Side Of I/P, At Top Of Convenience Center

Applicable to: Caprice, Custom Cruiser & Roadmaster
