Engine Control Module

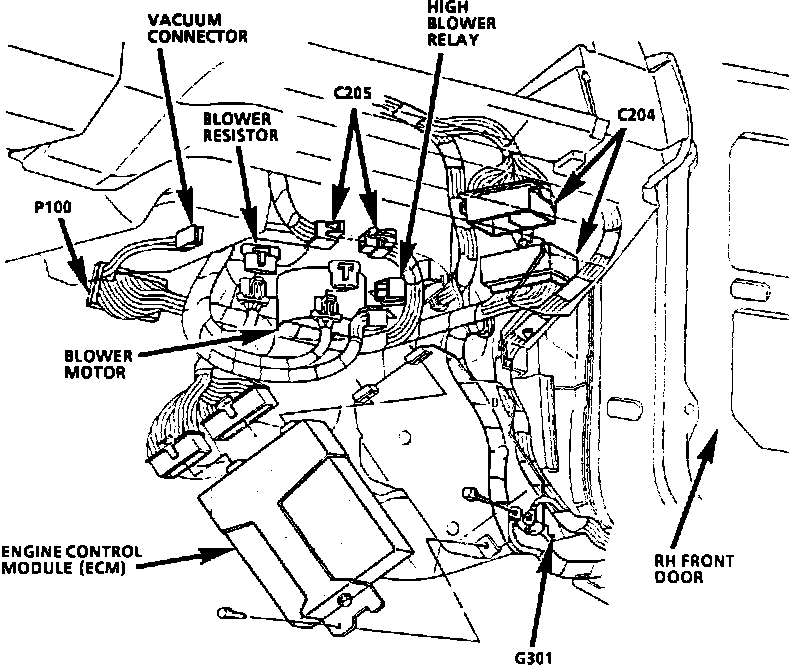

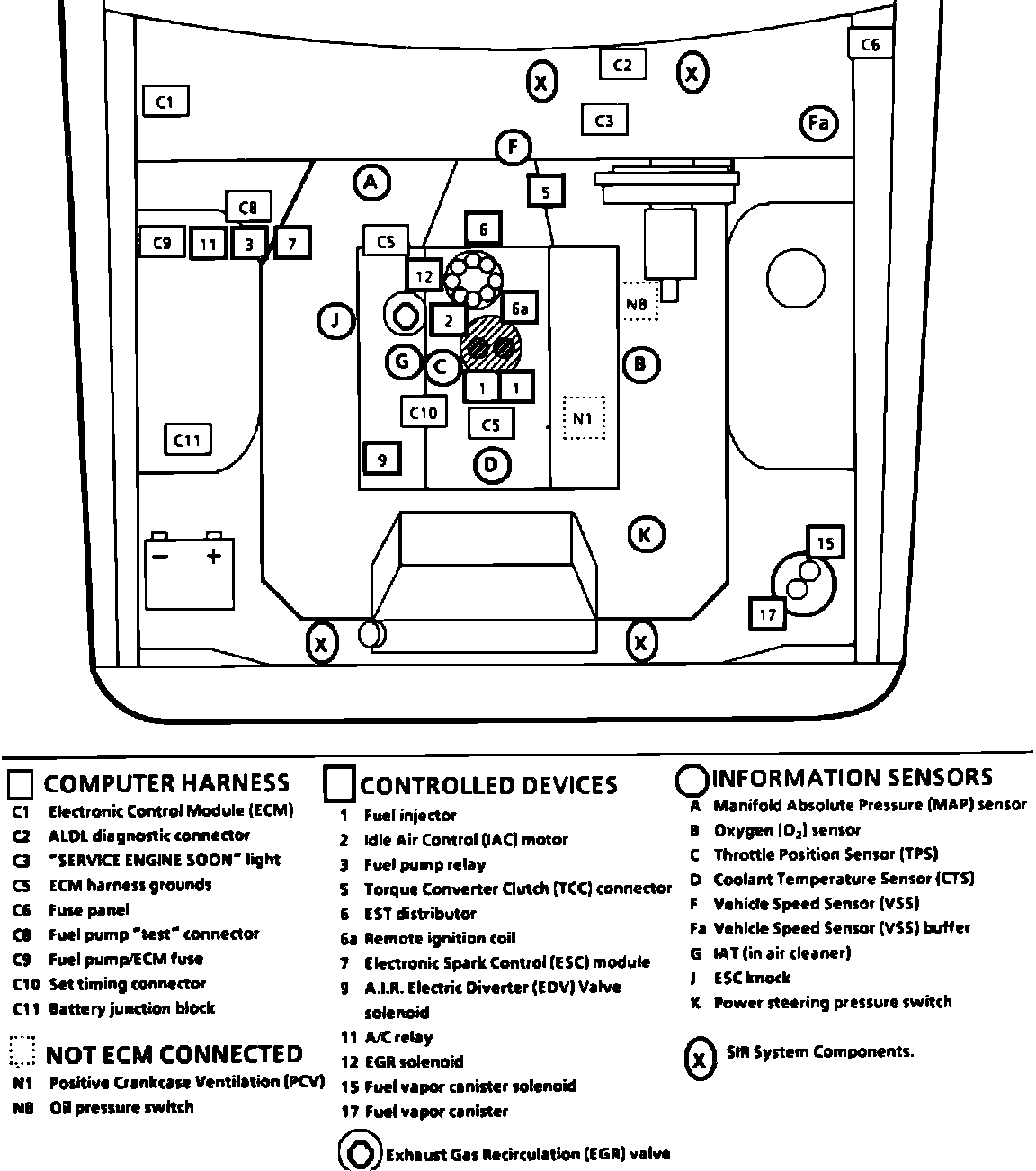

Engine Component Location.:




Attached To Base Of RH ``A'' Pillar

Applicable to: Caprice, Custom Cruiser & Roadmaster w/5.0L/V8-305 & 5.7L/V8-350

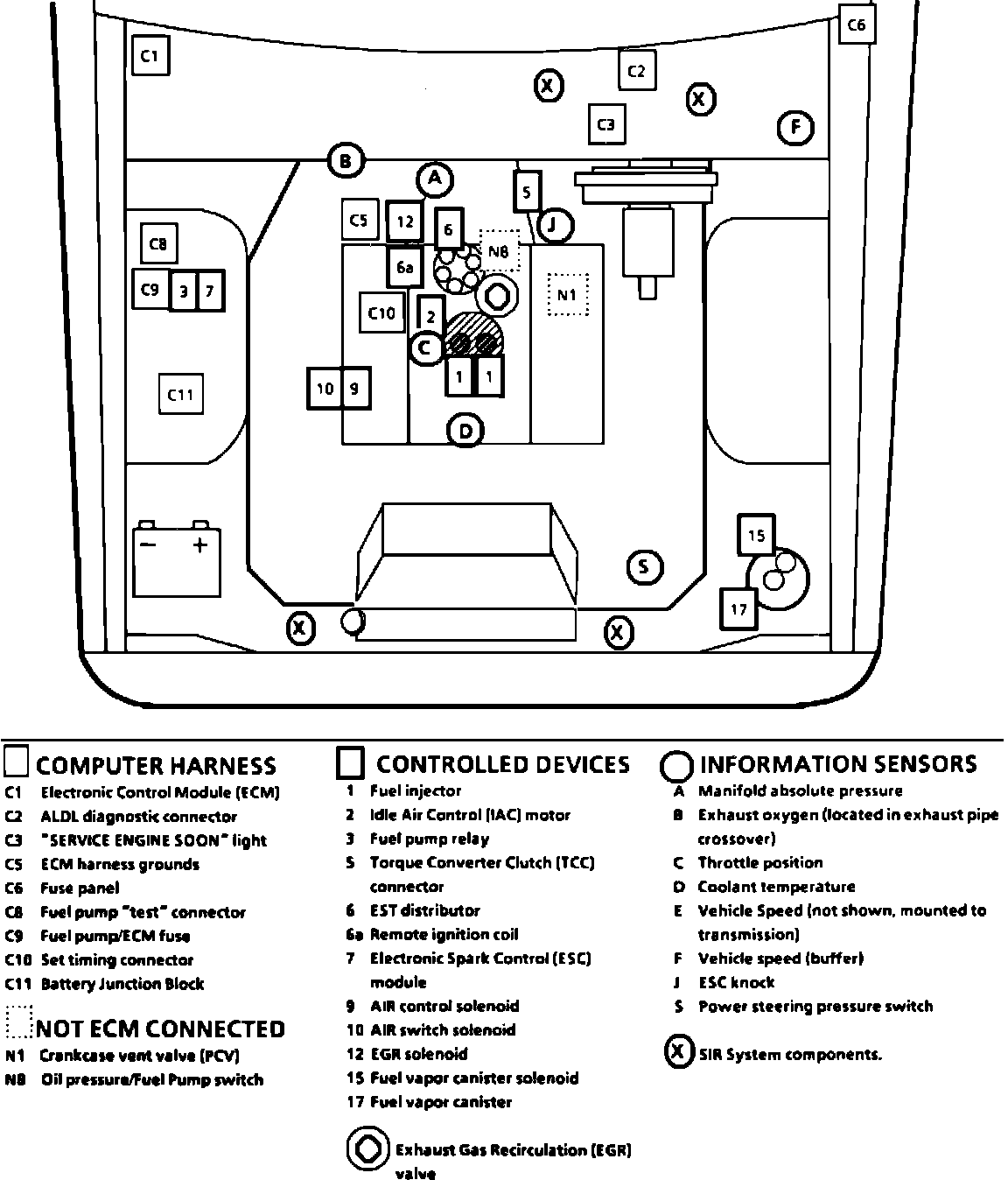

Engine Component Location.:




Attached To Base Of RH ``A'' Pillar

Applicable to: 1992 Caprice w/4.3L/V6-262

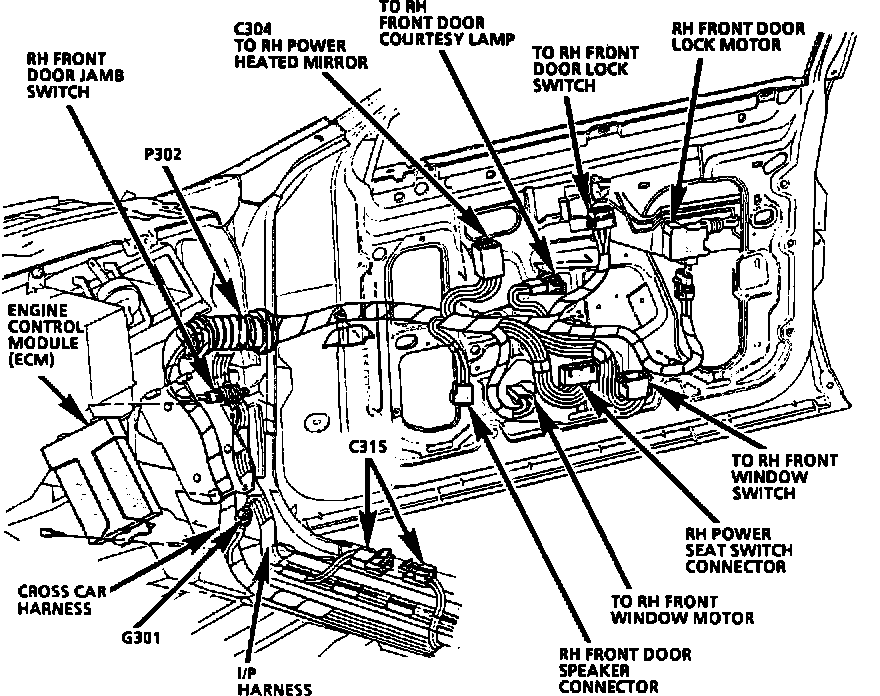

RH Front Door & ``A'' Pillar.:




RH Lower I/P.:




Attached To Base Of RH ``A'' Pillar

Applicable to: Caprice, Custom Cruiser & Roadmaster
