Distributor Reference Signal

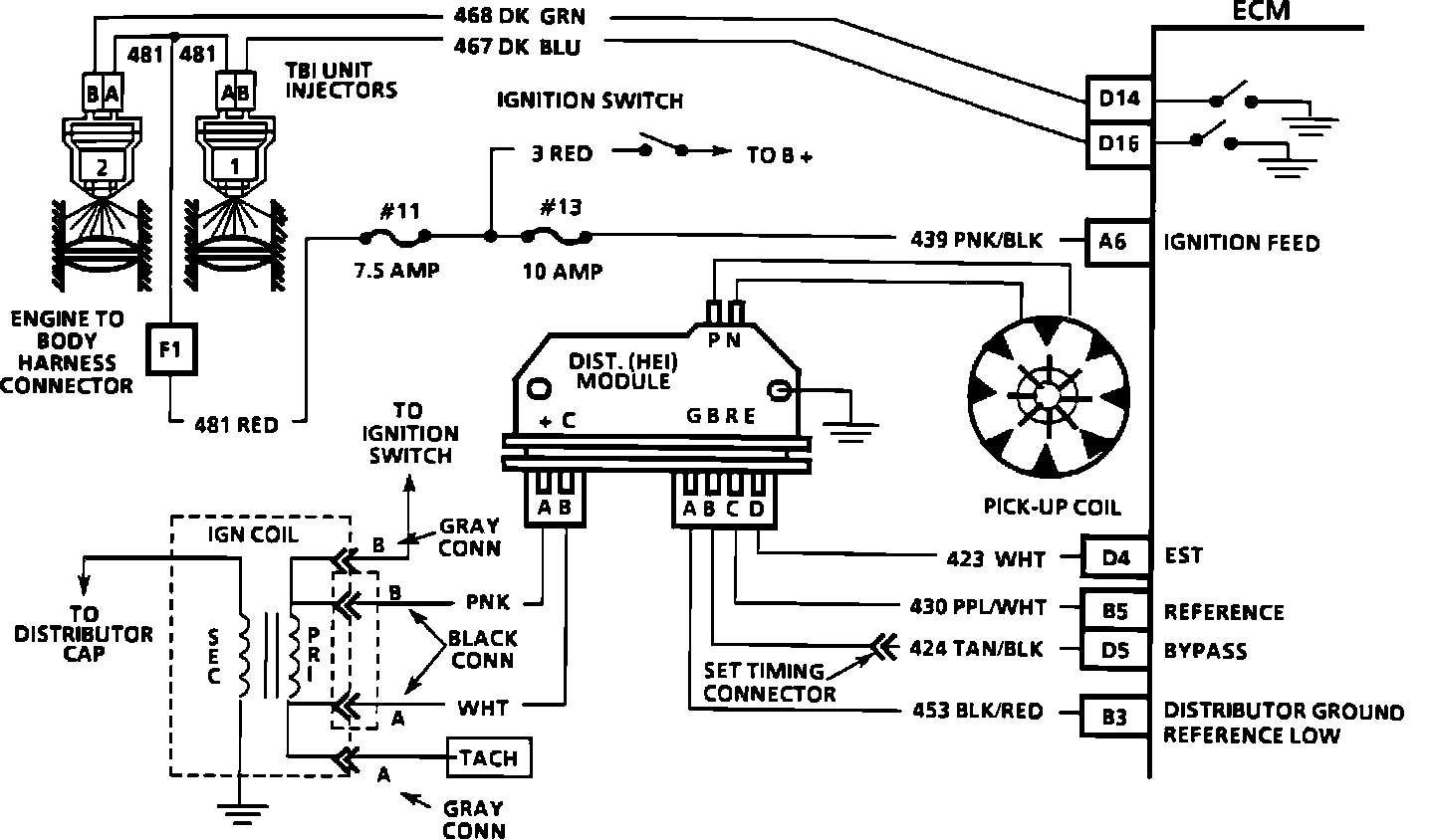

Wiring Diagram For Engine No Start:

The distributor reference signal comes from the ignition module and provides the ECM with RPM and crankshaft position information. If the wire becomes open or grounded the engine will not run, because the ECM will not operate the injectors. If the engine cranks but won't run see Chart A-3.
