Diagnostic Aids

Tech 1 and other scan testers have the ability to command the MIL and TEMP light on and off. A faulty driver circuit or poor connection can result in setting of Code 26.

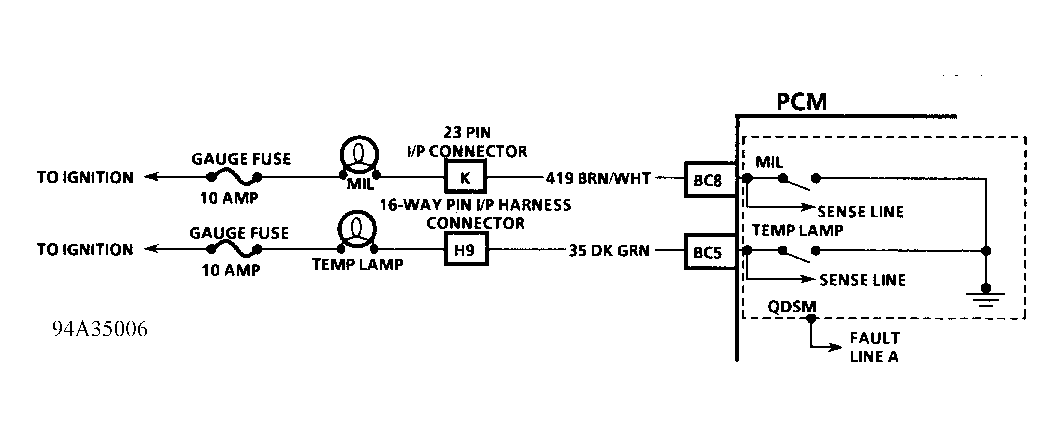

Fig 1: Code 26 Schematic (2.2L) Quad-Driver Error

Fig 2: Code 26 Flow Chart (2.2L) Quad-Driver Error
