Flow Chart 10B, Middle Support Inflate Mode Inoperative

DEFLATE OPERATES NORMALLY (ROADMASTER)

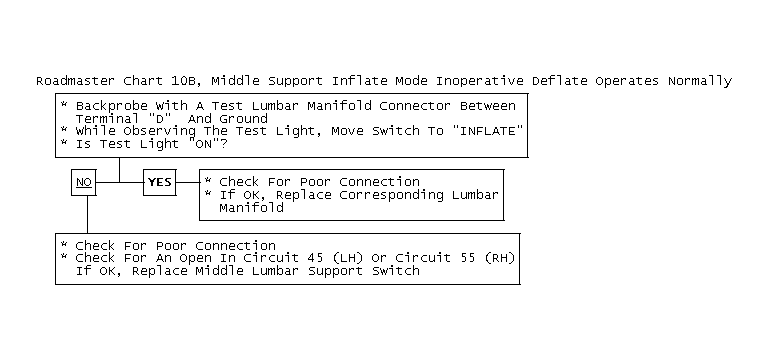

Fig 1: Roadmaster Chart 10B, Middle Support Inflate Mode Inoperative Deflate Operates Normally
GB0022366
