Flow Chart 7B, Upper Support Deflate Mode Inoperative Inflate

OPERATES NORMALLY (ROADMASTER)

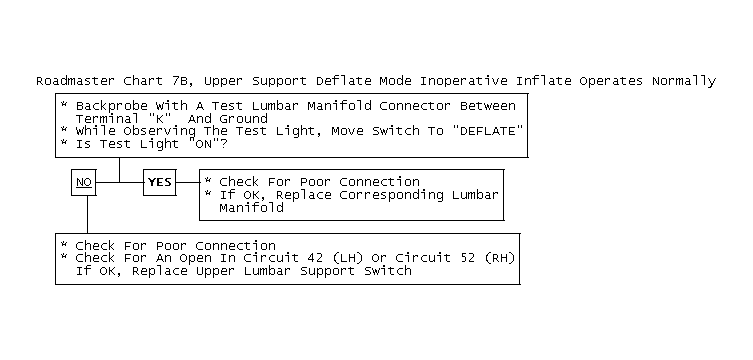

Fig 1: Roadmaster Chart 7B, Upper Support Deflate Mode Inoperative Inflate Operates Normally
GB0022363
