Flow Chart 9B, Middle Support Deflate Mode Inoperative

INFLATE OPERATES NORMALLY (ROADMASTER)

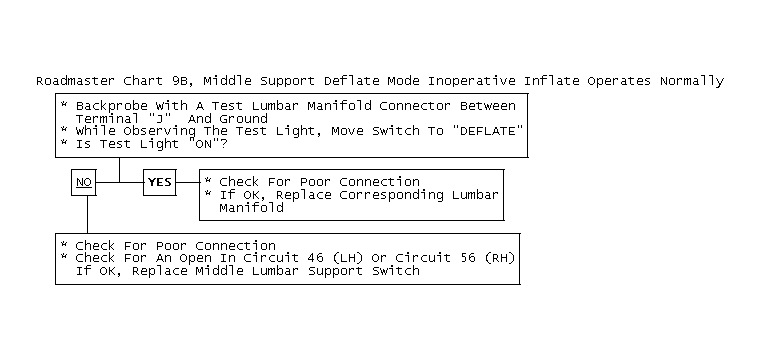

Fig 1: Roadmaster Chart 9B, Middle Support Deflate Mode Inoperative Inflate Operates Normally
GB0022365
