Keyless Entry Module

8-Way F Metri-Pack 150 Series BLU:



8-Way F Metri-Pack 280 Series BLK:

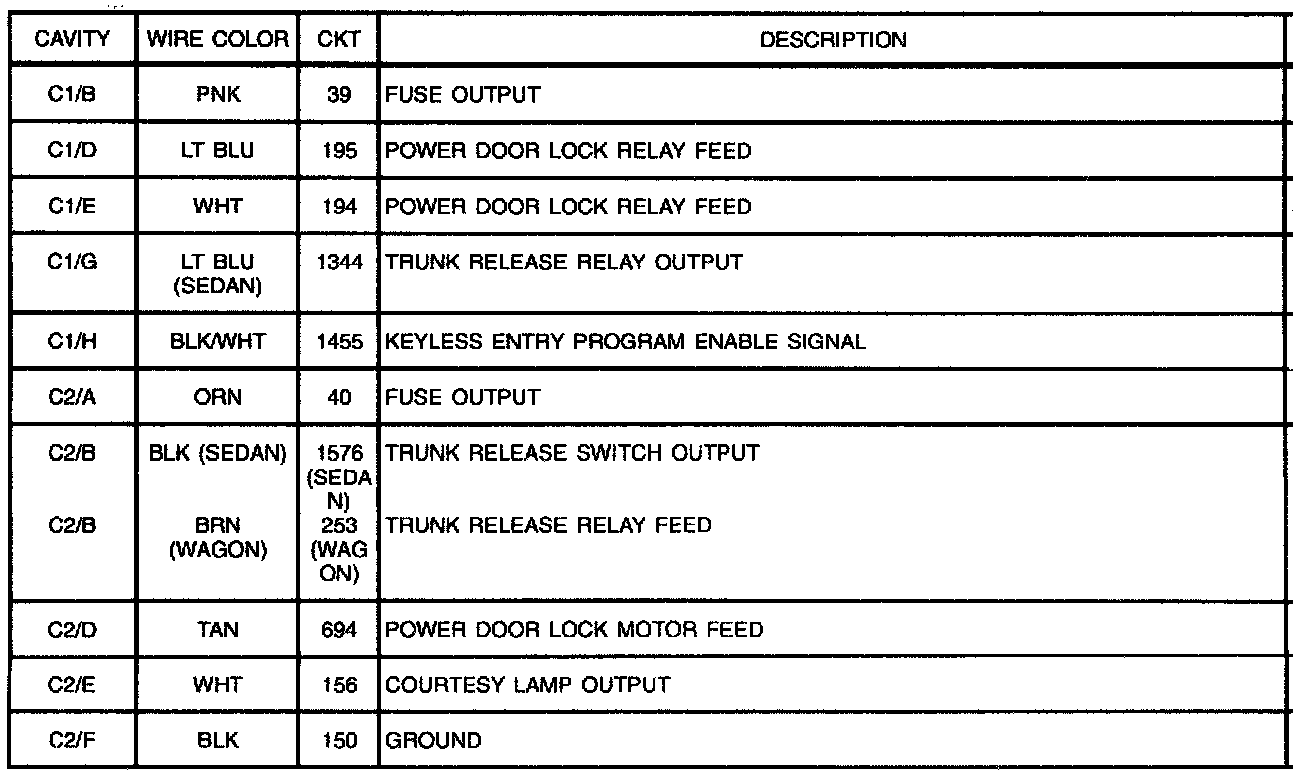

Remote Keyless Entry (RKE) Module:
