Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Convenience Center (Buick) | Behind left side of dash. |
| Convenience Center (Oldsmobile) | Behind right side of dash, right of glove box. |
| Engine A/C In-Line Fuse | Taped in wiring harness, behind fuse block. |

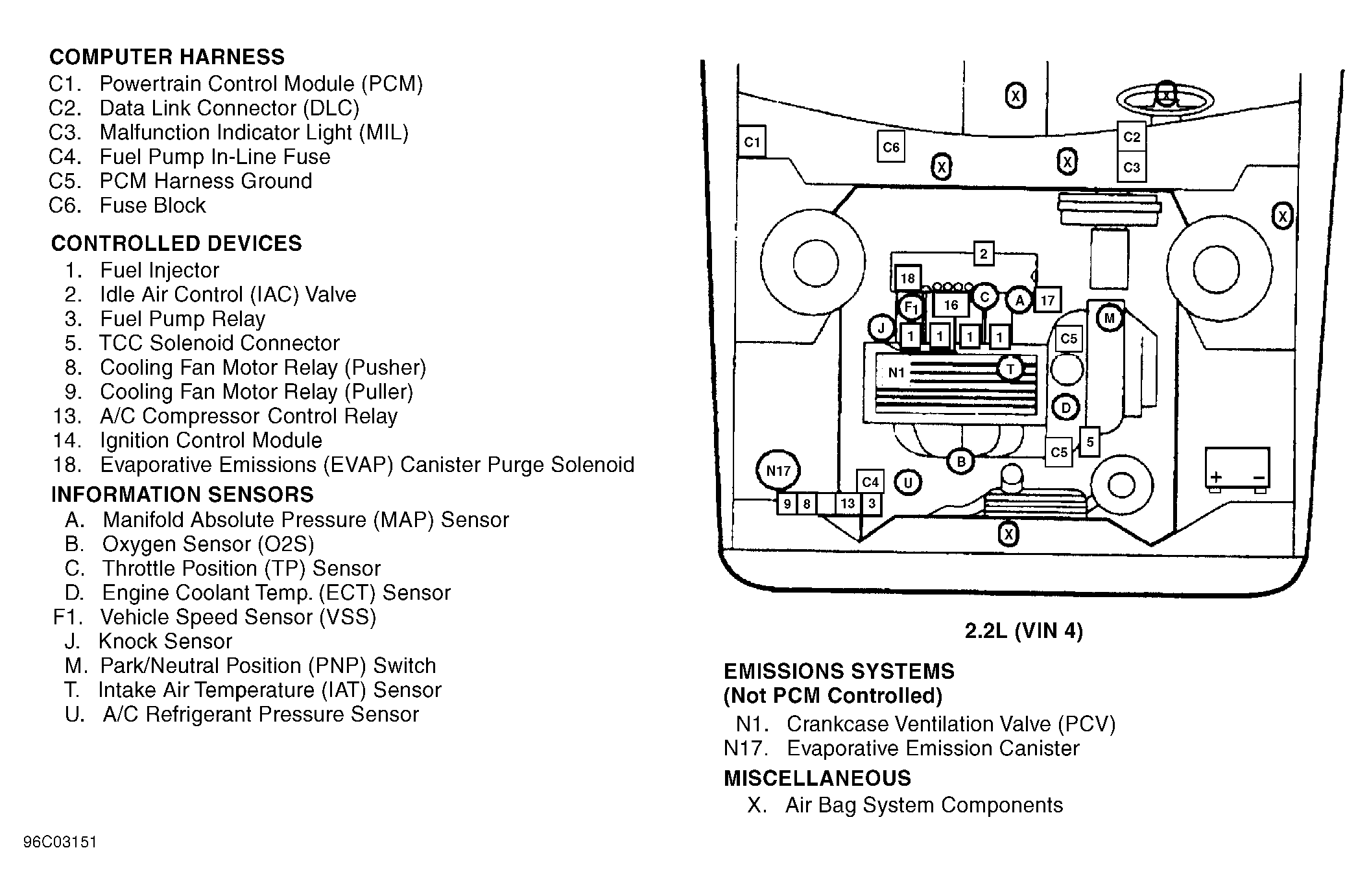

| Fuel Pump In-Line Fuse (2.2L VIN 4) | On relay bracket, in right front corner of engine compartment. See Figure . |

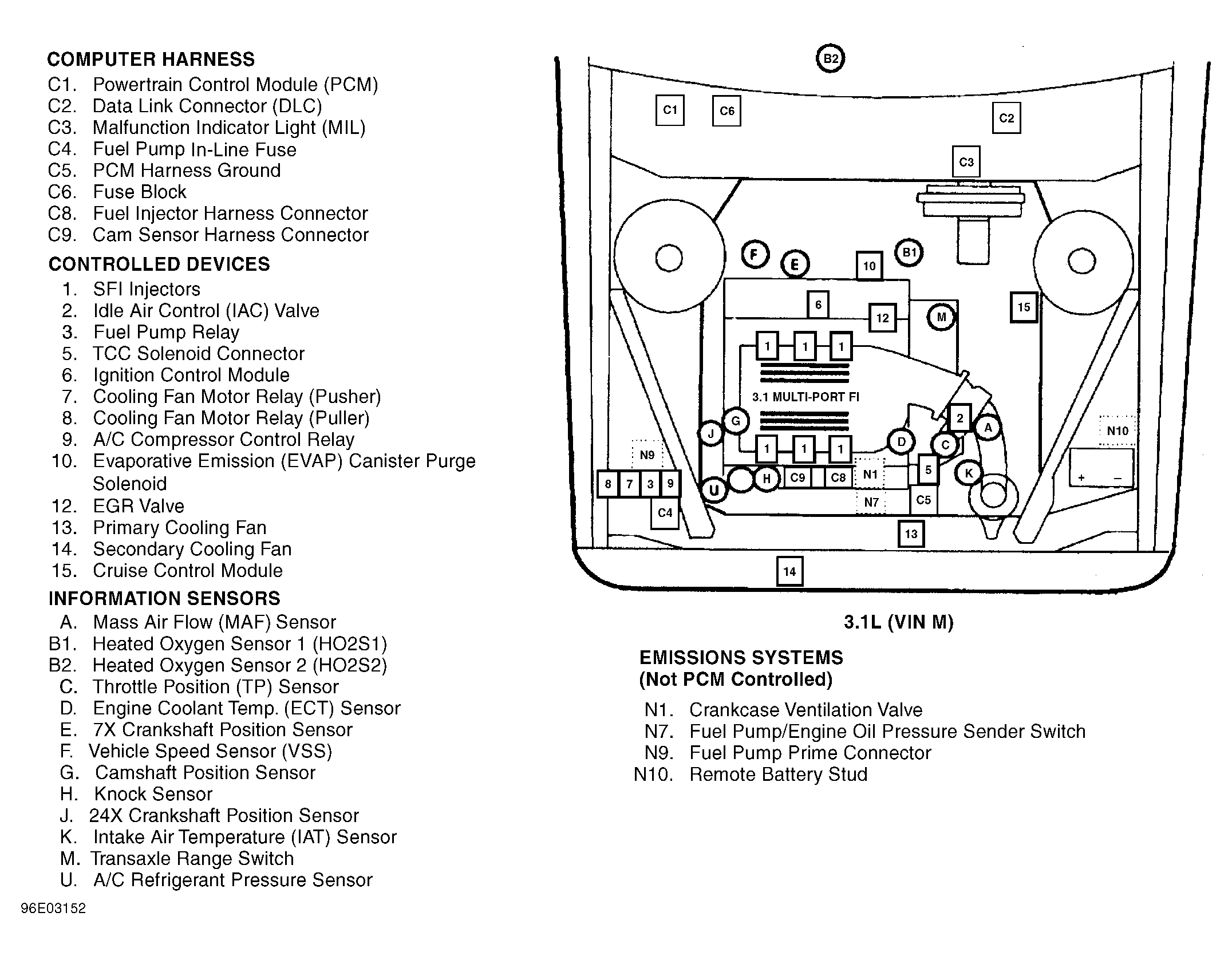

| Fuel Pump In-Line Fuse (3.1L VIN M) | On relay bracket, in right front corner of engine compartment. See Figure . |
| Fuse Block (2.2L VIN 4) | Behind right side of dash, to left of glove box. See Figure . |
| Fuse Block (3.1L VIN M) | Behind right side of dash, to left of glove box. See Figure . |
| Fusible Links | At starter solenoid, or battery positive terminal pigtail. |
| Multi-Function Alarm In-Line Fuse | Near fuse block, taped to harness. |
| Power Accessory Circuit Breaker | In fuse block. |
| SIR Crank In-Line Fuse | Taped to harness, behind fuse block. |
