UNDERHOOD Fuse Block

NOTE: Underhood fuse block is located in passenger side rear corner of engine compartment.

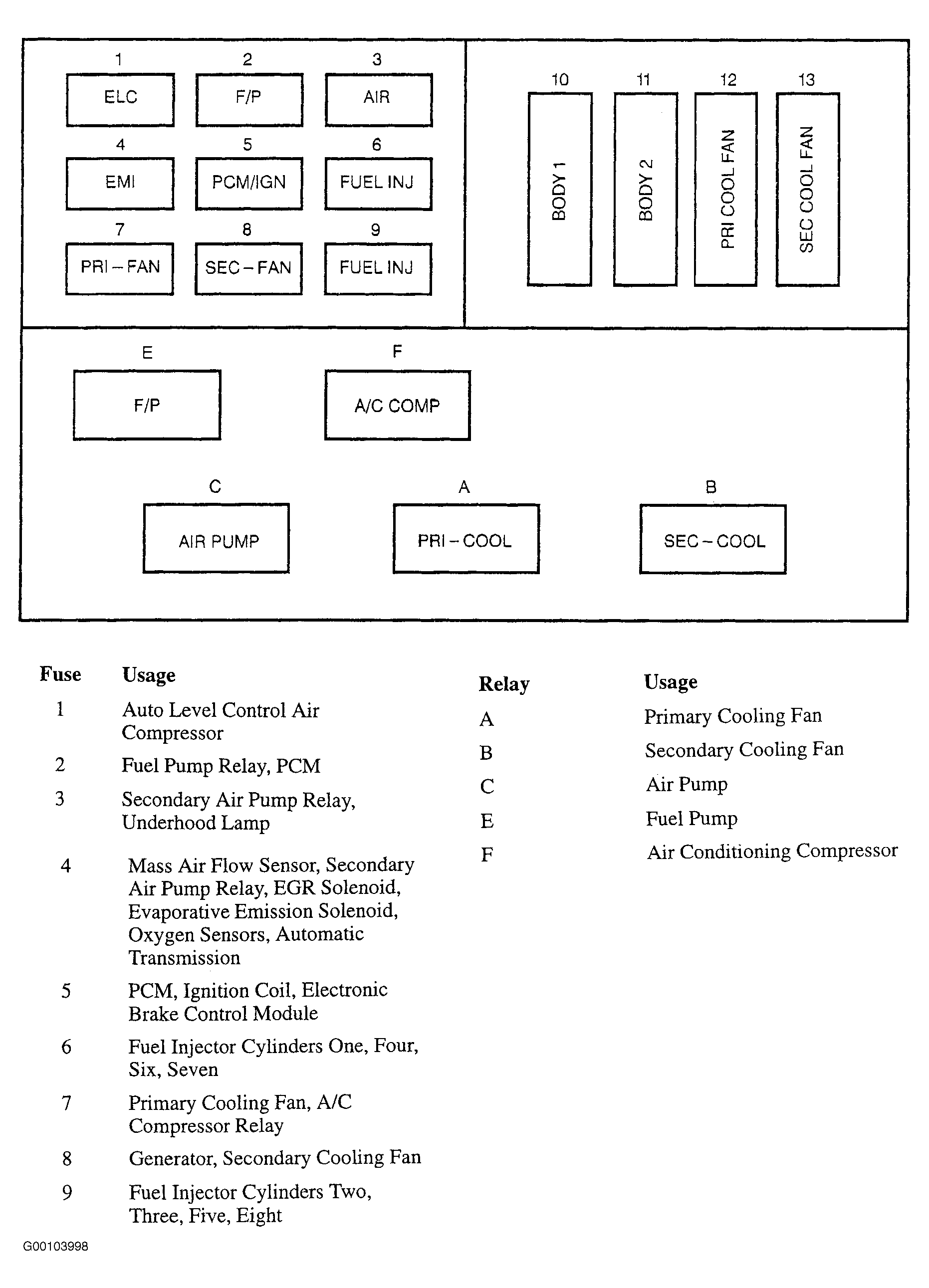

Fig 1: Identifying Underhood Fuse Block Components
G00103998Courtesy of GENERAL MOTORS CORP.
