Day/Night Lighted

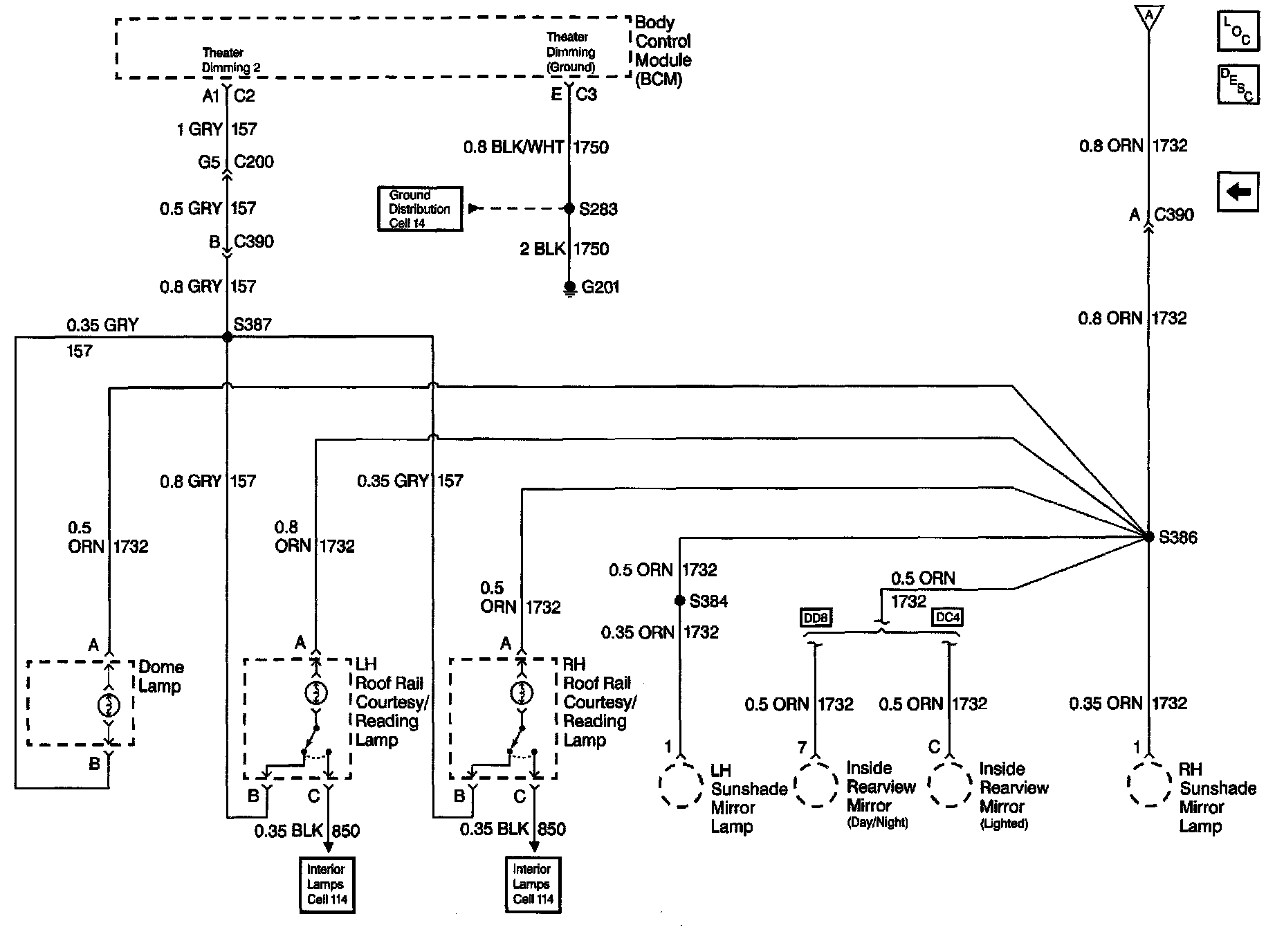

Body Control Module Schematics: Left Sunshade Mirror Lamp, Inside Rearview Mirrors (Day/Night Lighted):
