Ignition Control Module: Locations

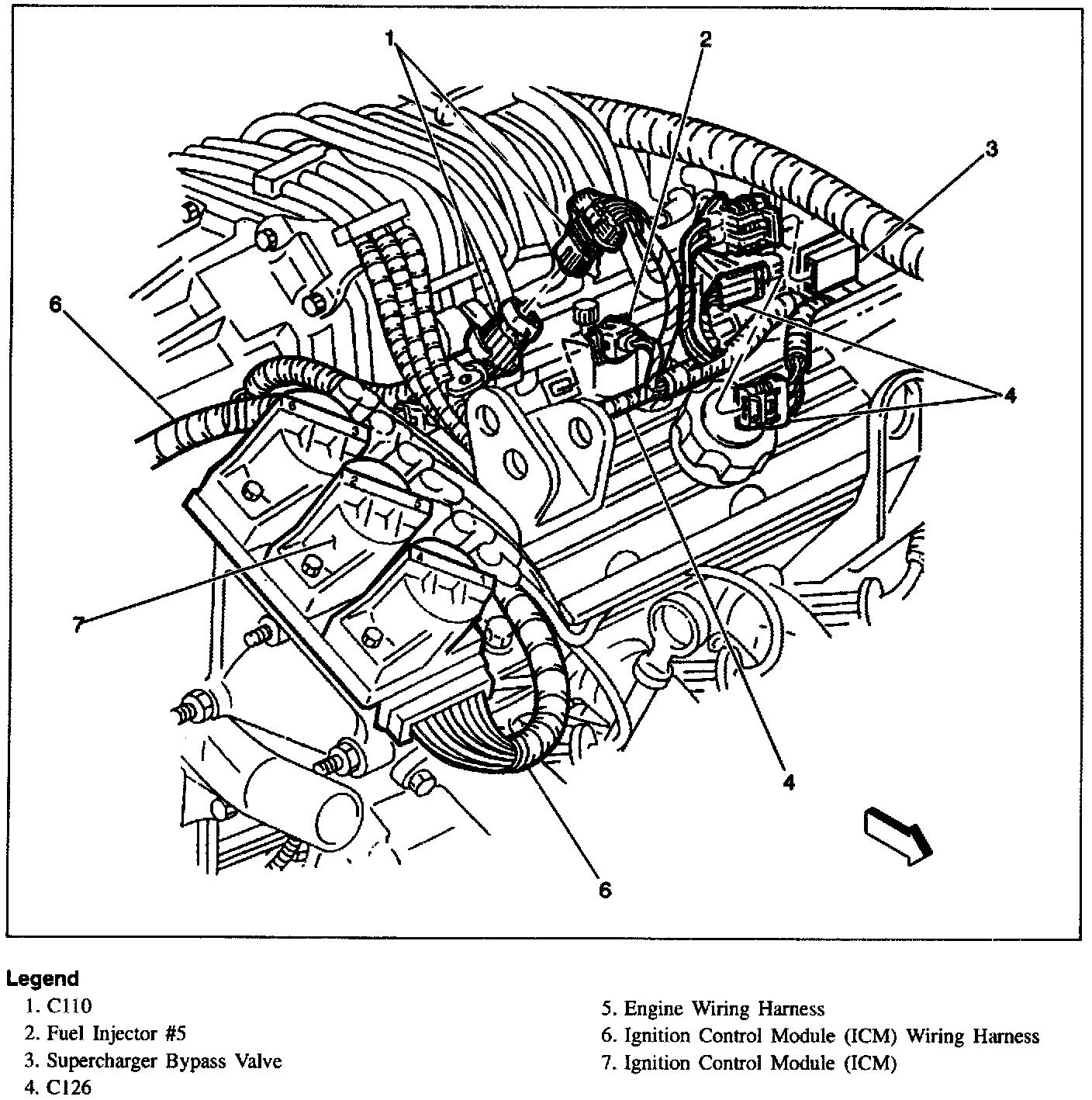

RH Side Of VIN K Engine (VIN 1 Similar):
Locations View:

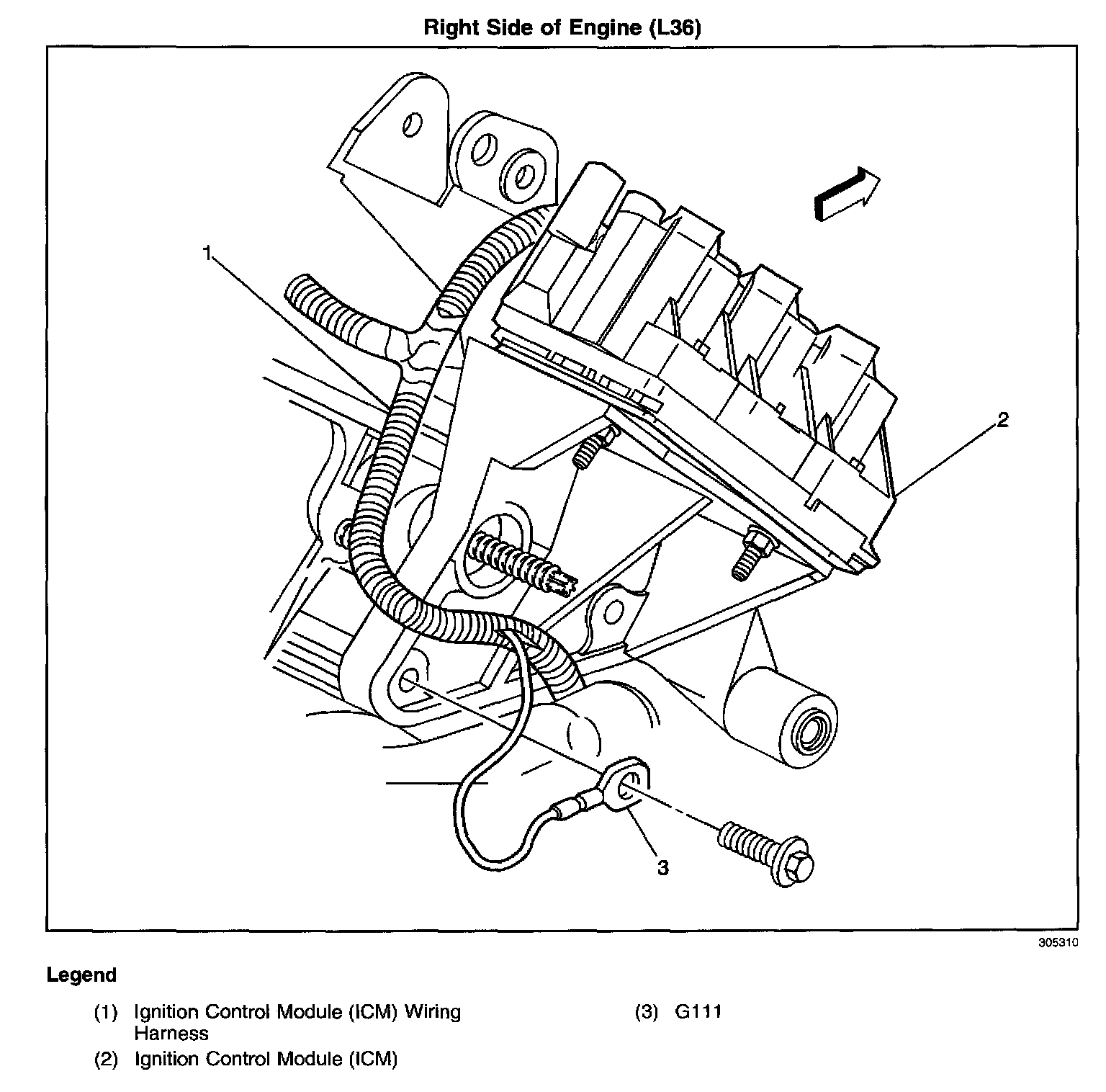

Locations View:

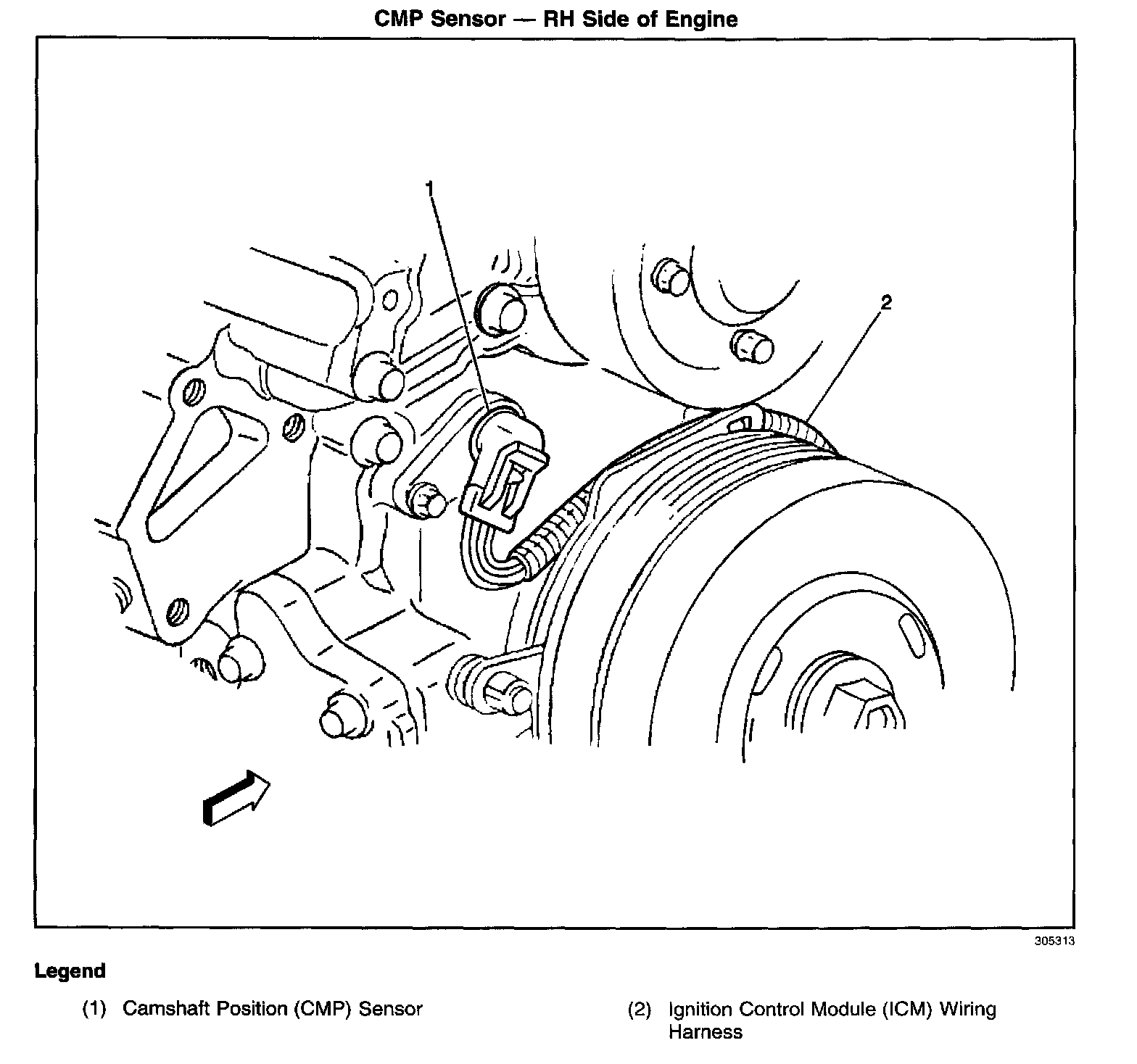

RH Top Of Engine:
