Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the memory seat switch to the inside handle bezel.
  2. Route the electrical wiring for the memory seat switch behind the door trim panel.
  3. Connect the memory seat switch electrical connector.
  4. Install the front door switch plate. Refer to FRONT DOOR SWITCH REPLACEMENT in Doors.
  5. Install the inside handle bezel to the door trim panel. Refer to HANDLE BEZEL REPLACEMENT -- INSIDE in Doors.

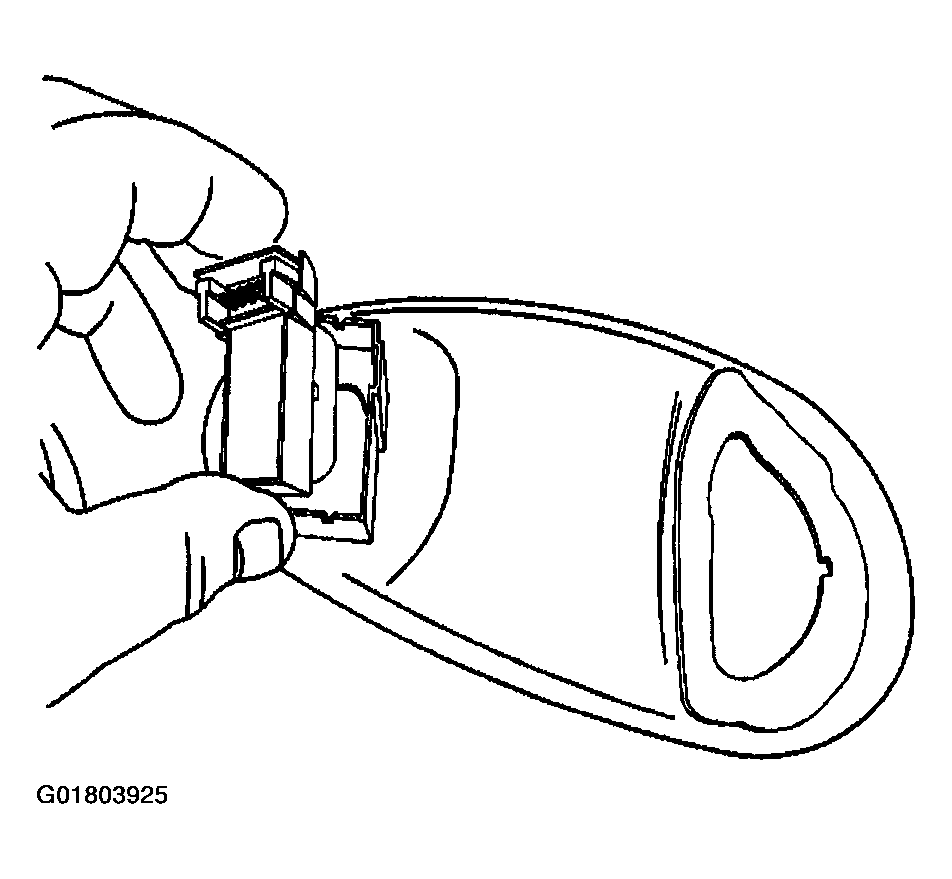

    Fig 1: Installing Memory Seat Switch
    G01803925Courtesy of GENERAL MOTORS CORP.
