Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

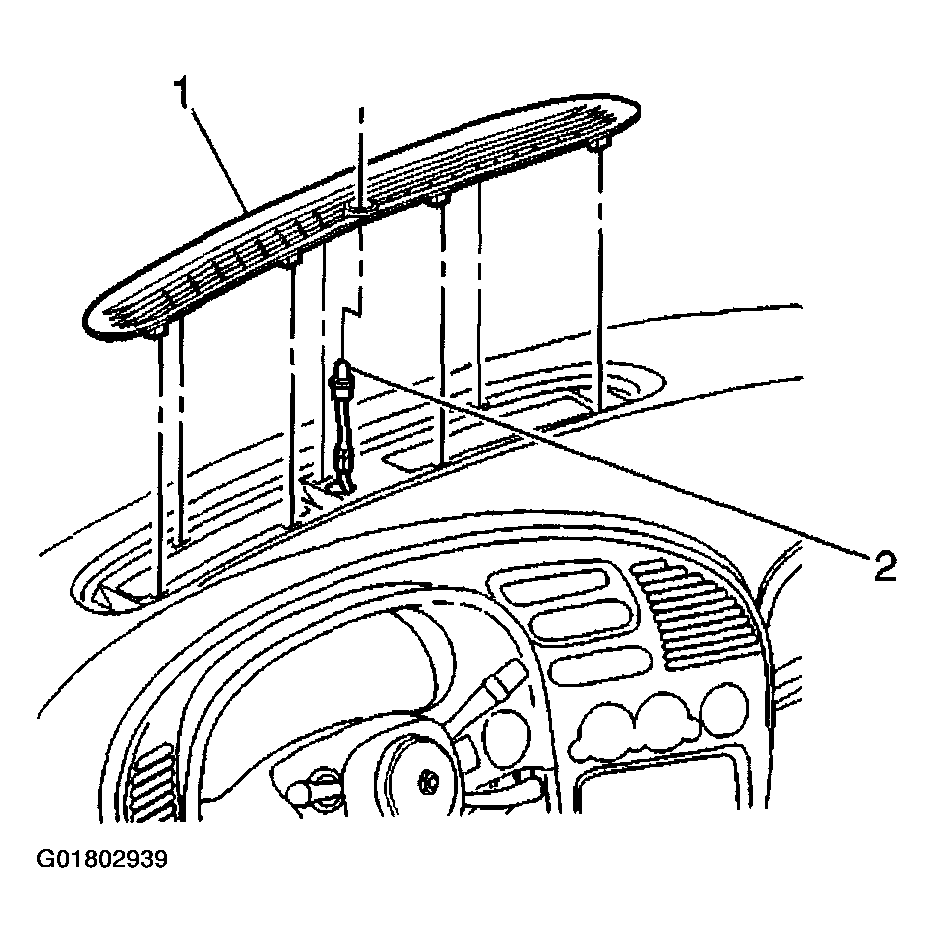

- Install the ambient light sensor (2) into the defroster grille (1).
- Turn the ambient light sensor 1/4 turn clock wise in order to secure the sensor to the defroster grill.
- Connect the electrical connector to the ambient light sensor (2).
- Align defroster grille with I/P upper trim pad.
- Secure the defroster grille to I/P upper trim pad by pressing downward in order to engage the retainers.
