WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Right Of Instrument Panel Cluster Component View
Courtesy of GENERAL MOTORS CORP.

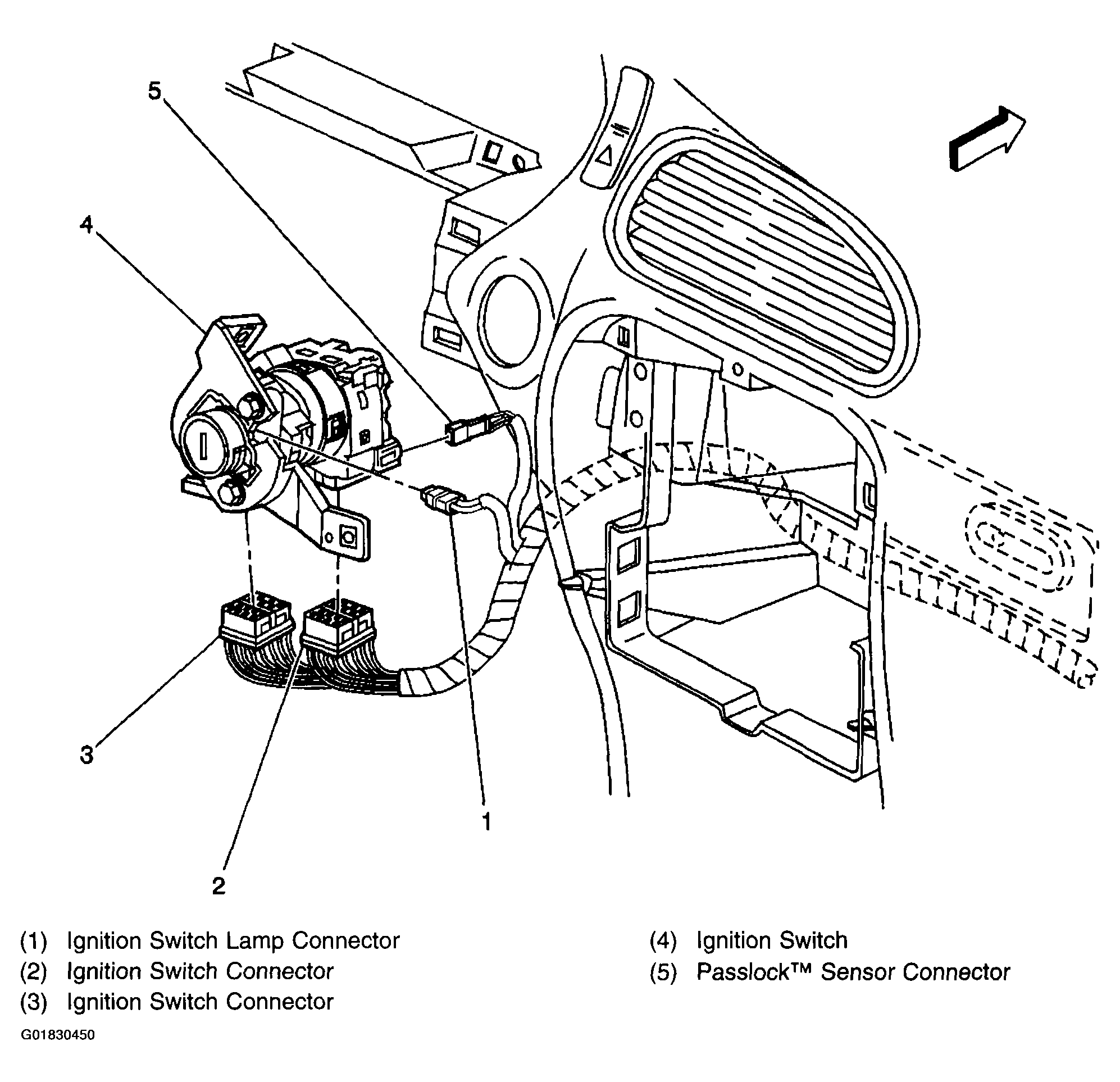

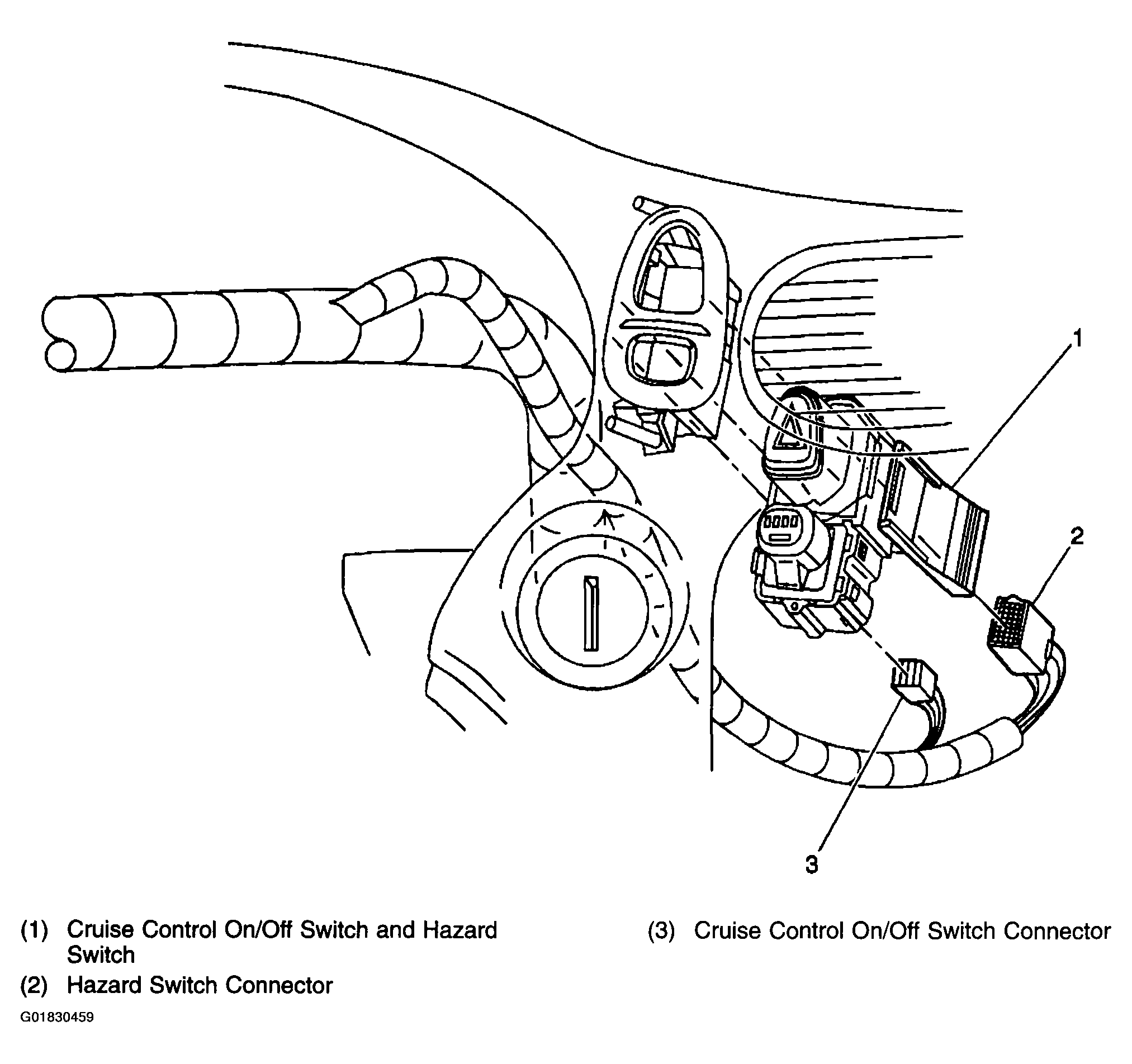

Fig 2: Right Of Steering Column Component View
Courtesy of GENERAL MOTORS CORP.

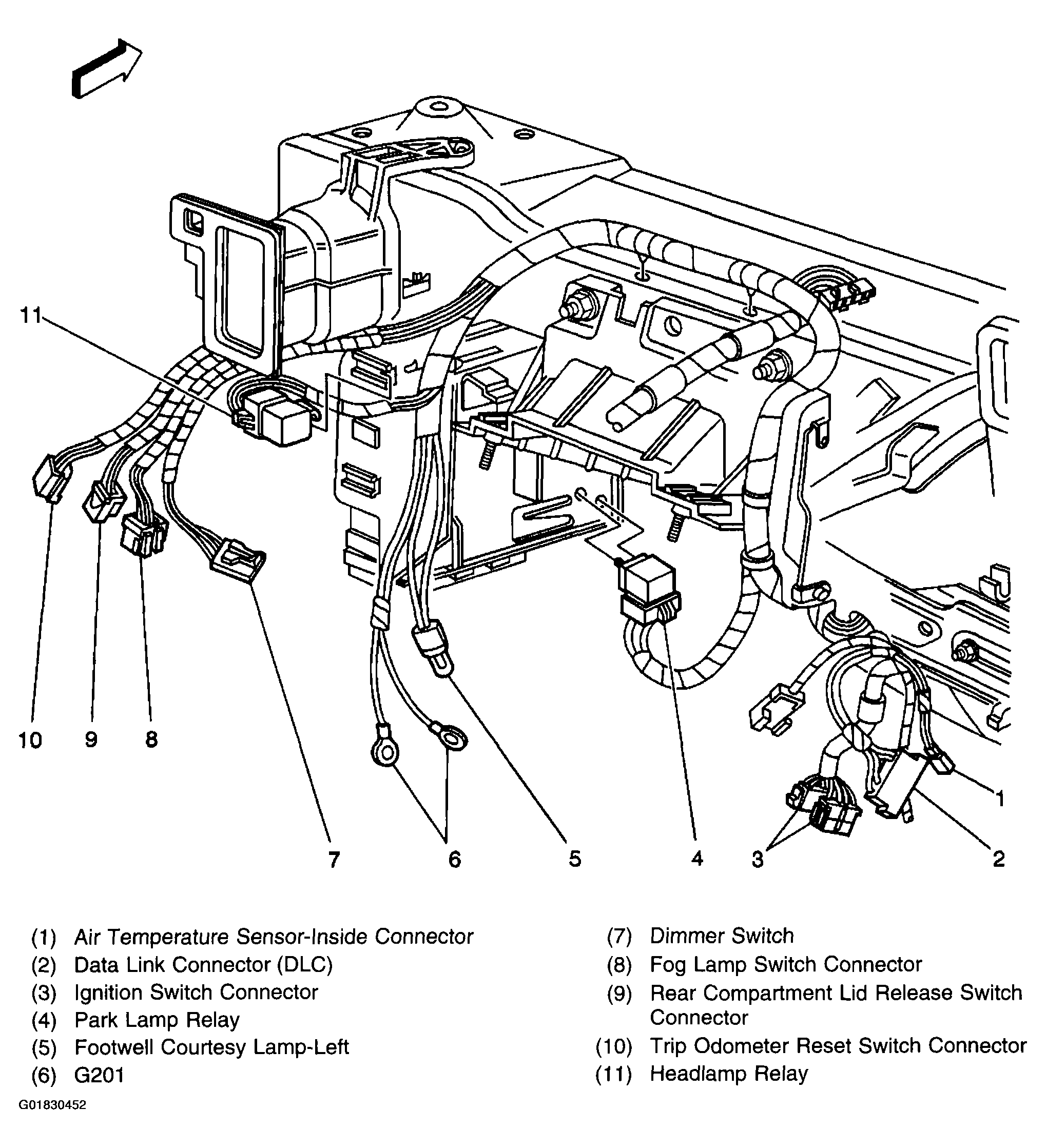

Fig 3: Behind Left Side Of Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.

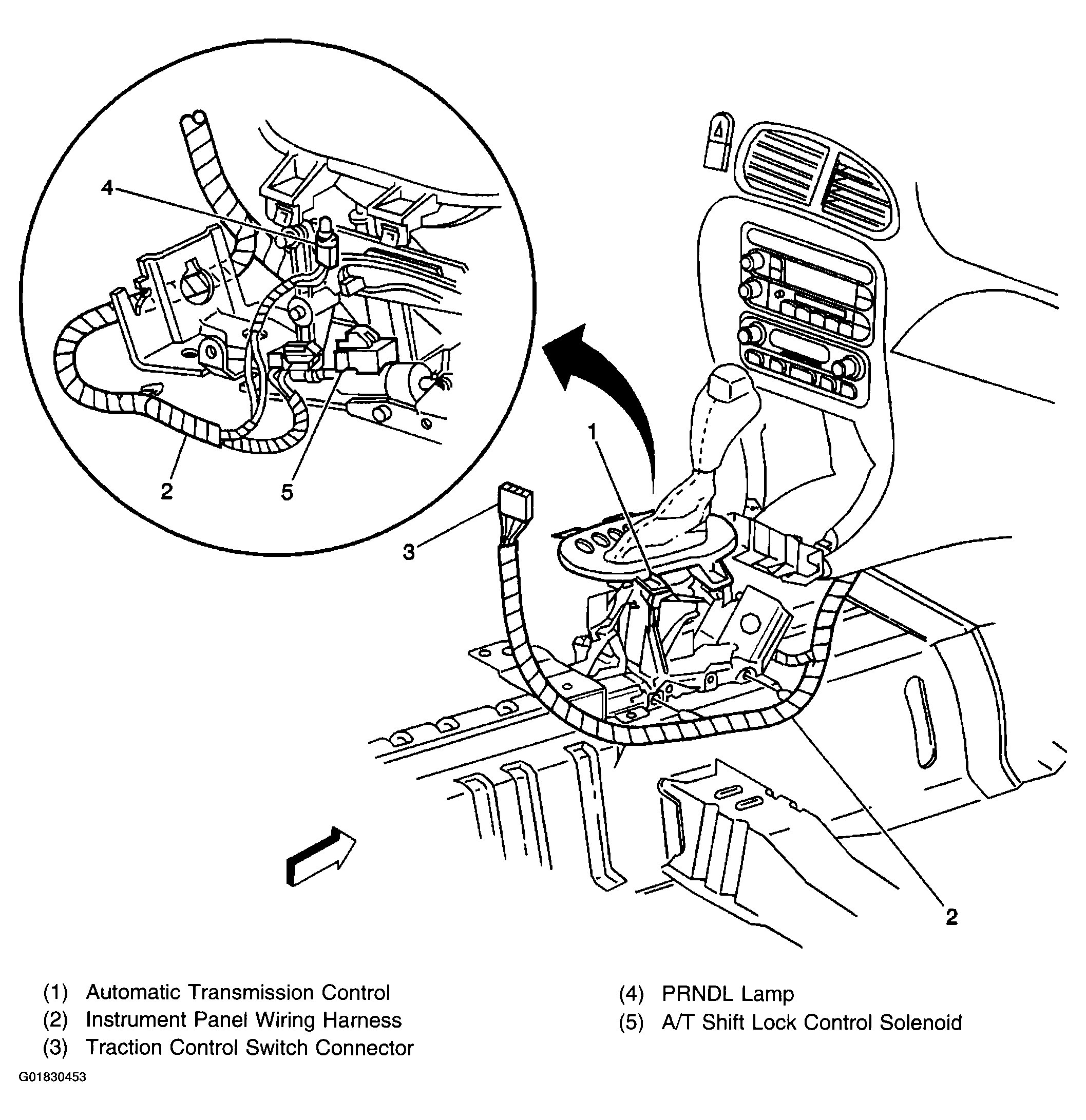

Fig 4: Center Of Console Component View
Courtesy of GENERAL MOTORS CORP.

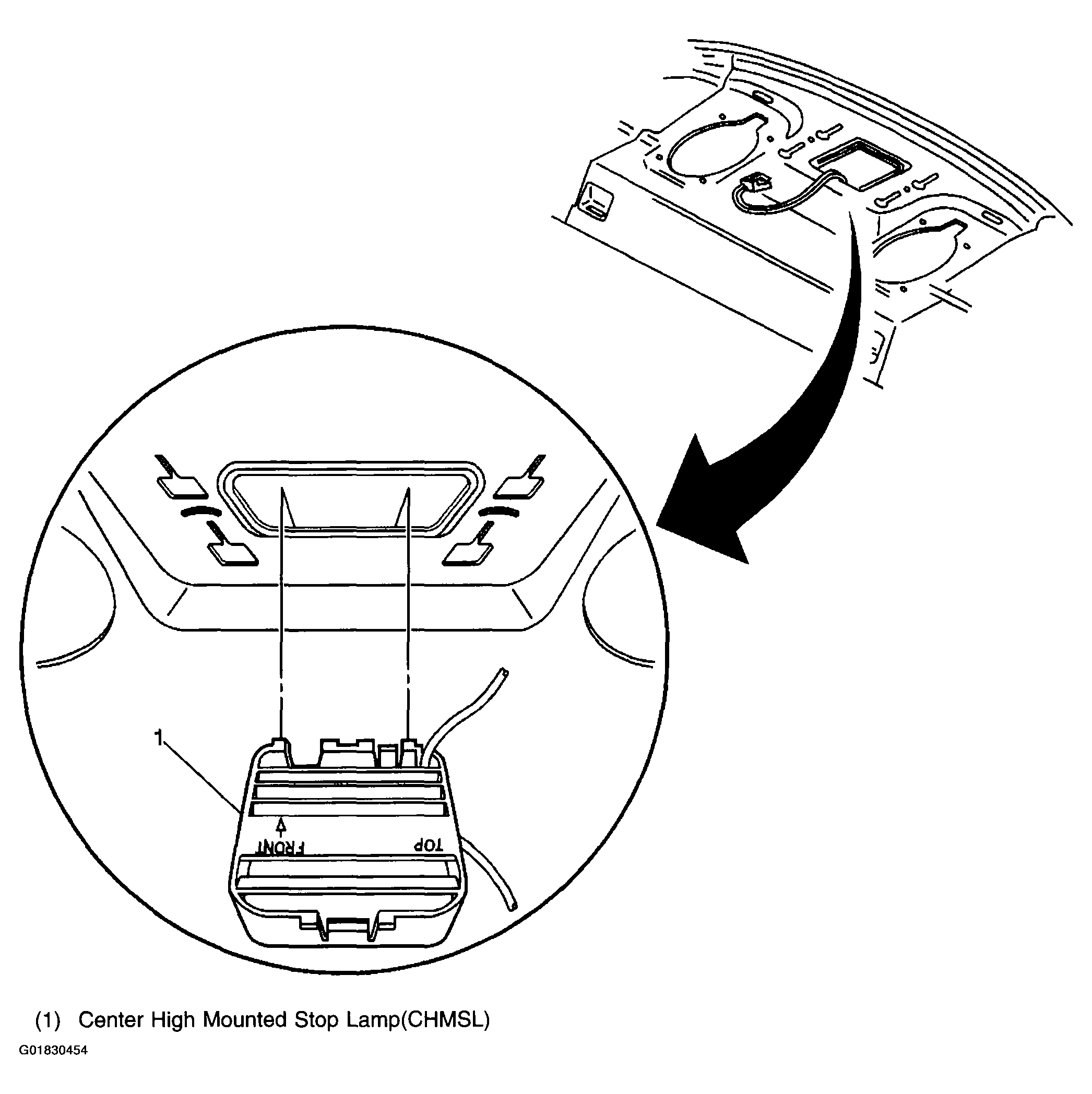

Fig 5: Center Of Package Shelf Component View
Courtesy of GENERAL MOTORS CORP.

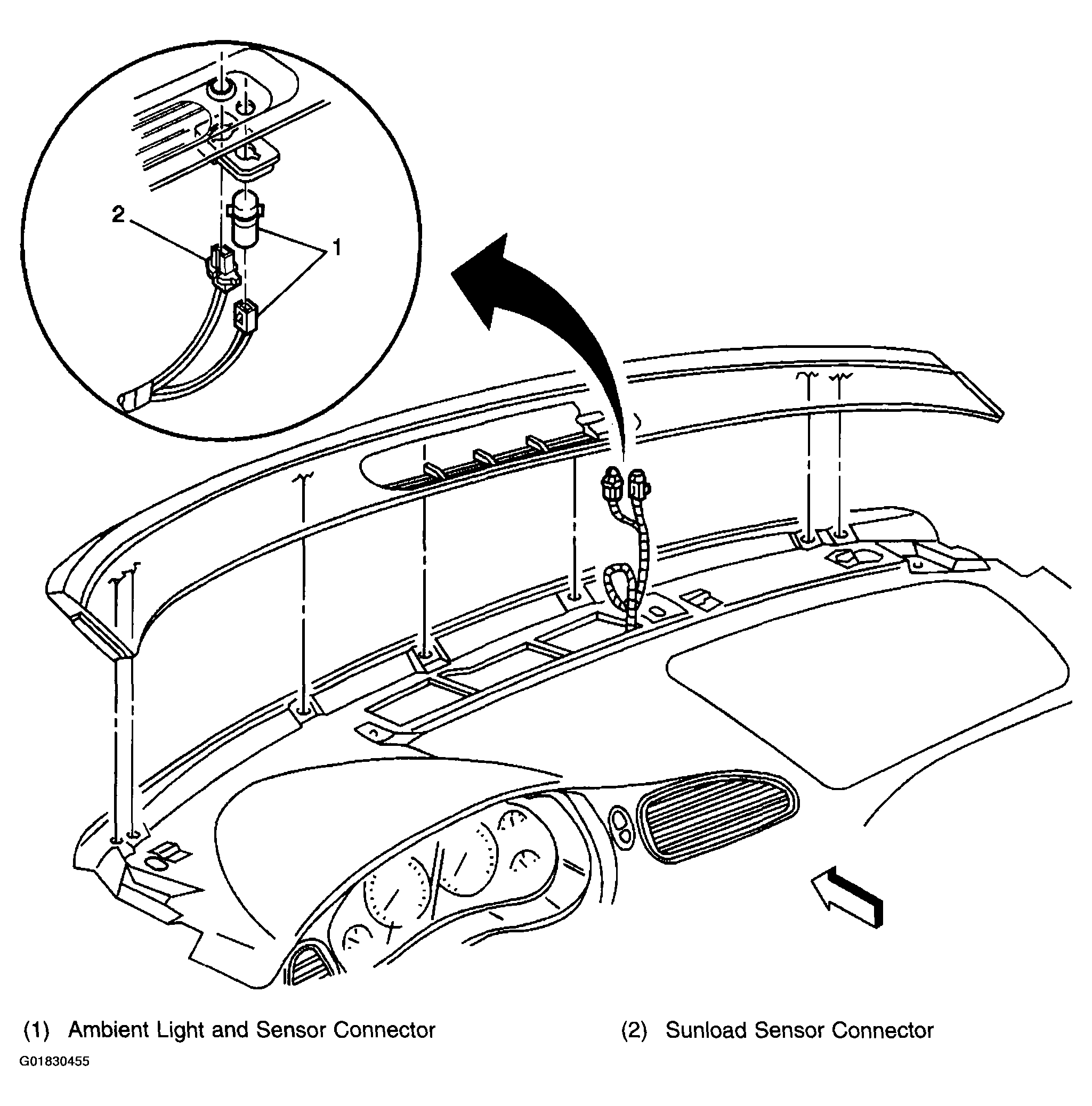

Fig 6: Top Center Of Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.

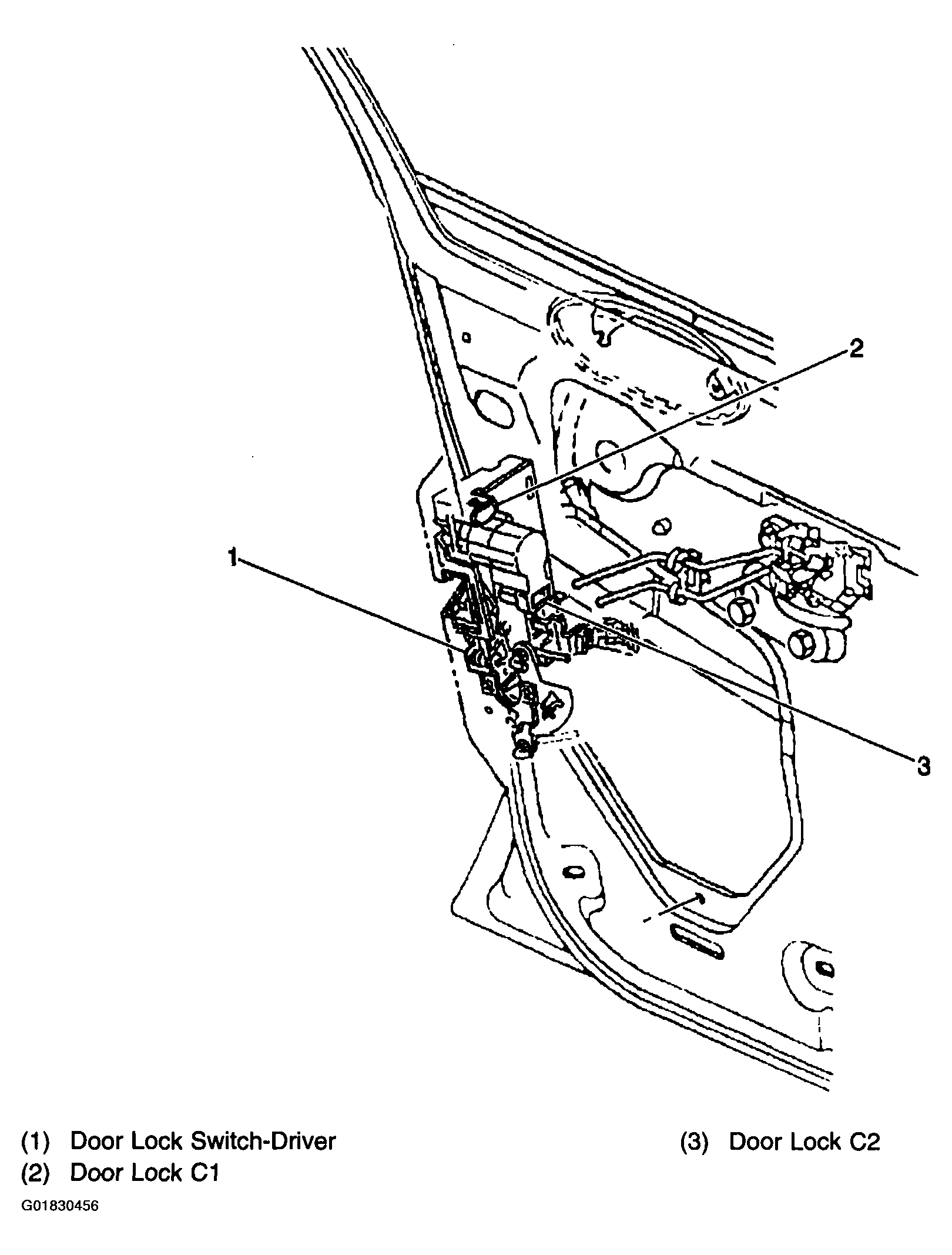

Fig 7: Rear Edge Of Driver Door Component View
Courtesy of GENERAL MOTORS CORP.

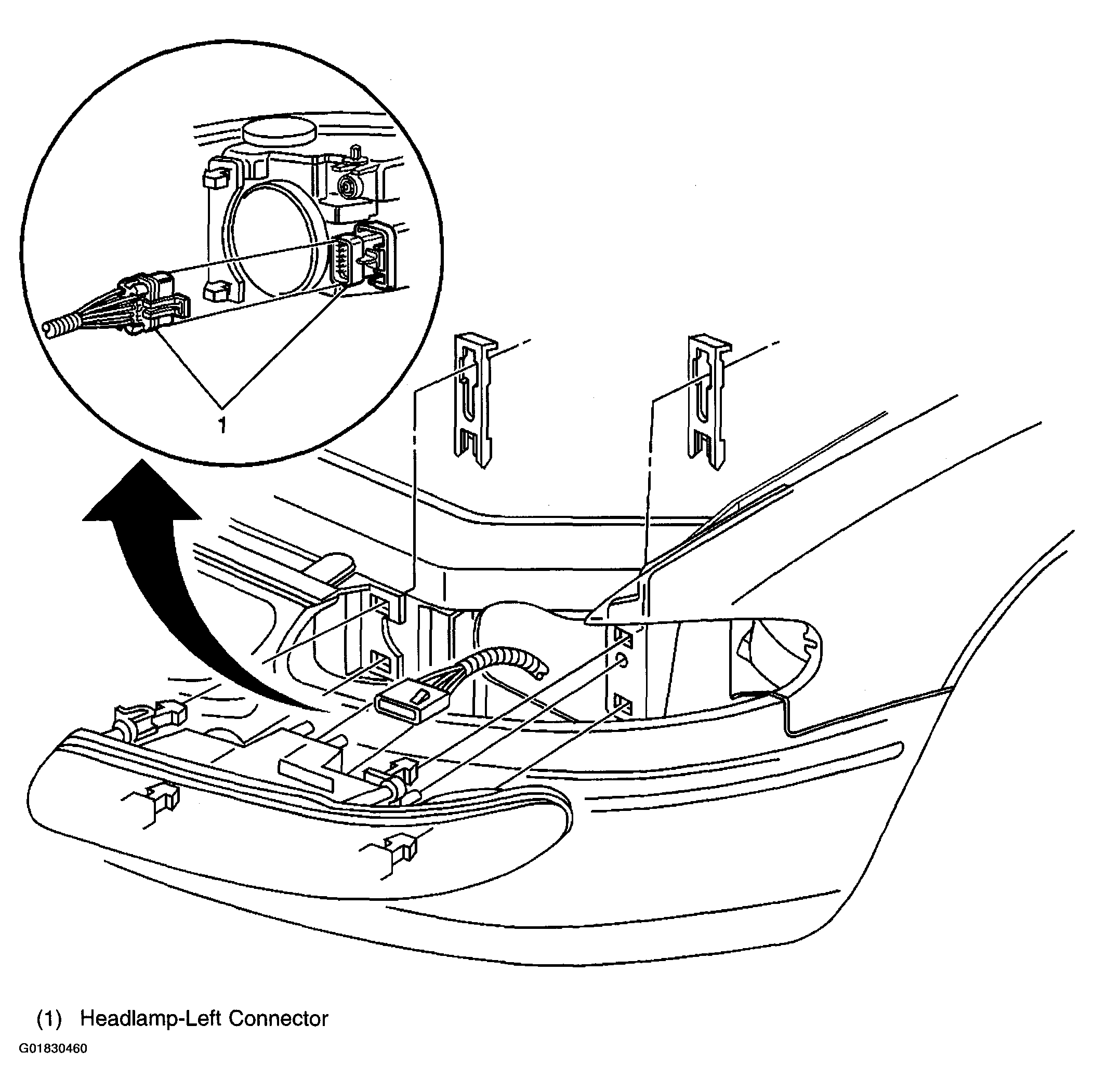

Fig 8: Left Front Fascia Component View
Courtesy of GENERAL MOTORS CORP.
Fig 9: Lower Left Of Instrument Panel Cluster Component View
Courtesy of GENERAL MOTORS CORP.
Fig 10: Right Of Instrument Panel Cluster Component View
Courtesy of GENERAL MOTORS CORP.

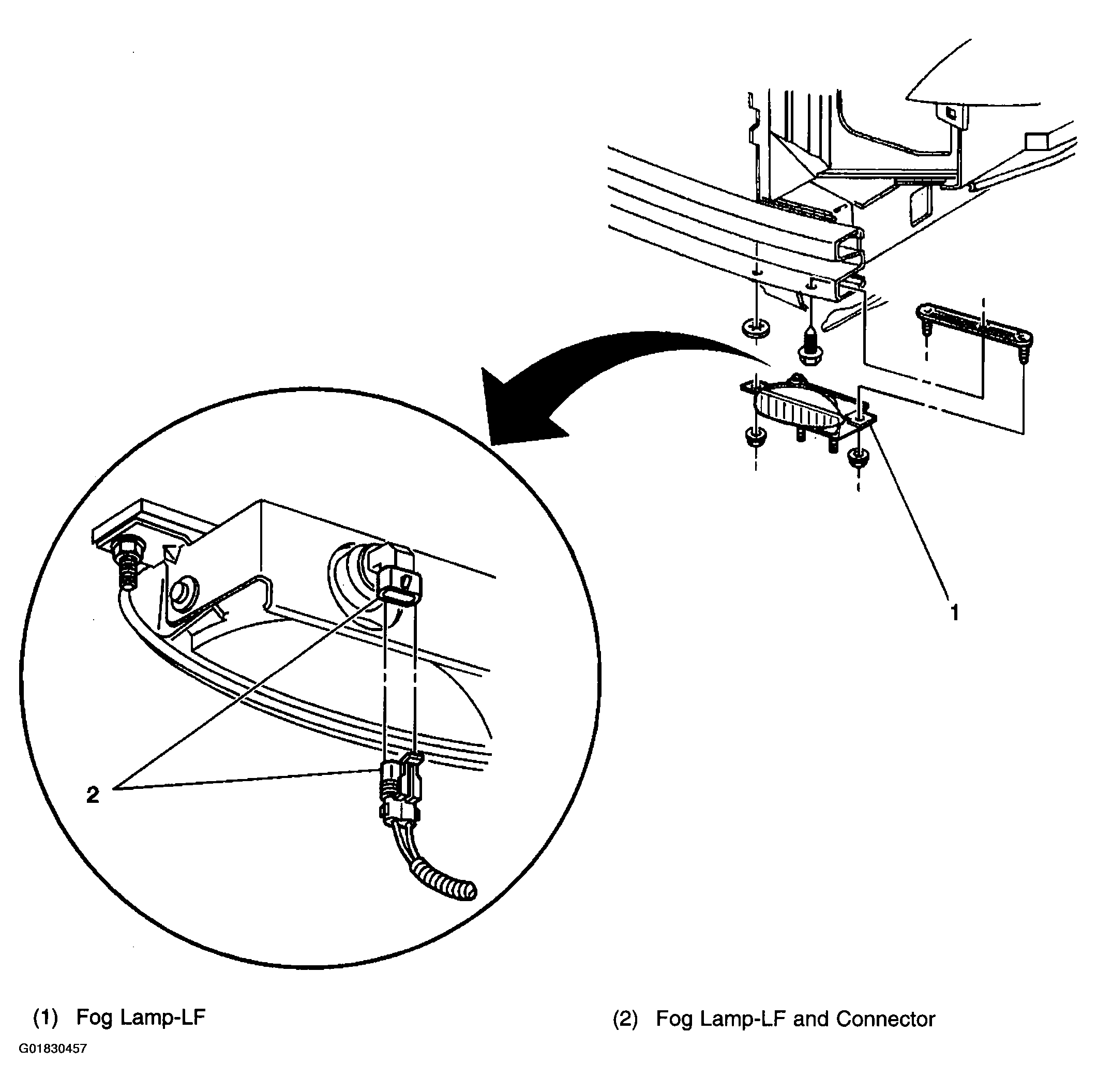

Fig 11: Left Front Of Vehicle Component View
Courtesy of GENERAL MOTORS CORP.

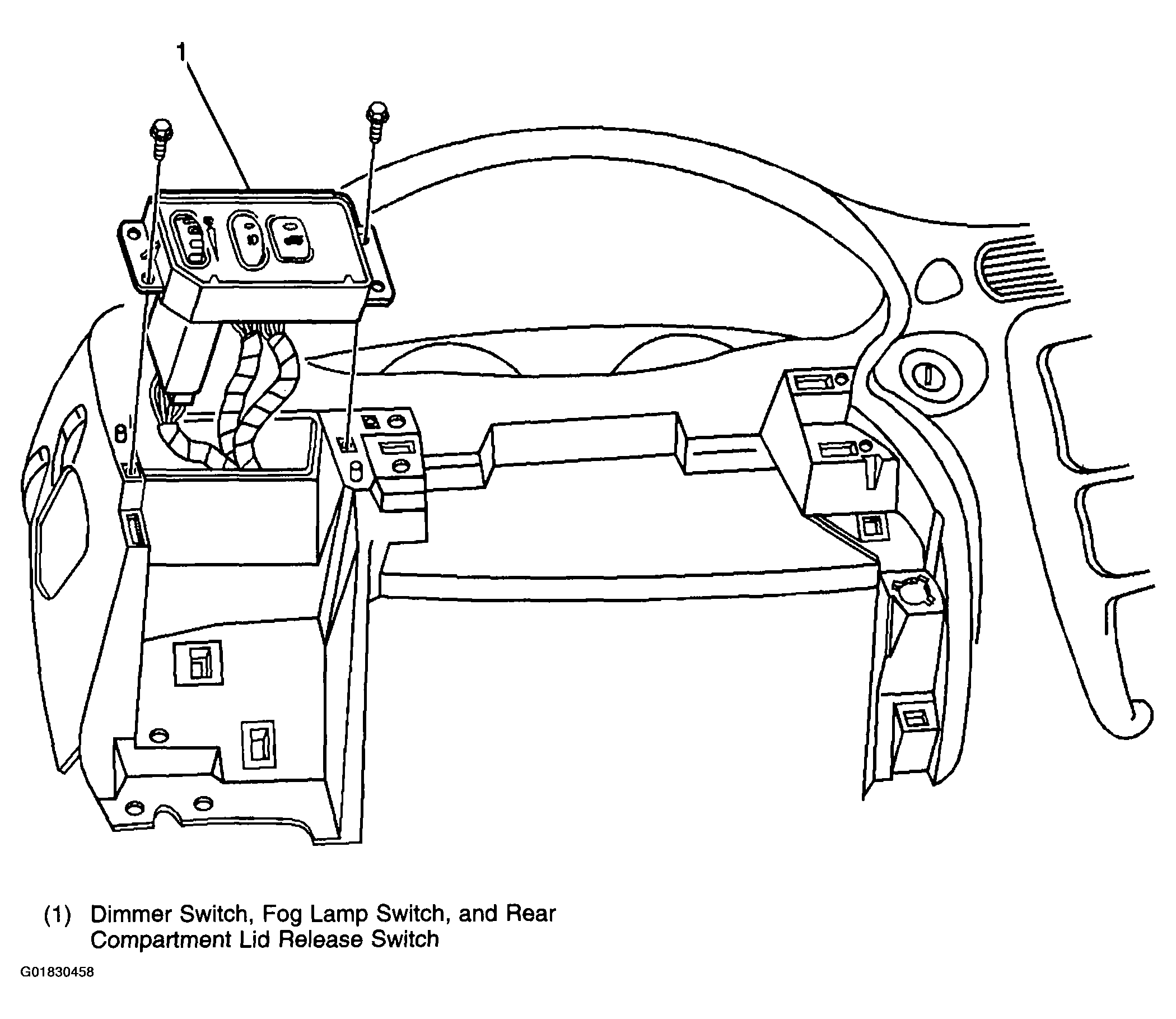

Fig 12: Left Side Of Instrument Panel Component View
Courtesy of GENERAL MOTORS CORP.

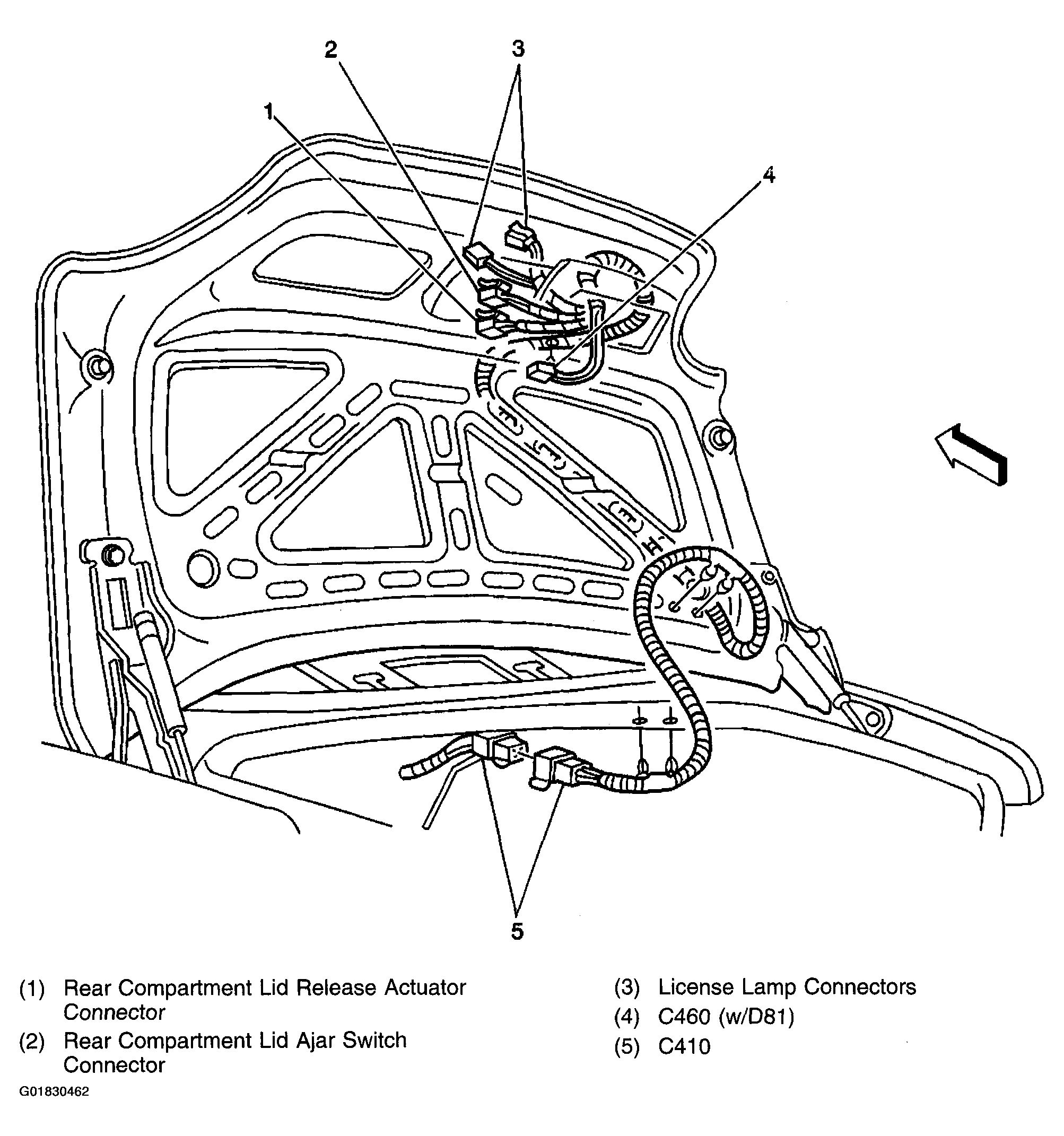

Fig 13: Under Rear Compartment Lid Component View
Courtesy of GENERAL MOTORS CORP.

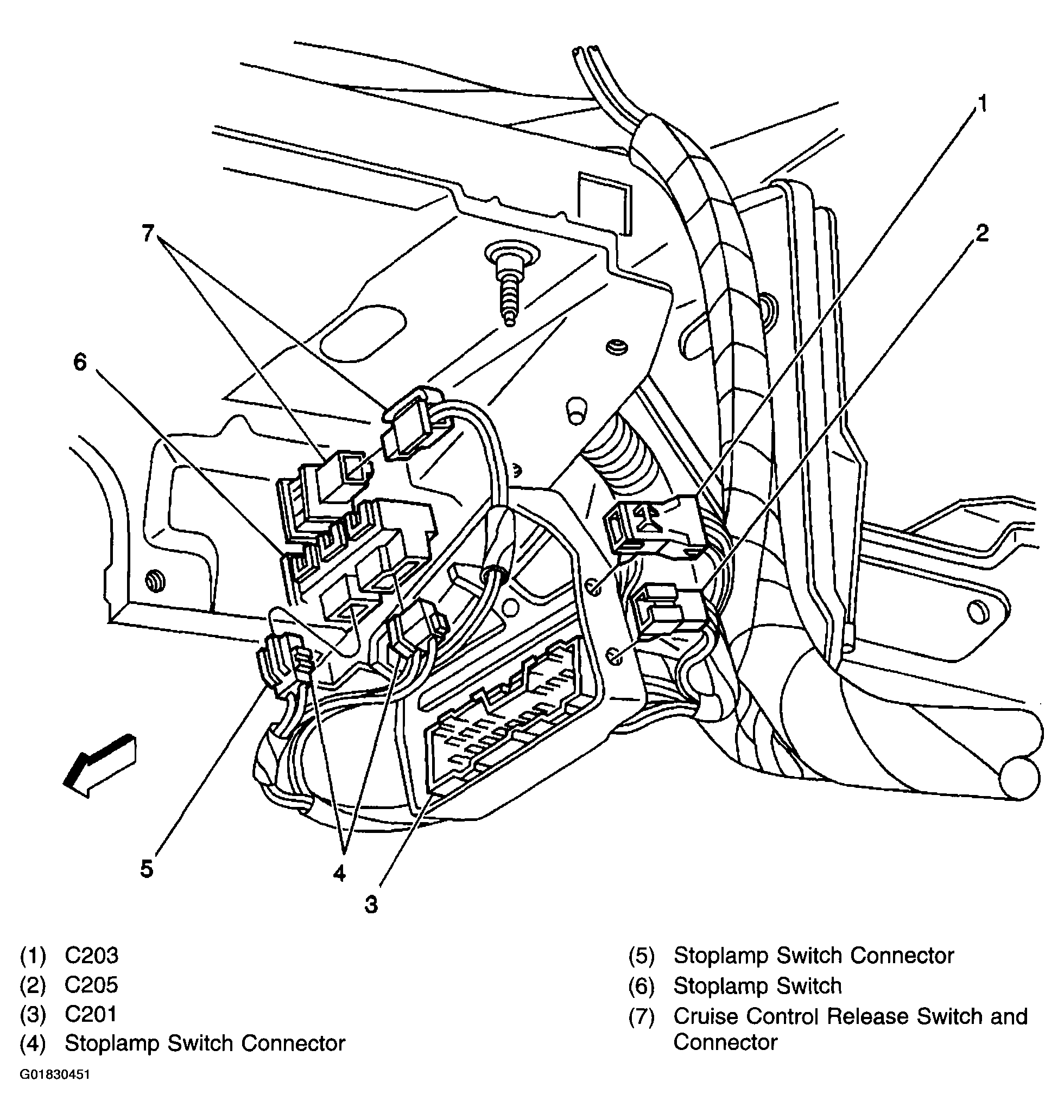

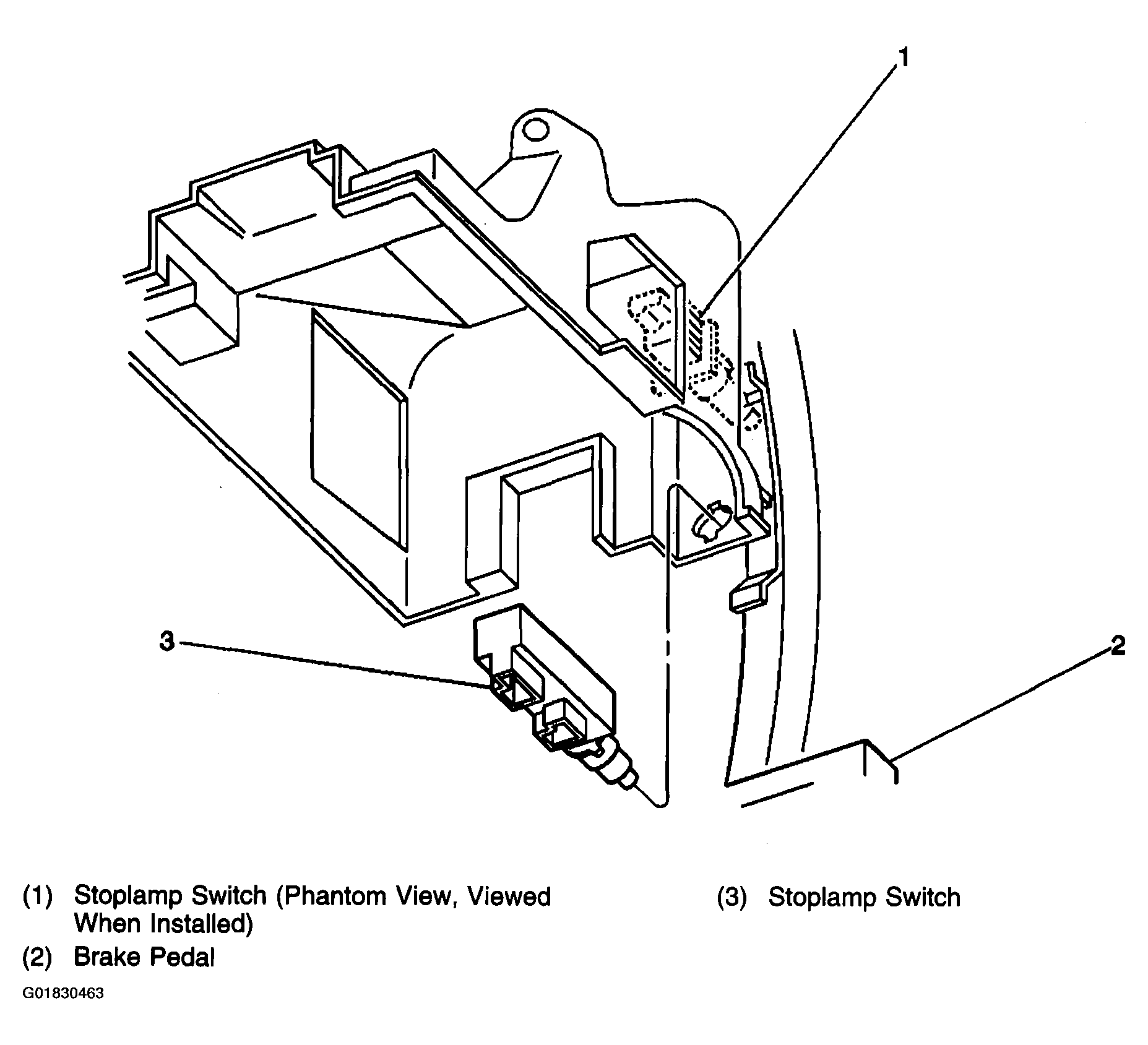

Fig 14: Above Brake Pedal Component View
Courtesy of GENERAL MOTORS CORP.

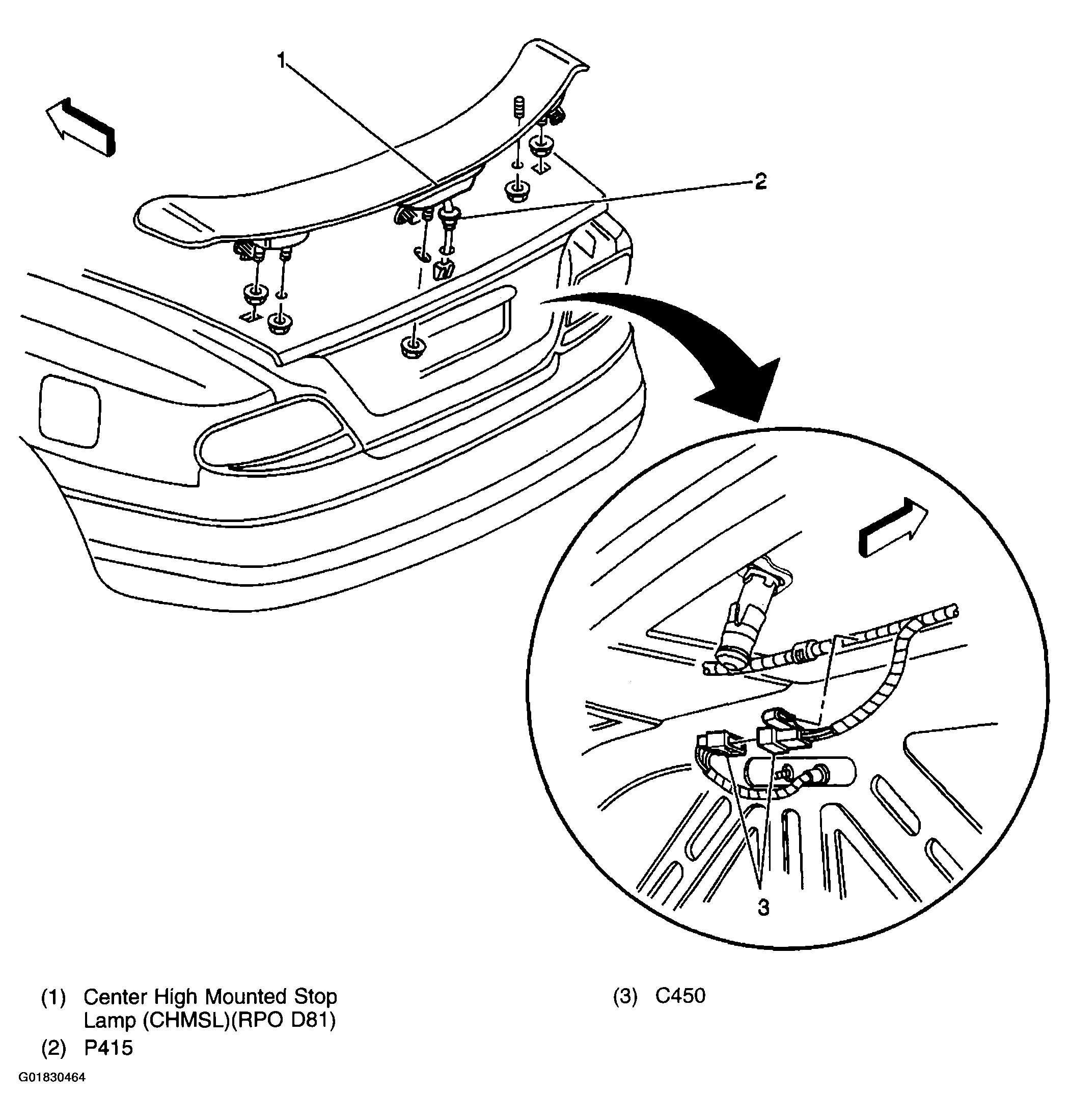

Fig 15: Top Of Rear Compartment Lid Component View
