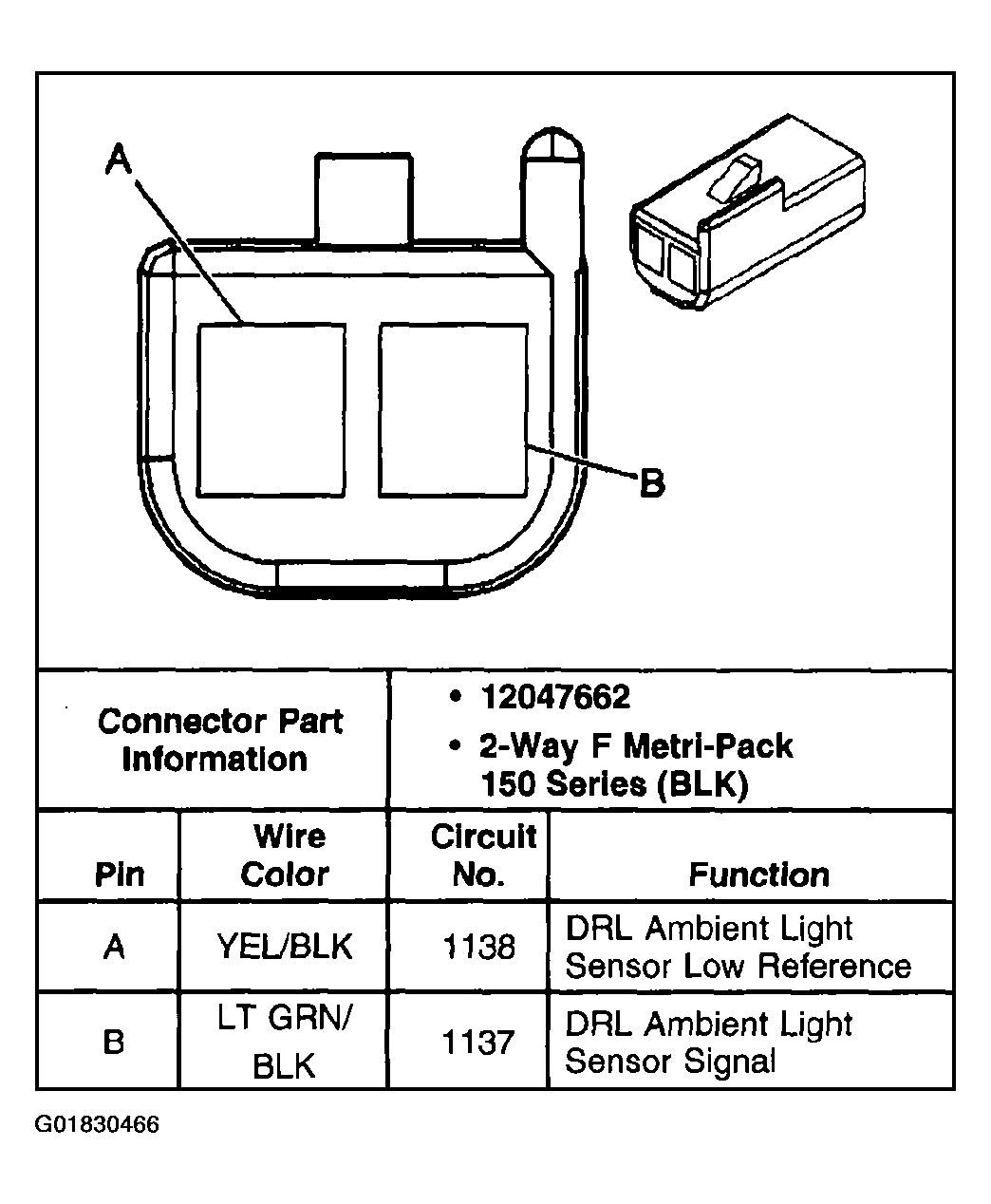

Fig 1: Ambient Light Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.

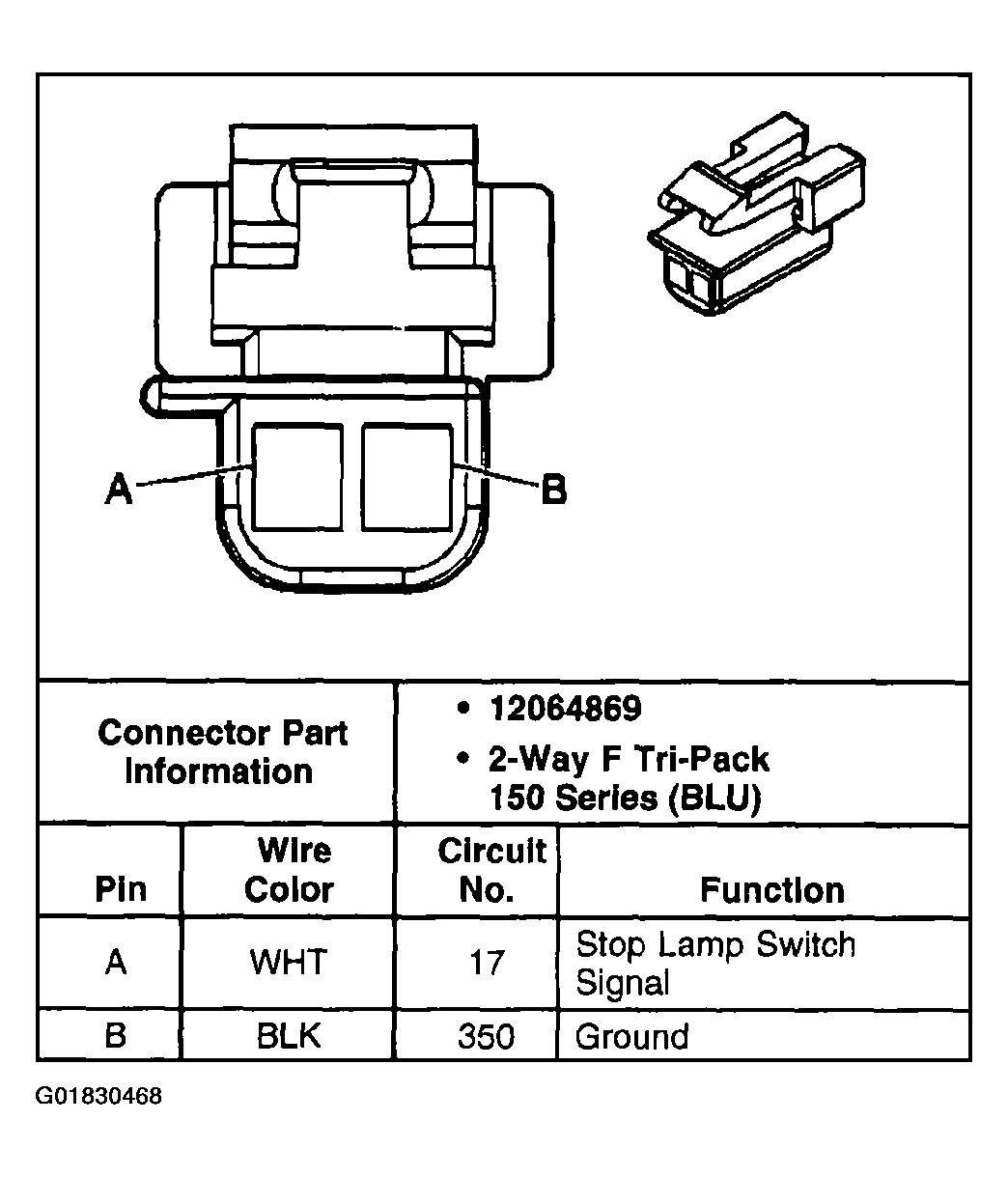

Fig 2: Center High Mounted Stop Lamp (CHMSL) (w/D81) Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Center High Mounted Stop Lamp (CHMSL) (w/o D81) Connector End View
Courtesy of GENERAL MOTORS CORP.

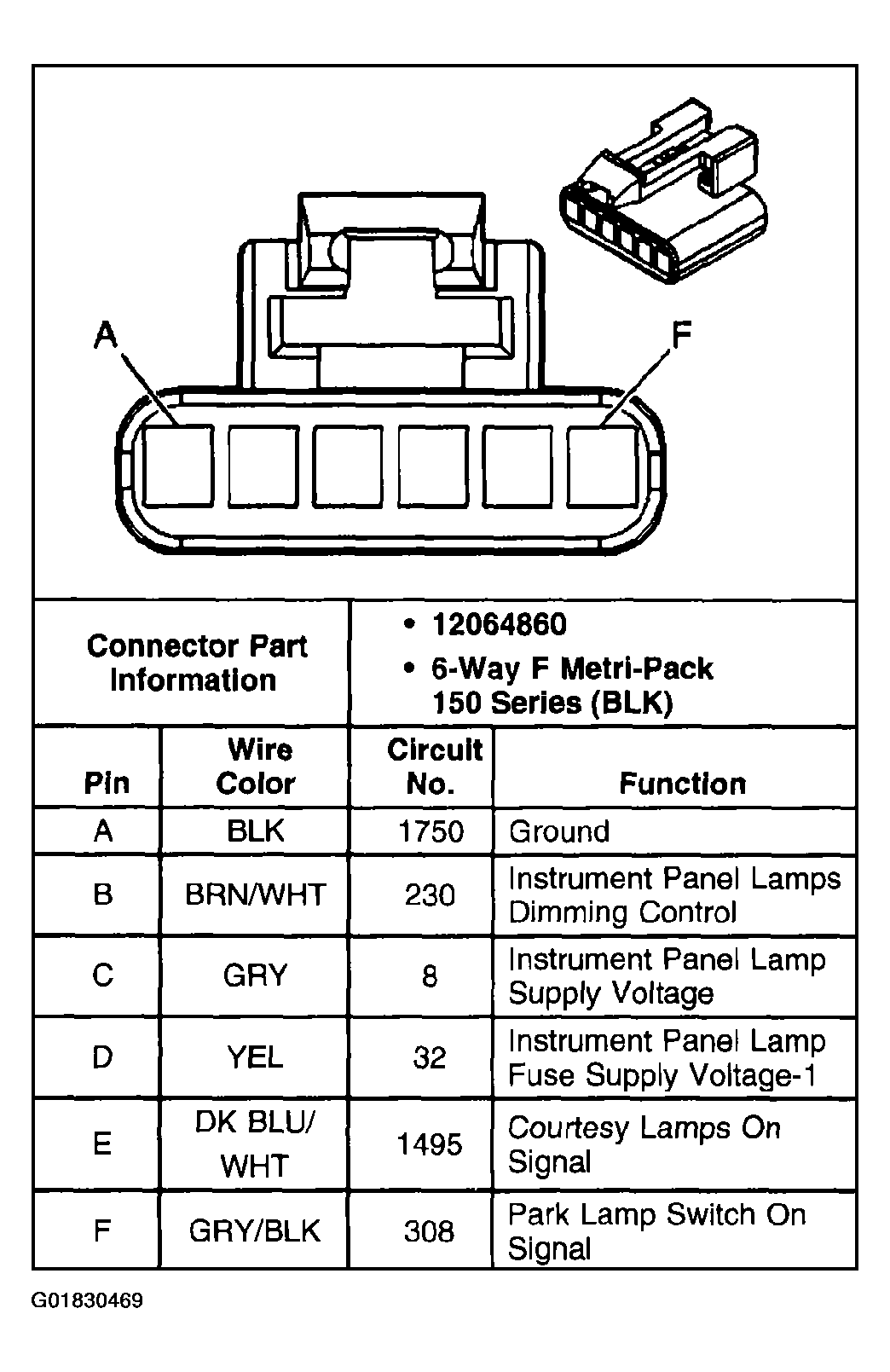

Fig 4: Dimmer Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

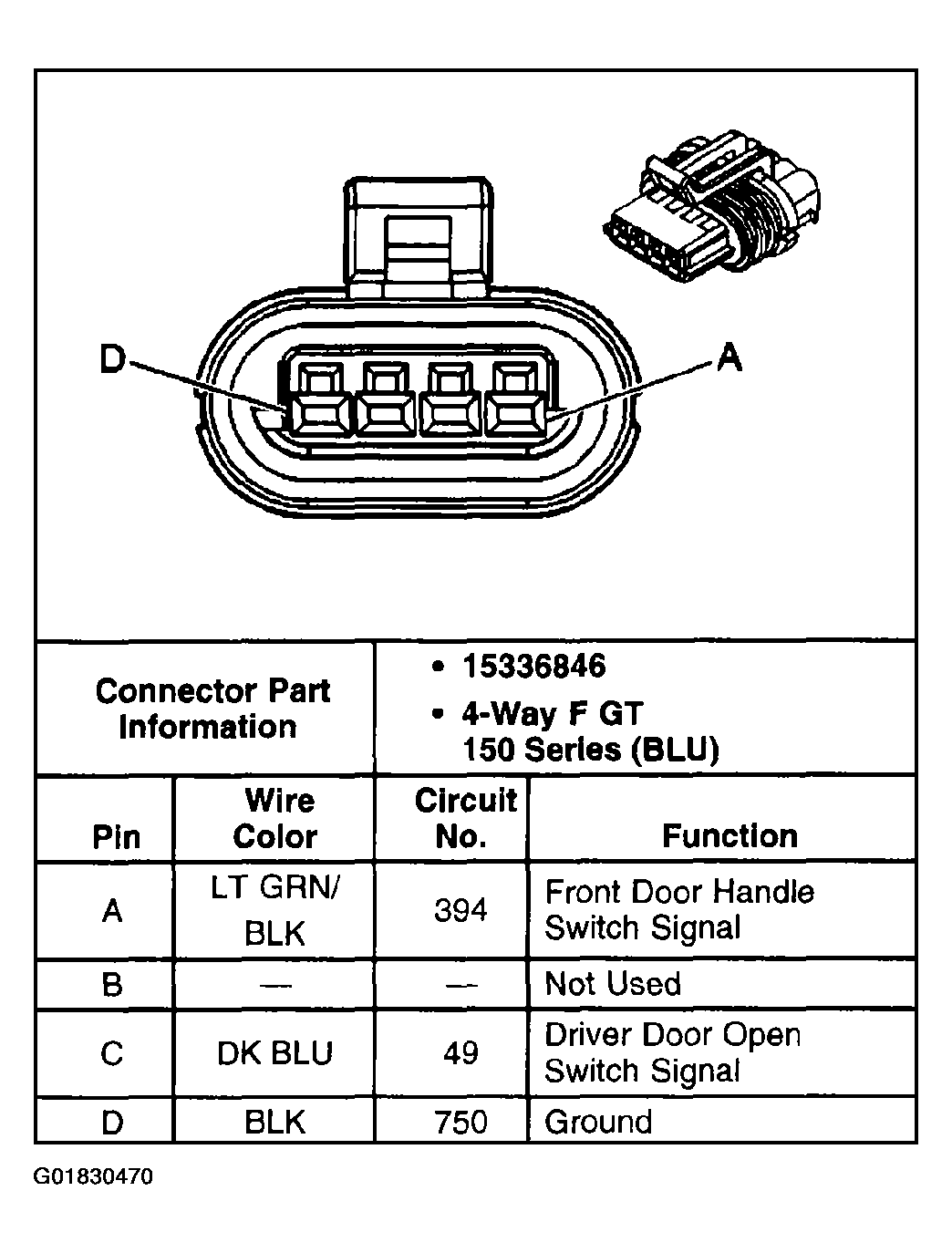

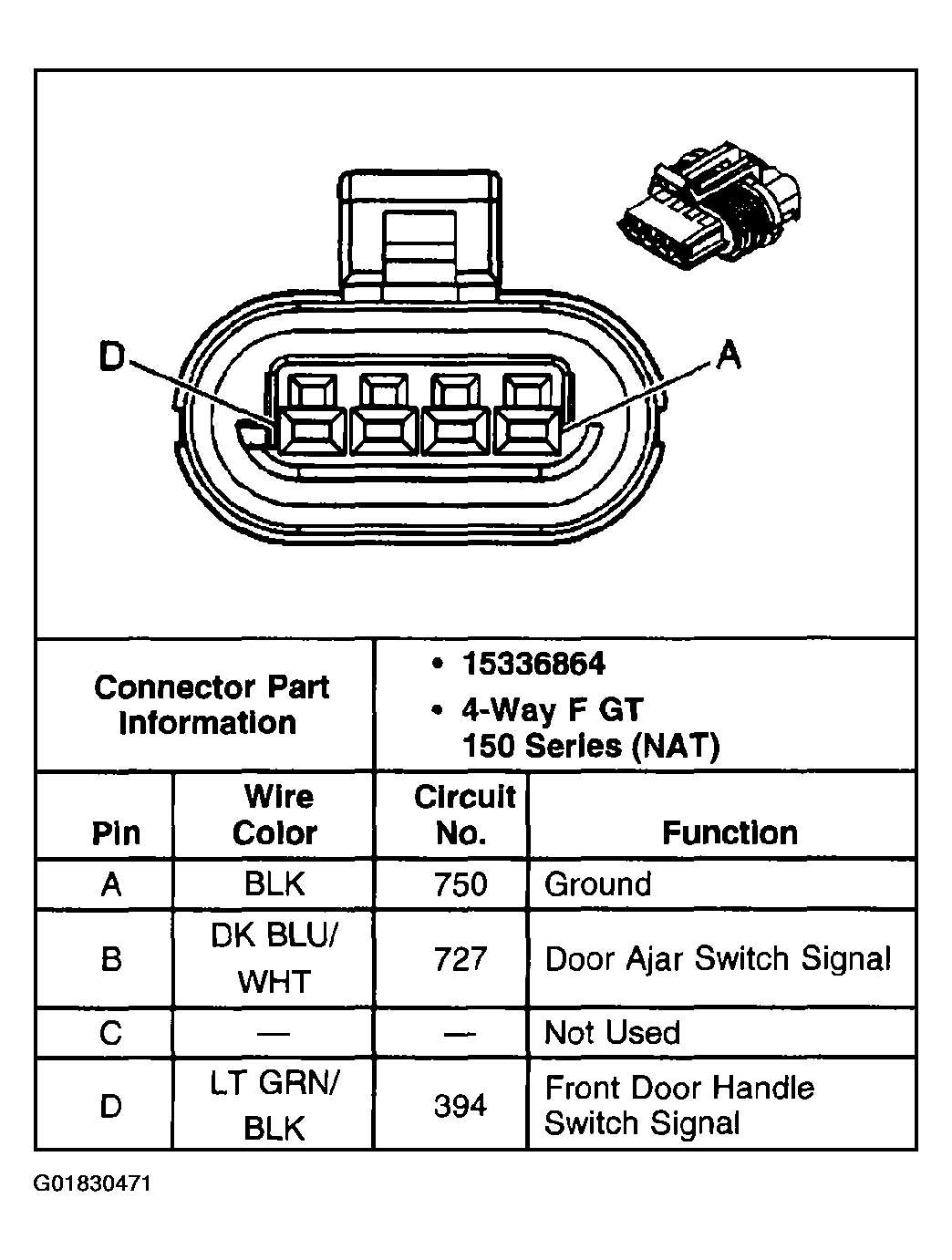

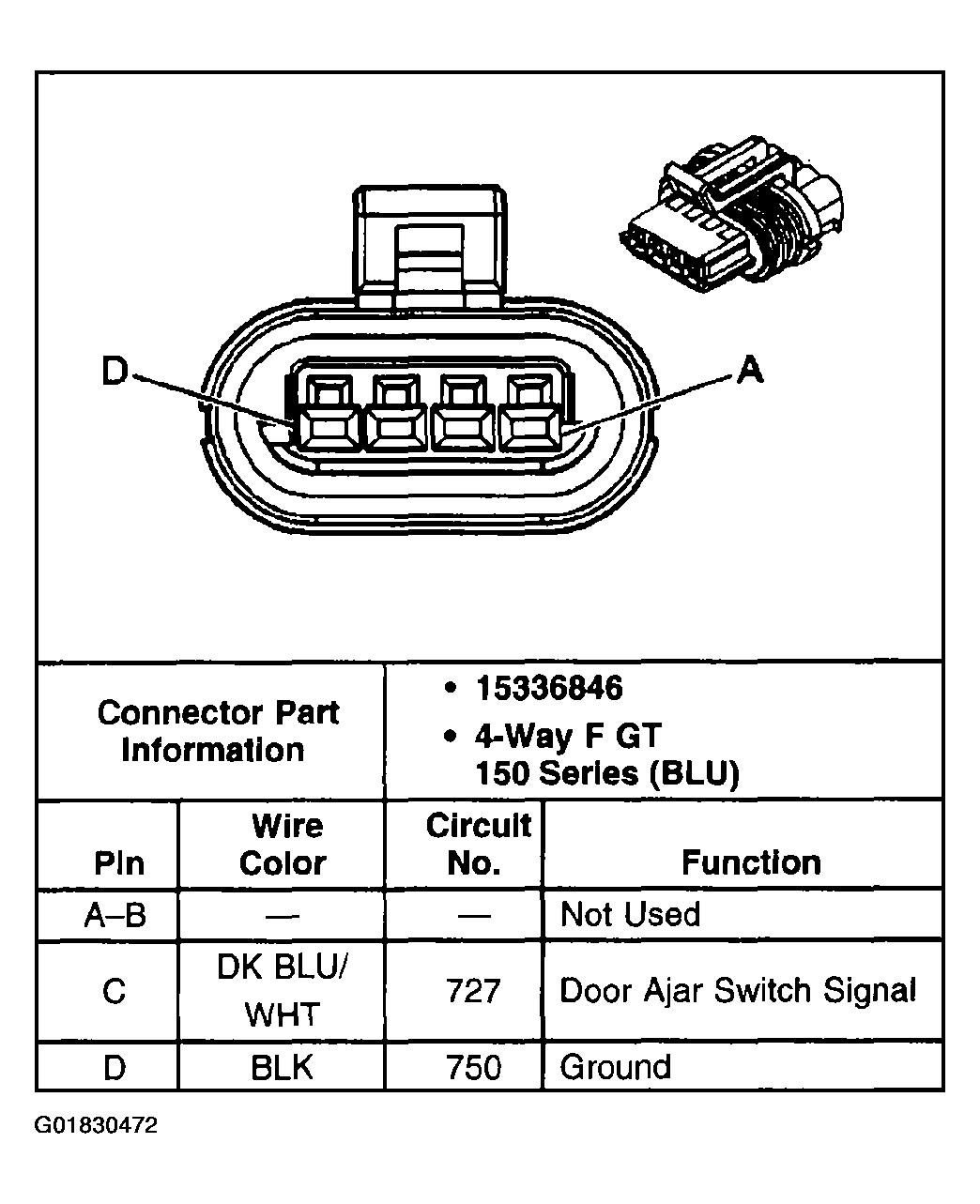

Fig 5: Door Lock - Driver C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Door Lock - Front Passenger C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

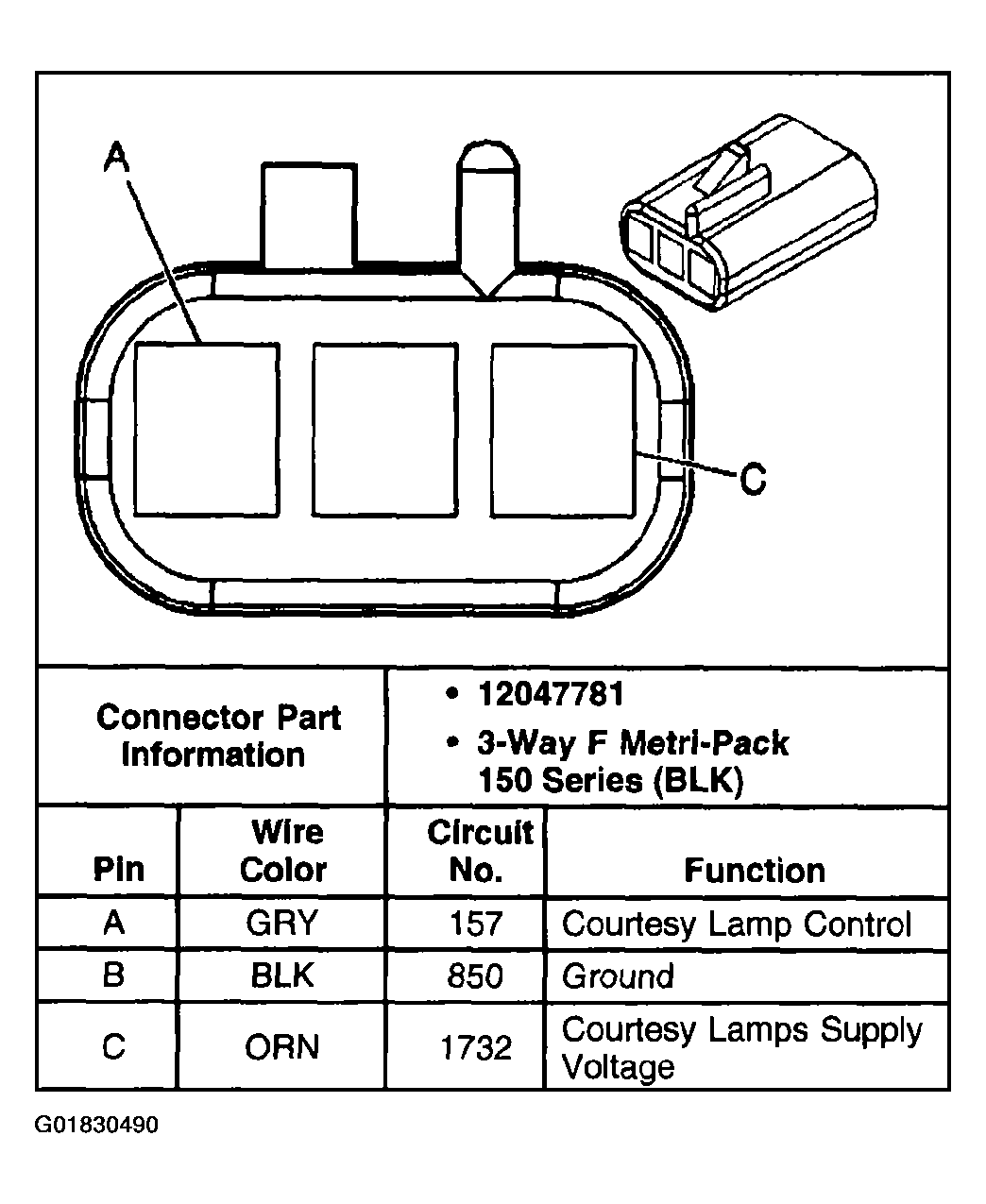

Fig 7: Door Lock - LR C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Lock - RR C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

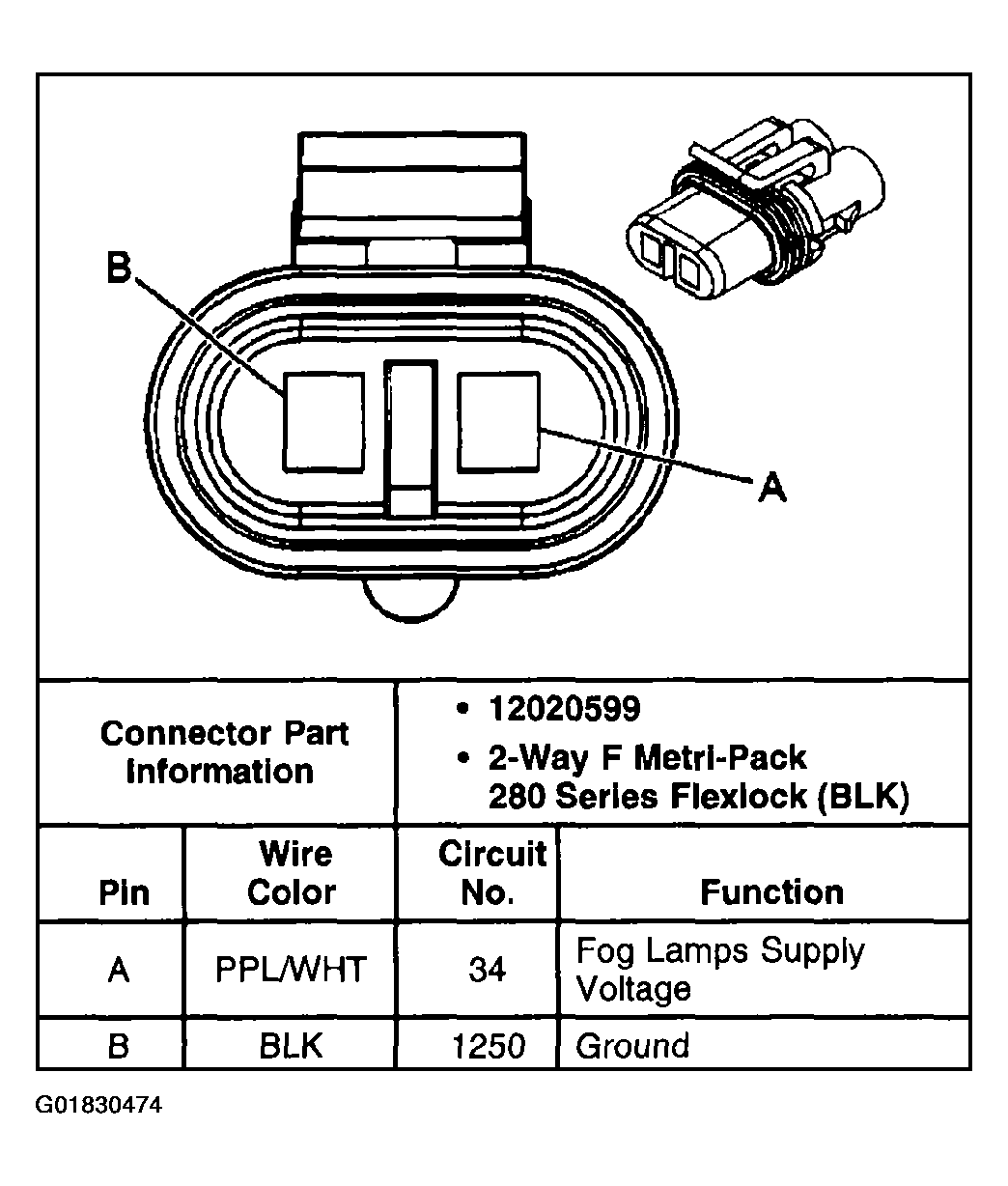

Fig 9: Fog Lamp - LF Connector End View
Courtesy of GENERAL MOTORS CORP.

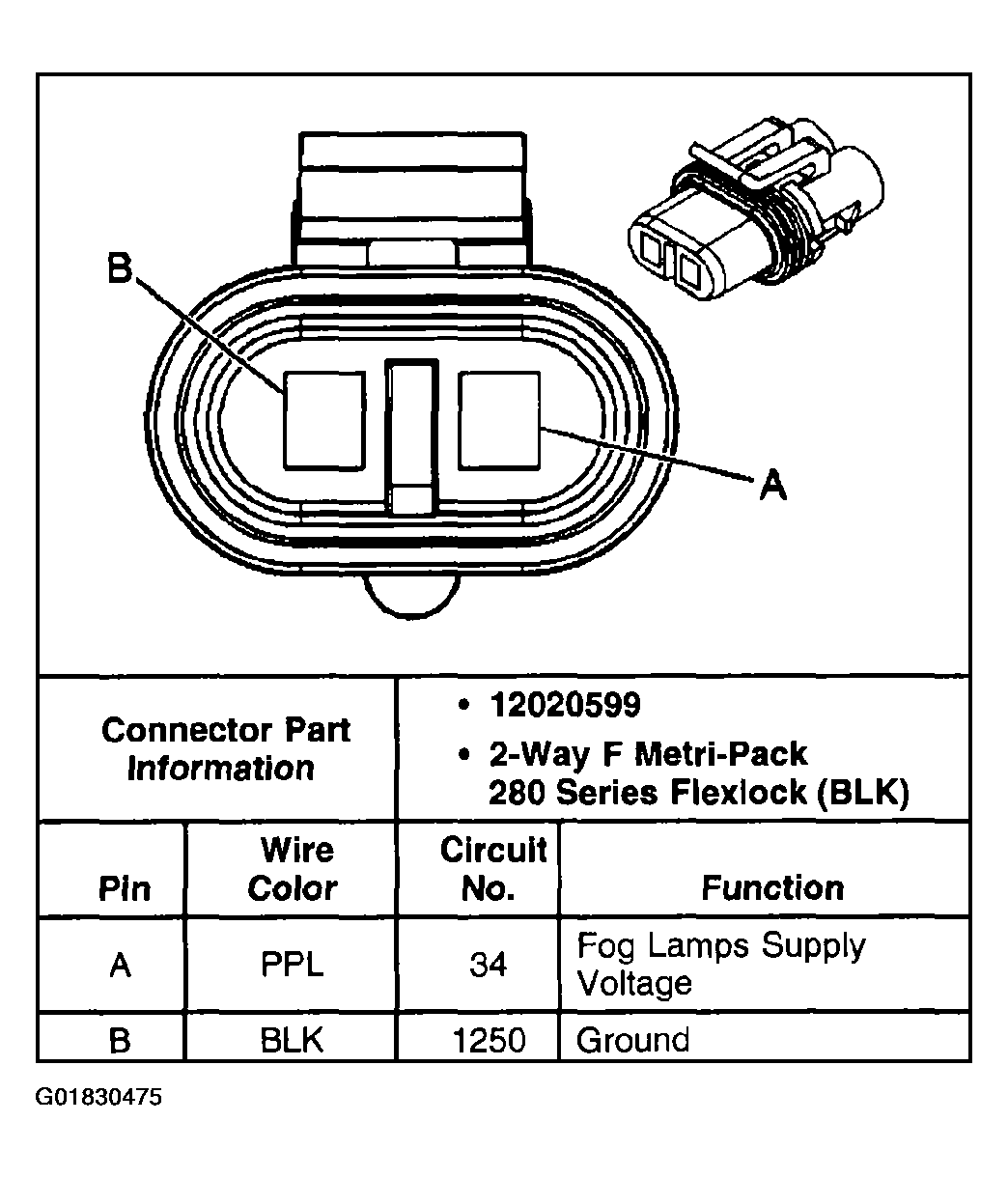

Fig 10: Fog Lamp - RF Connector End View
Courtesy of GENERAL MOTORS CORP.

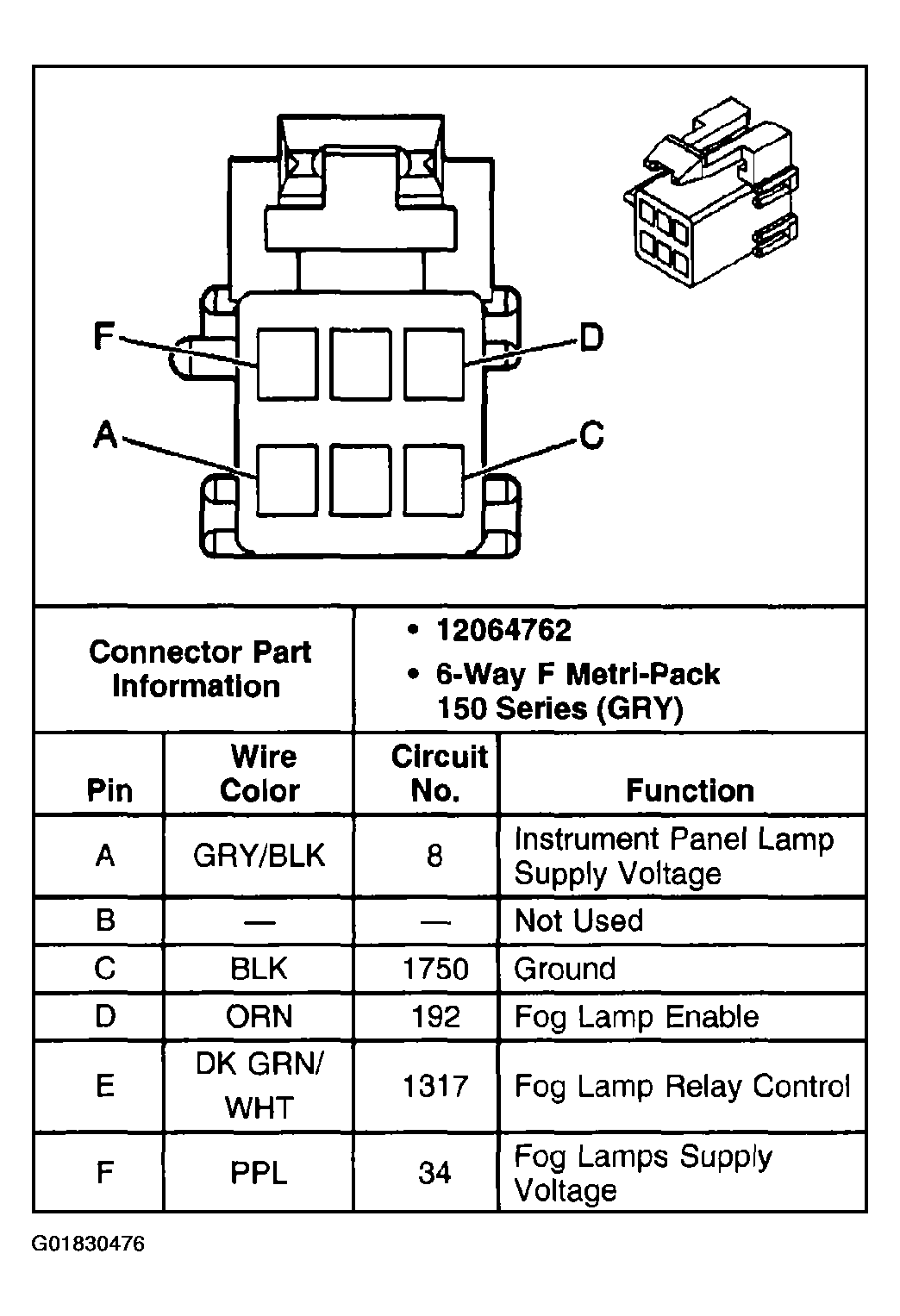

Fig 11: Fog Lamp Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

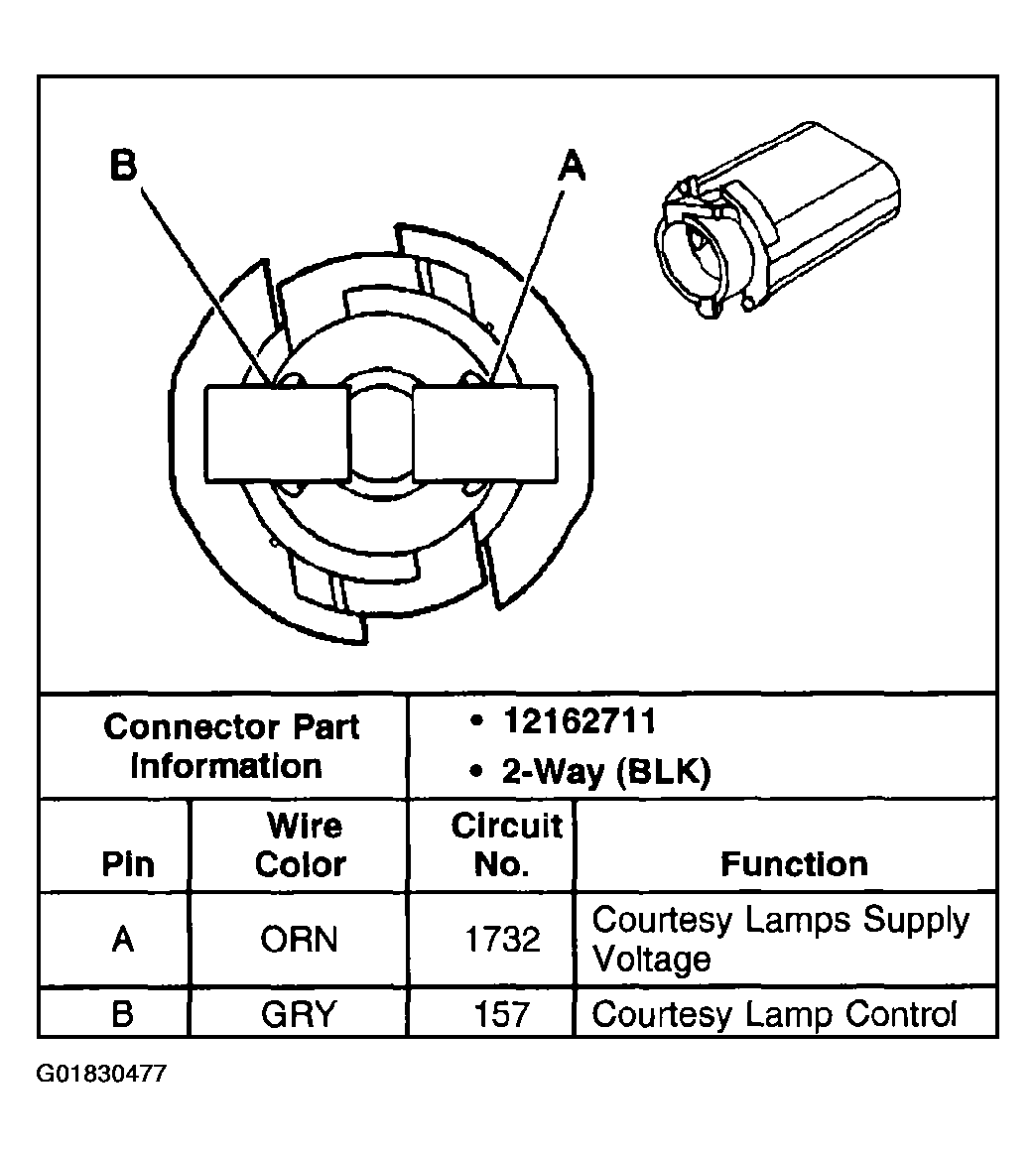

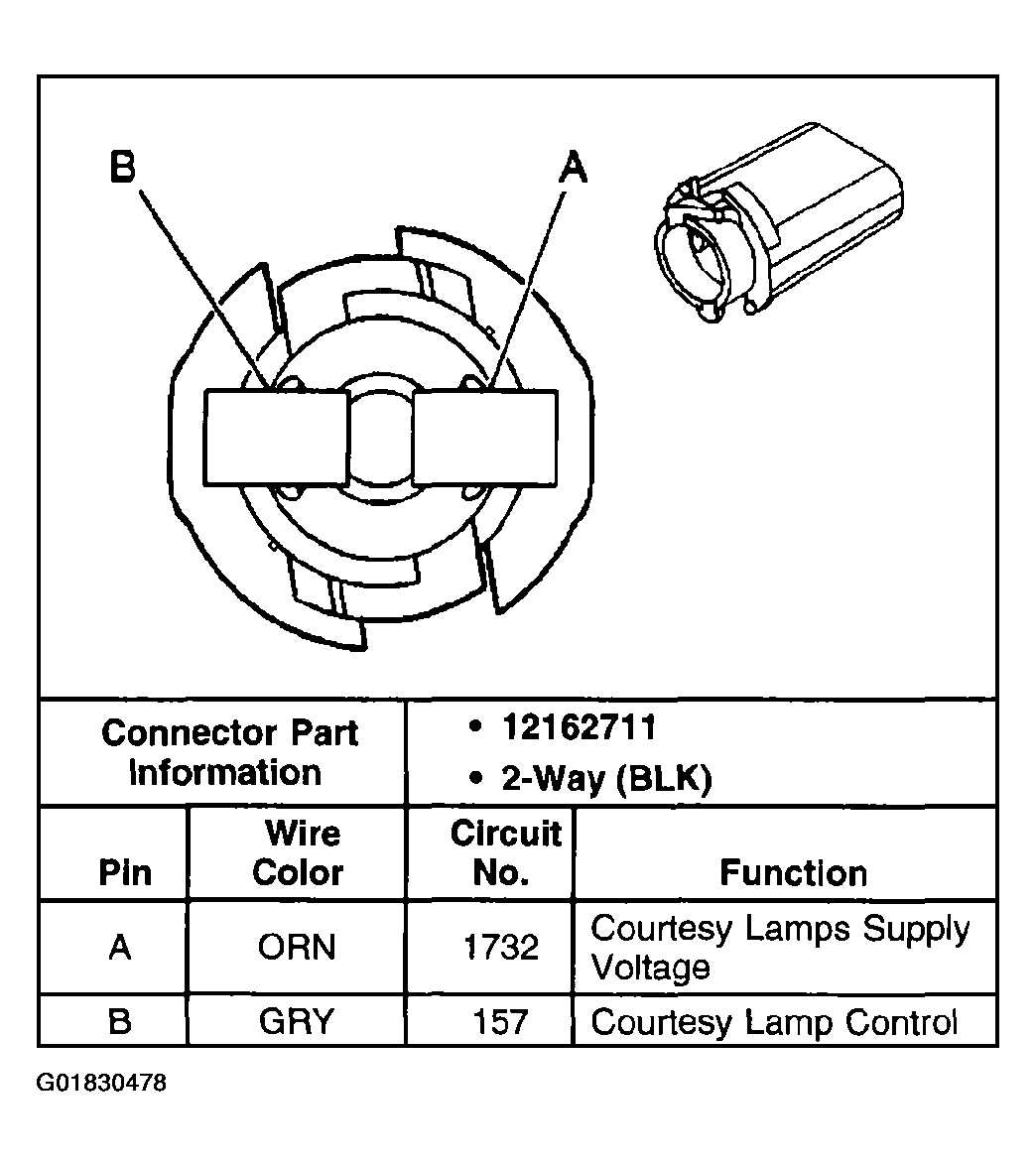

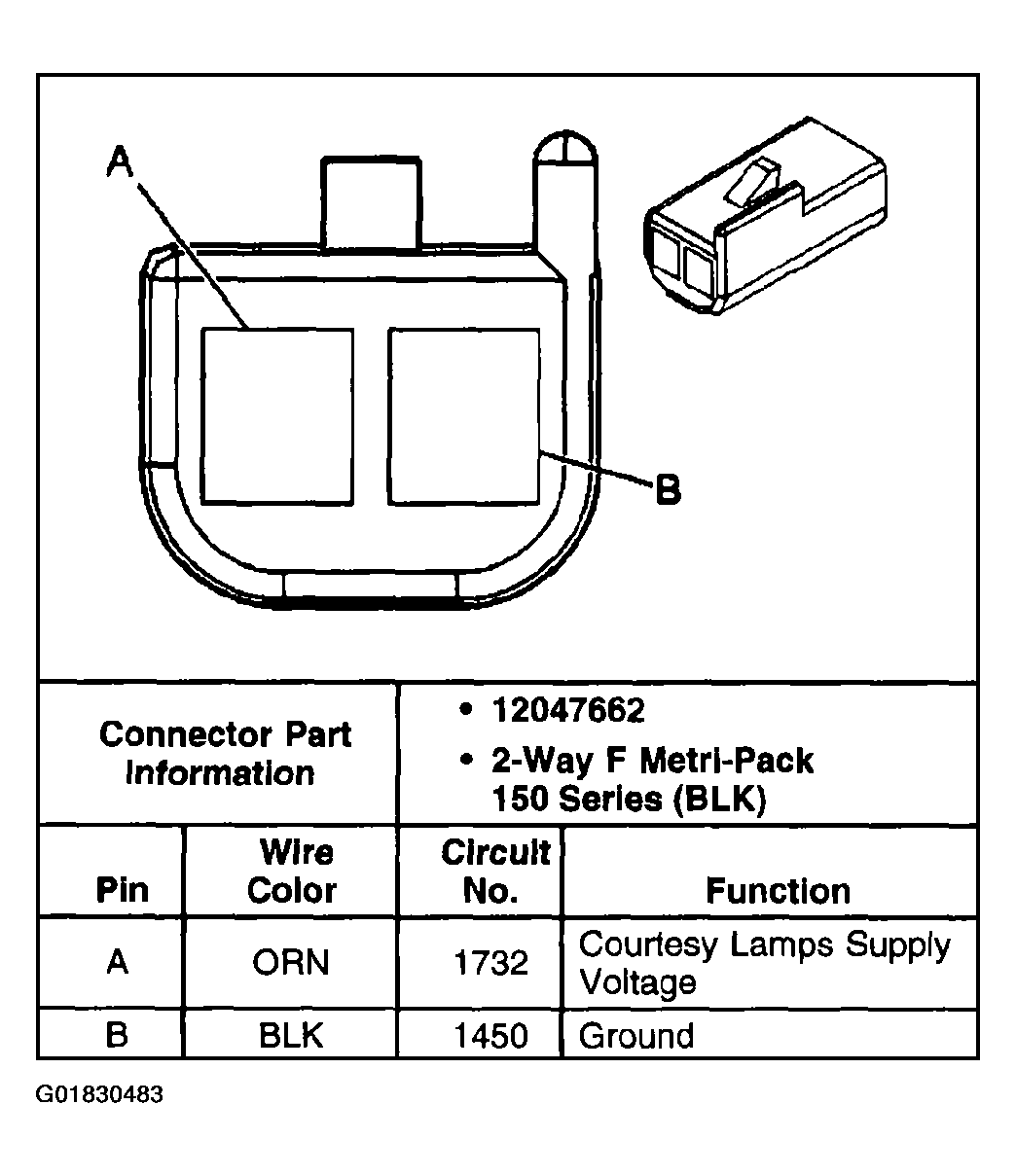

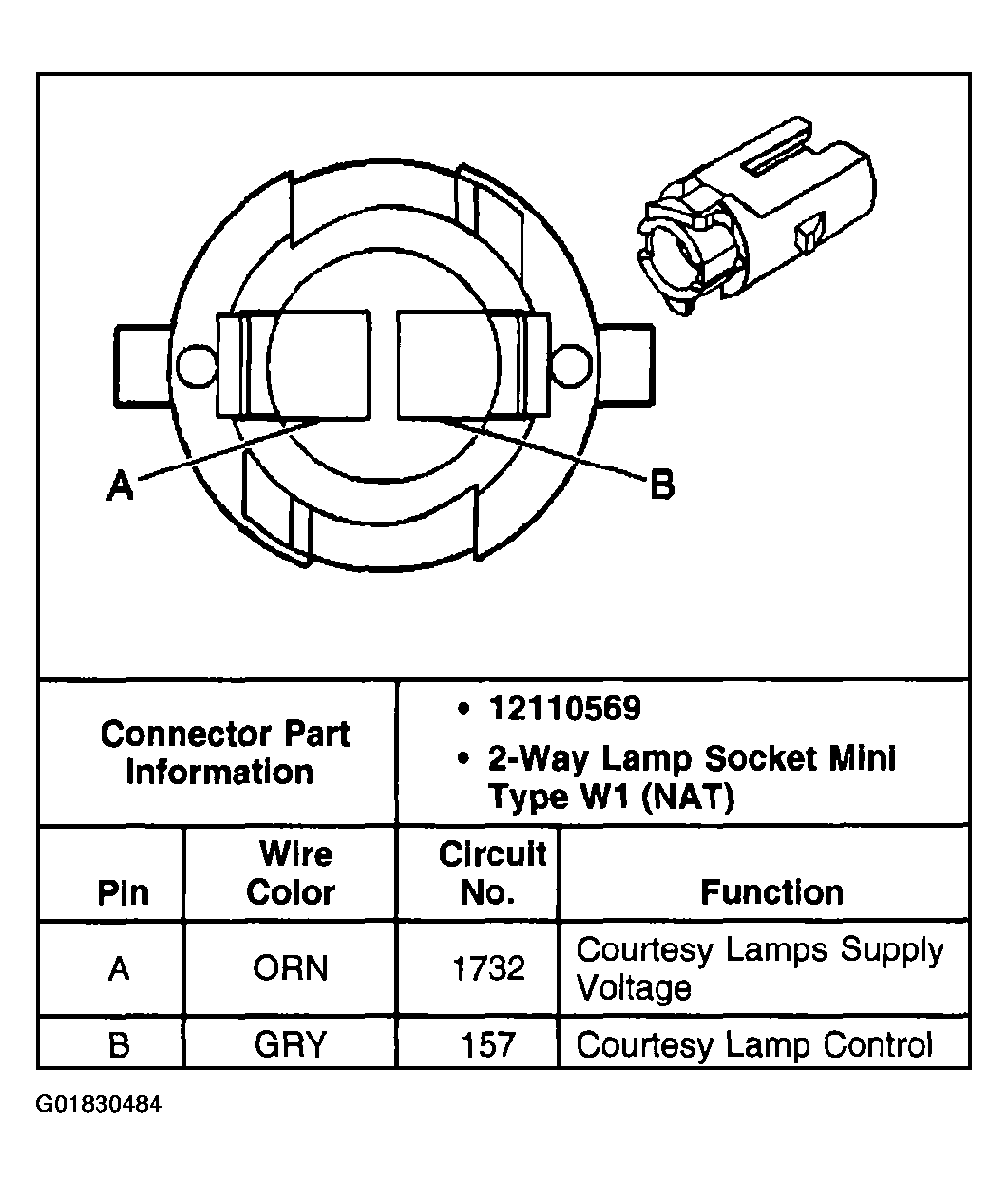

Fig 12: Footwell Courtesy Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 13: Footwell Courtesy Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

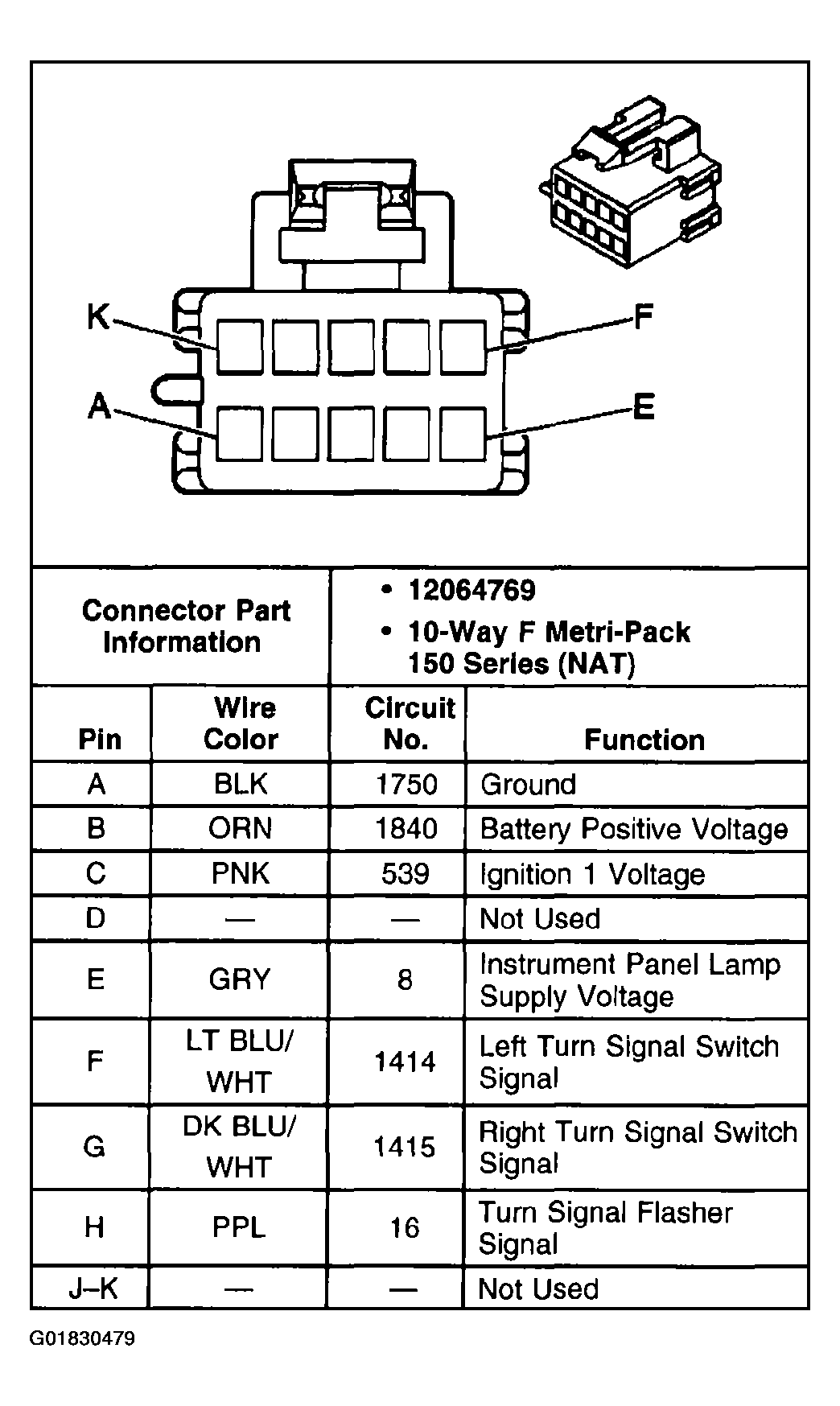

Fig 14: Hazard Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

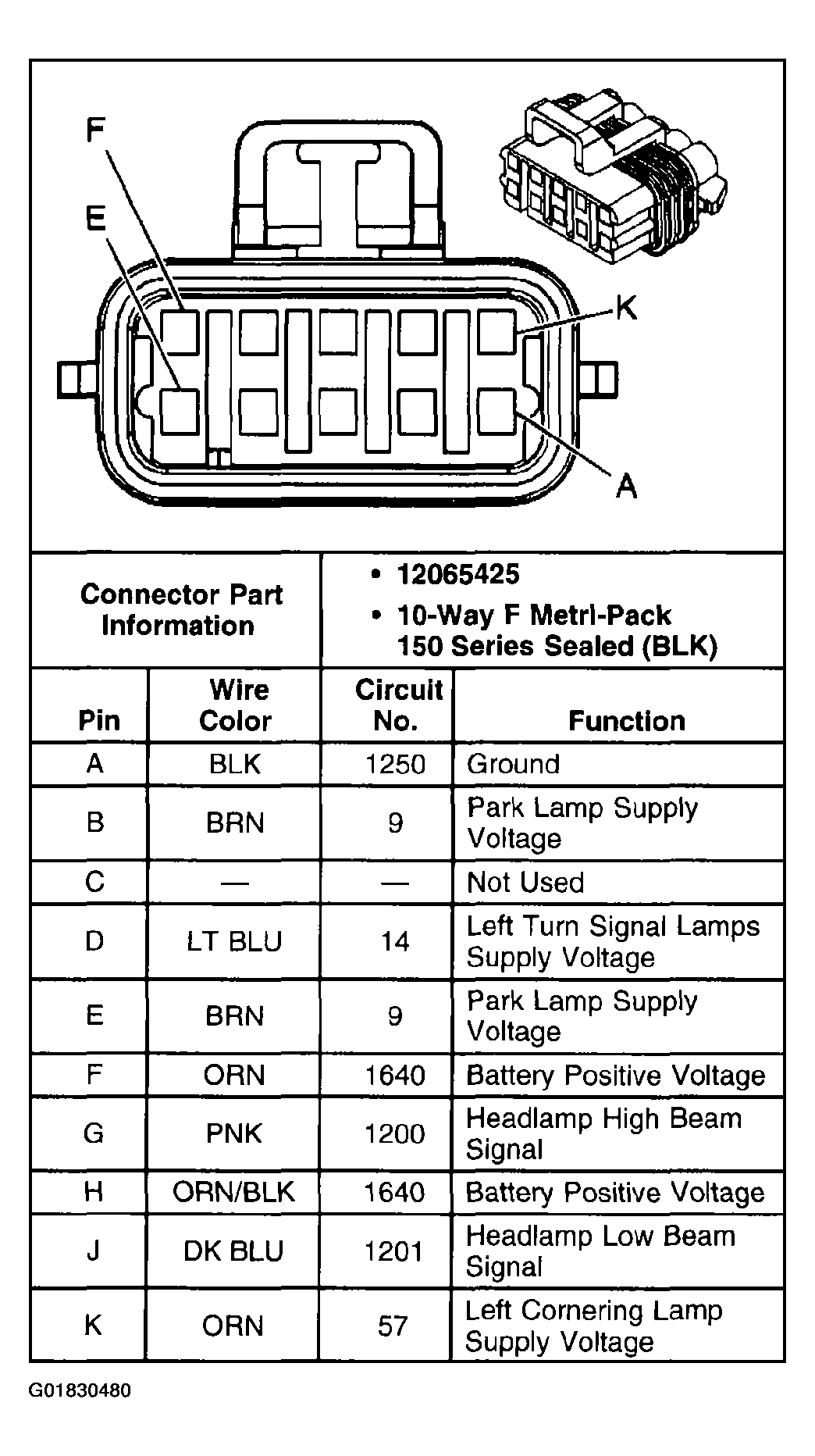

Fig 15: Headlamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 16: Headlamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

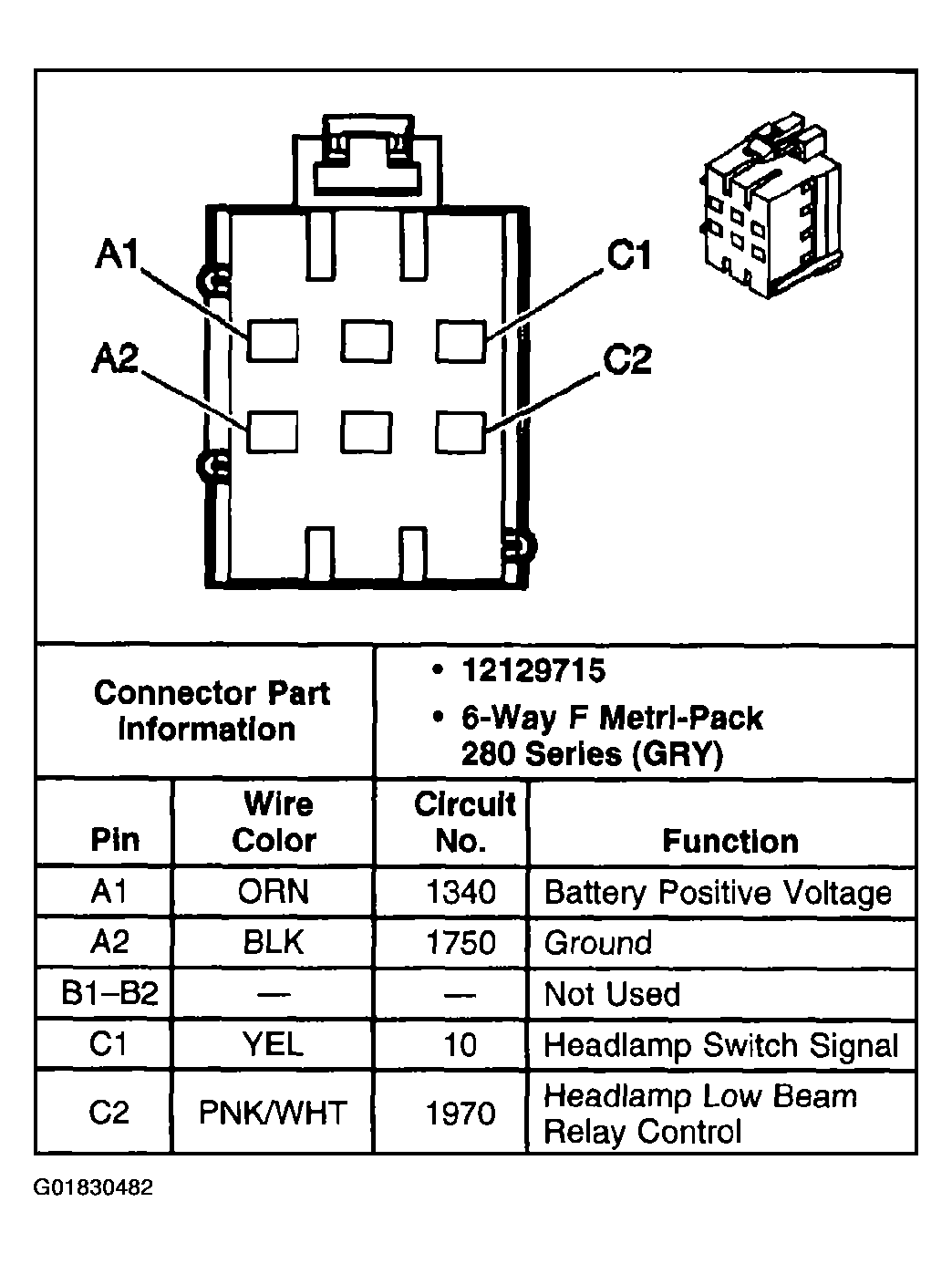

Fig 17: Headlamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 18: I/P Compartment Lamp and Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

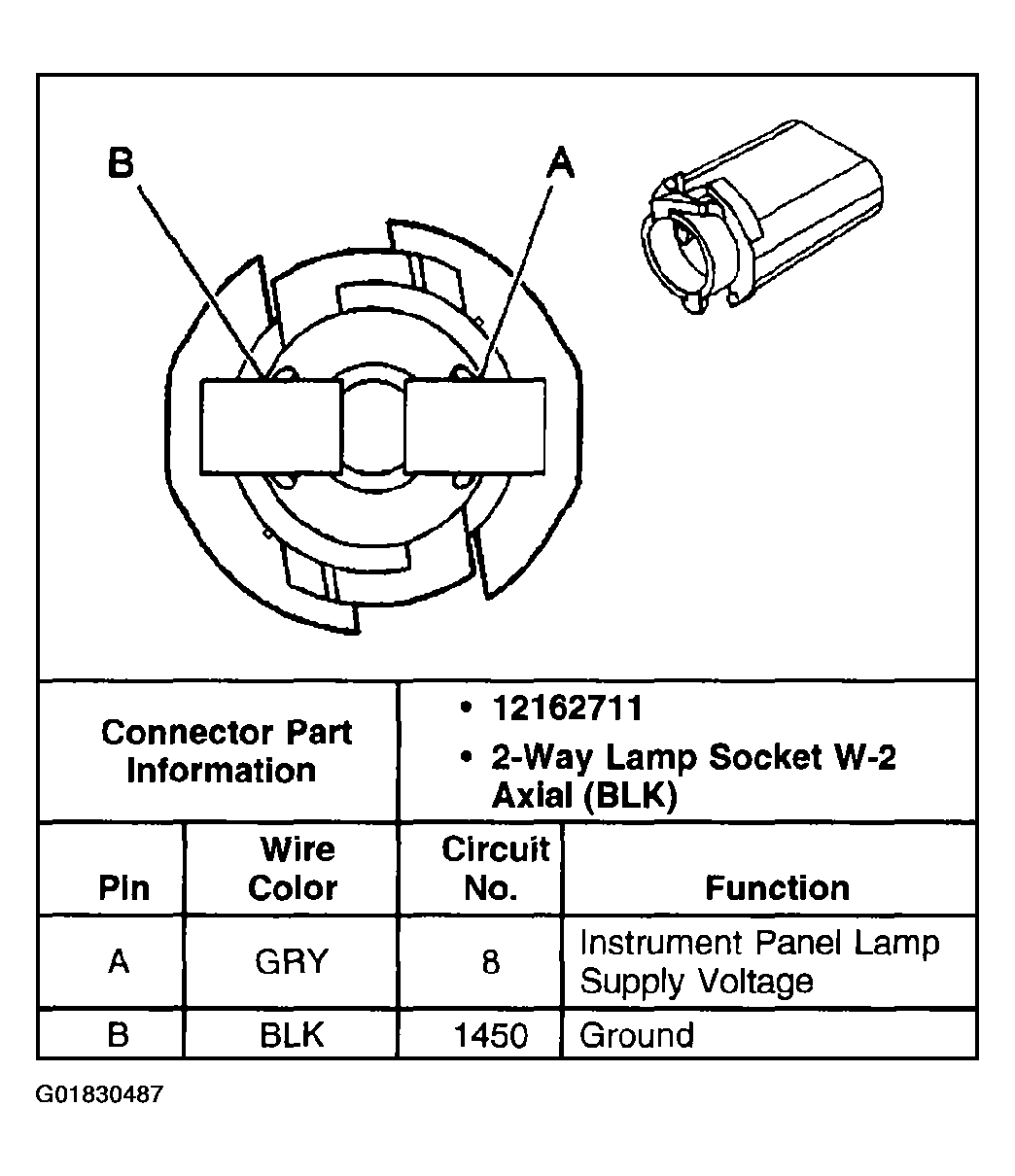

Fig 19: Ignition Switch Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

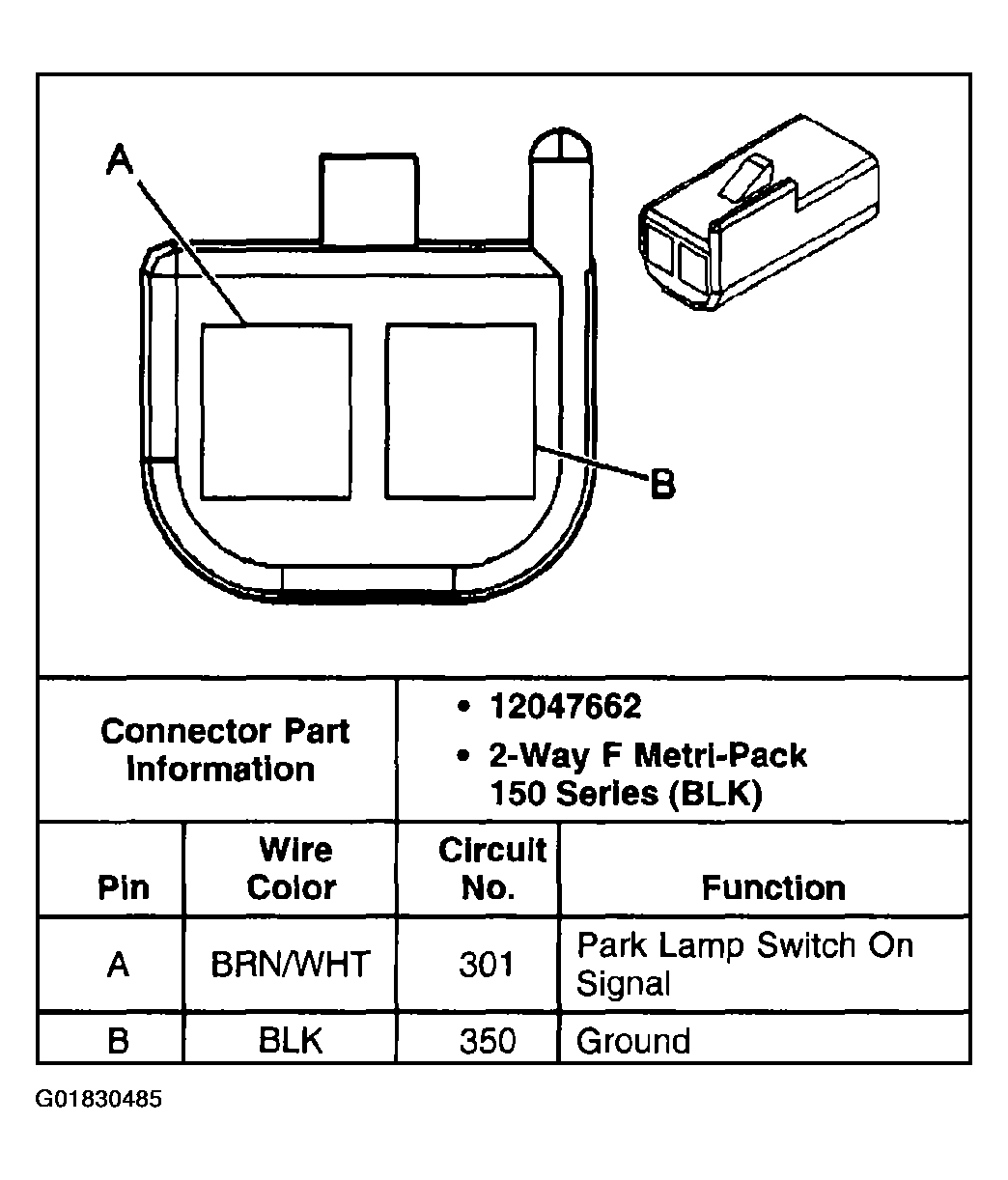

Fig 20: License Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

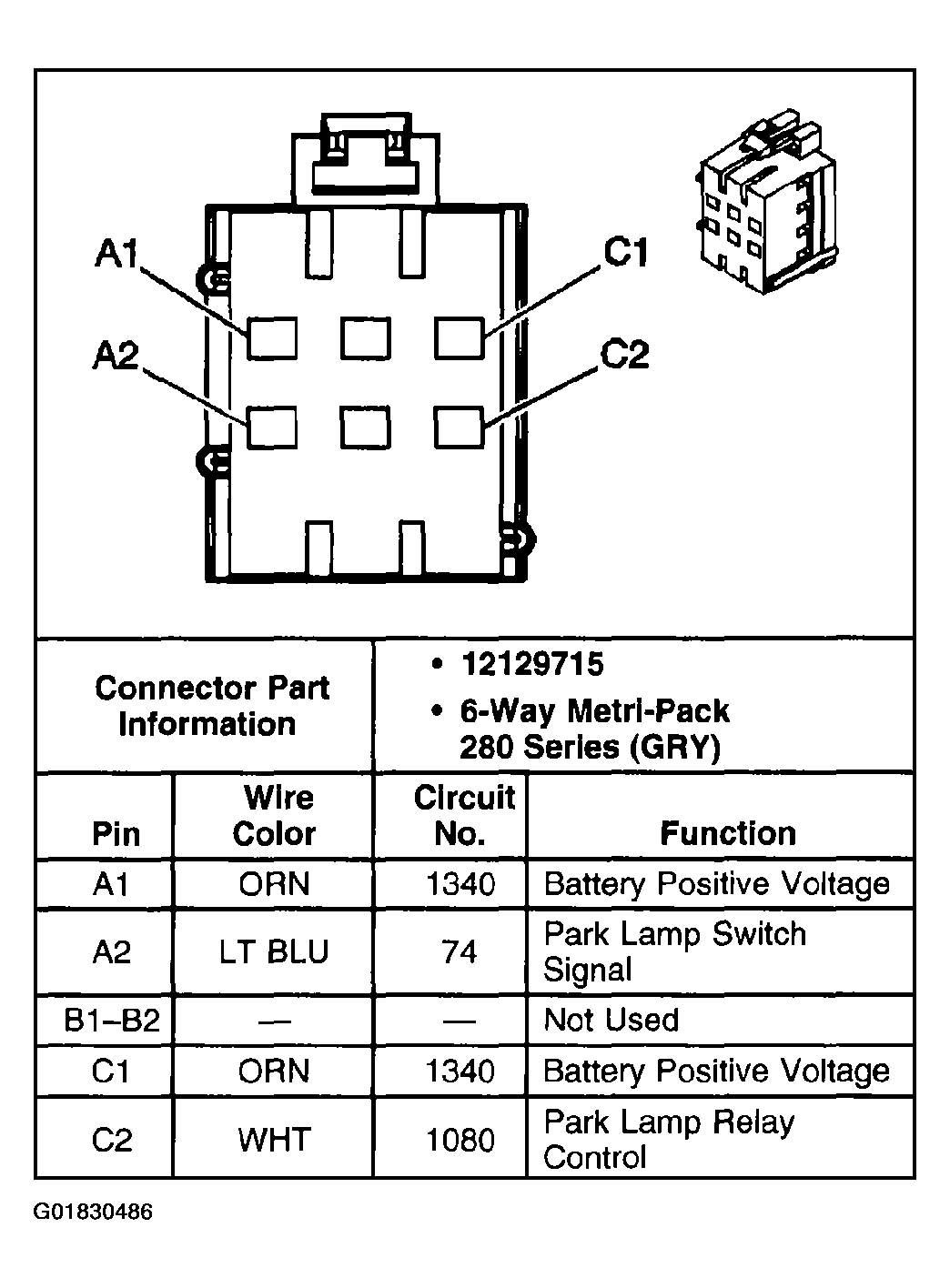

Fig 21: Park Lamp Relay Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 22: PRNDL Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

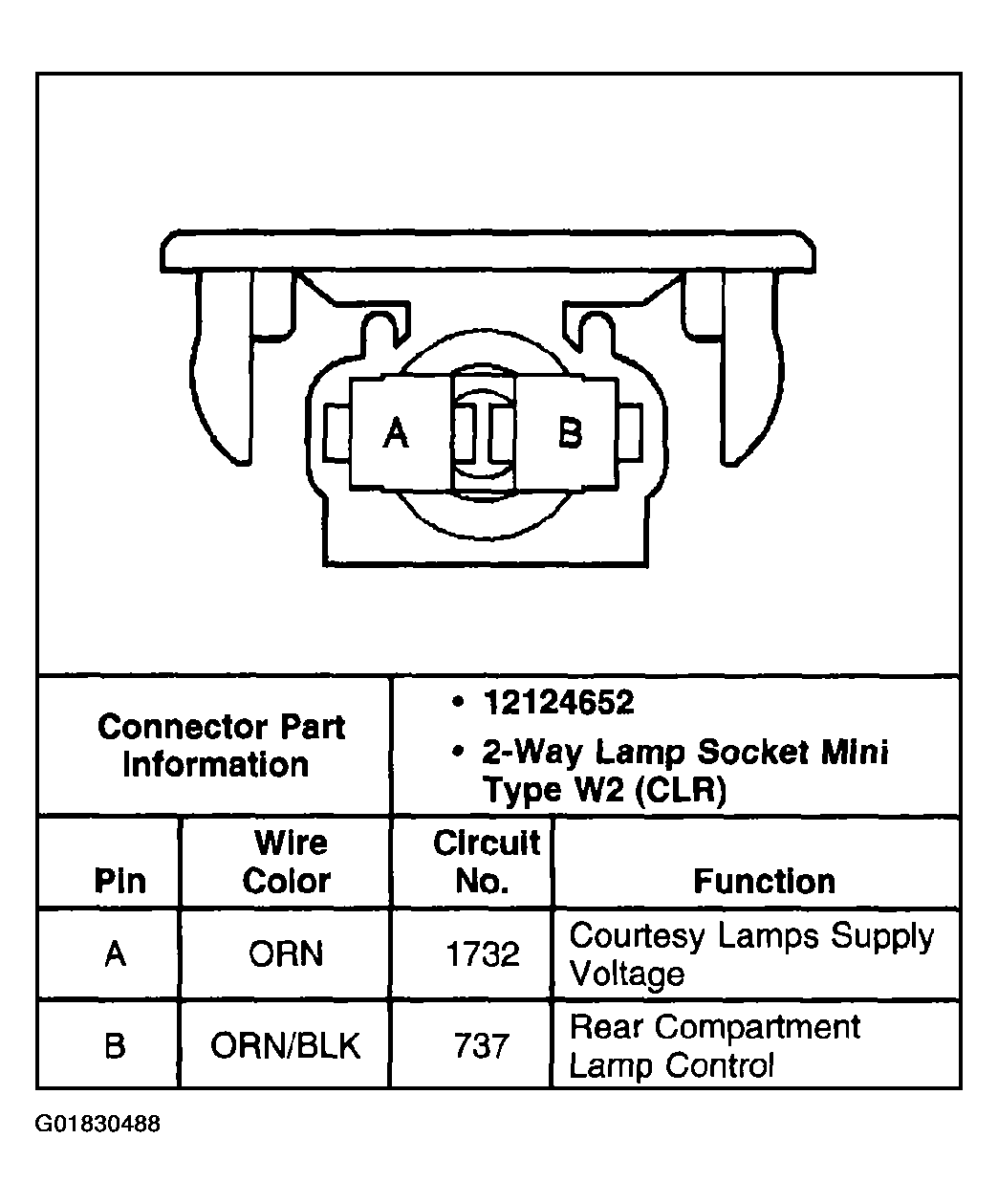

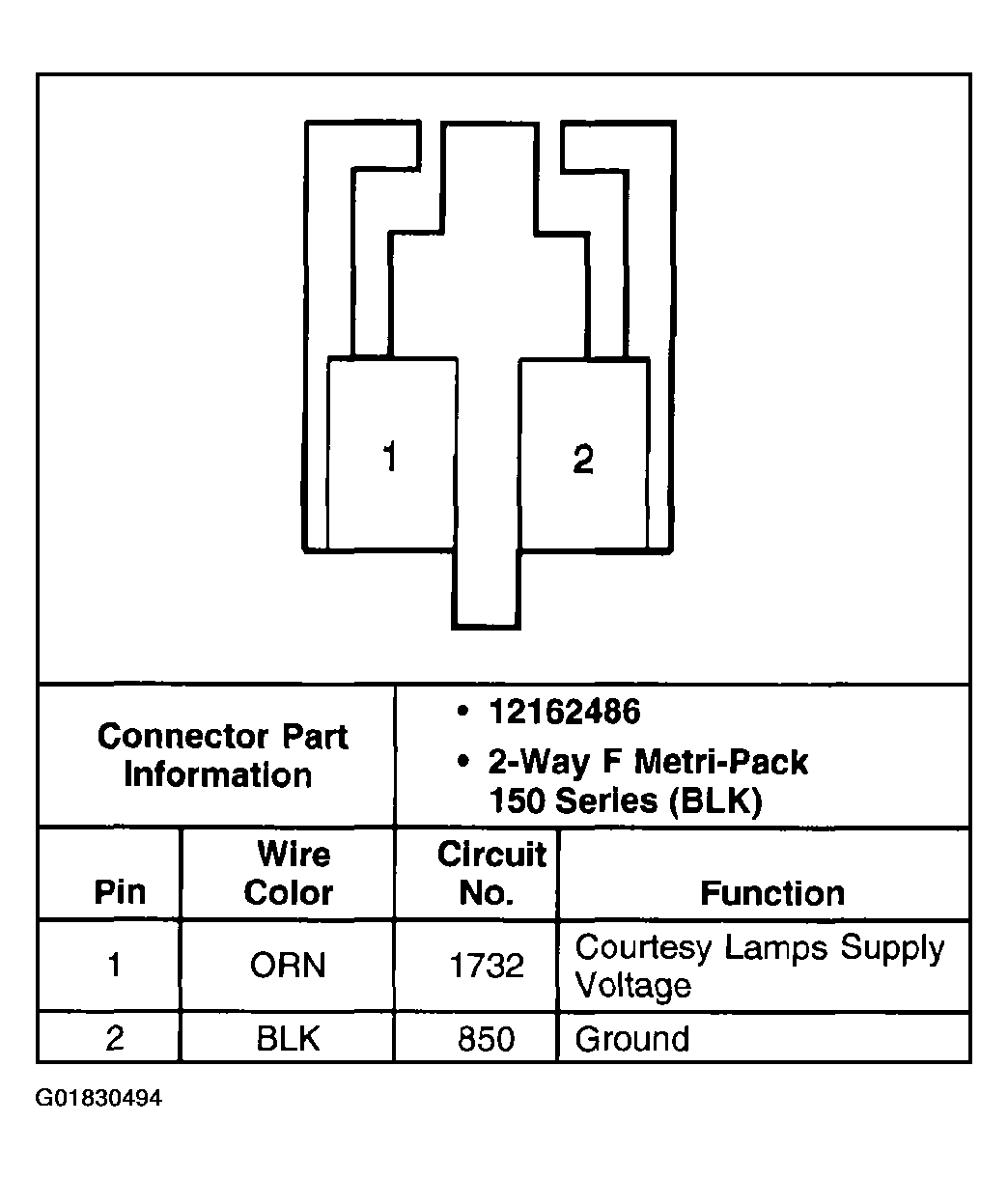

Fig 23: Rear Compartment Courtesy Lamp Connector End View
Courtesy of GENERAL MOTORS CORP.

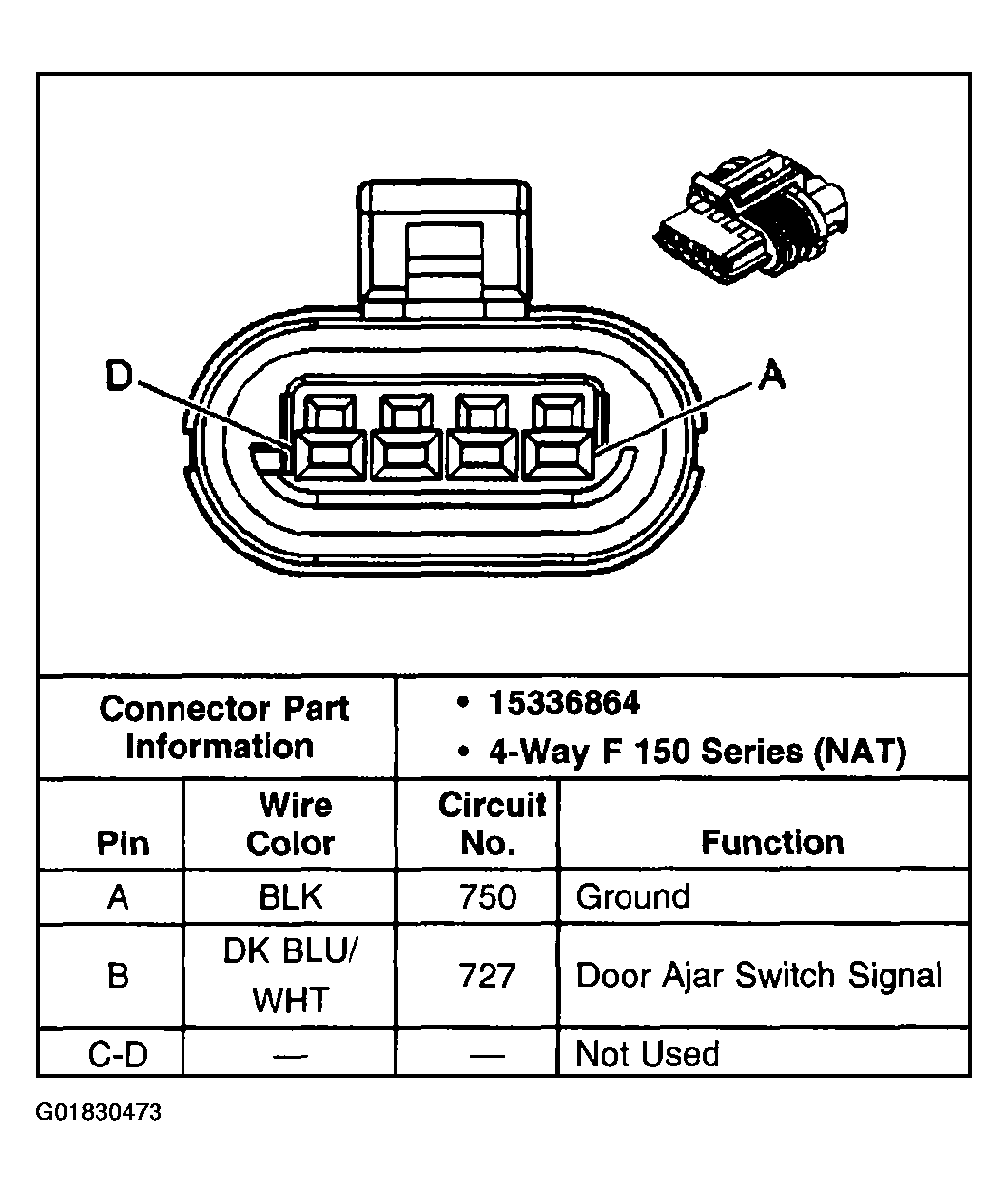

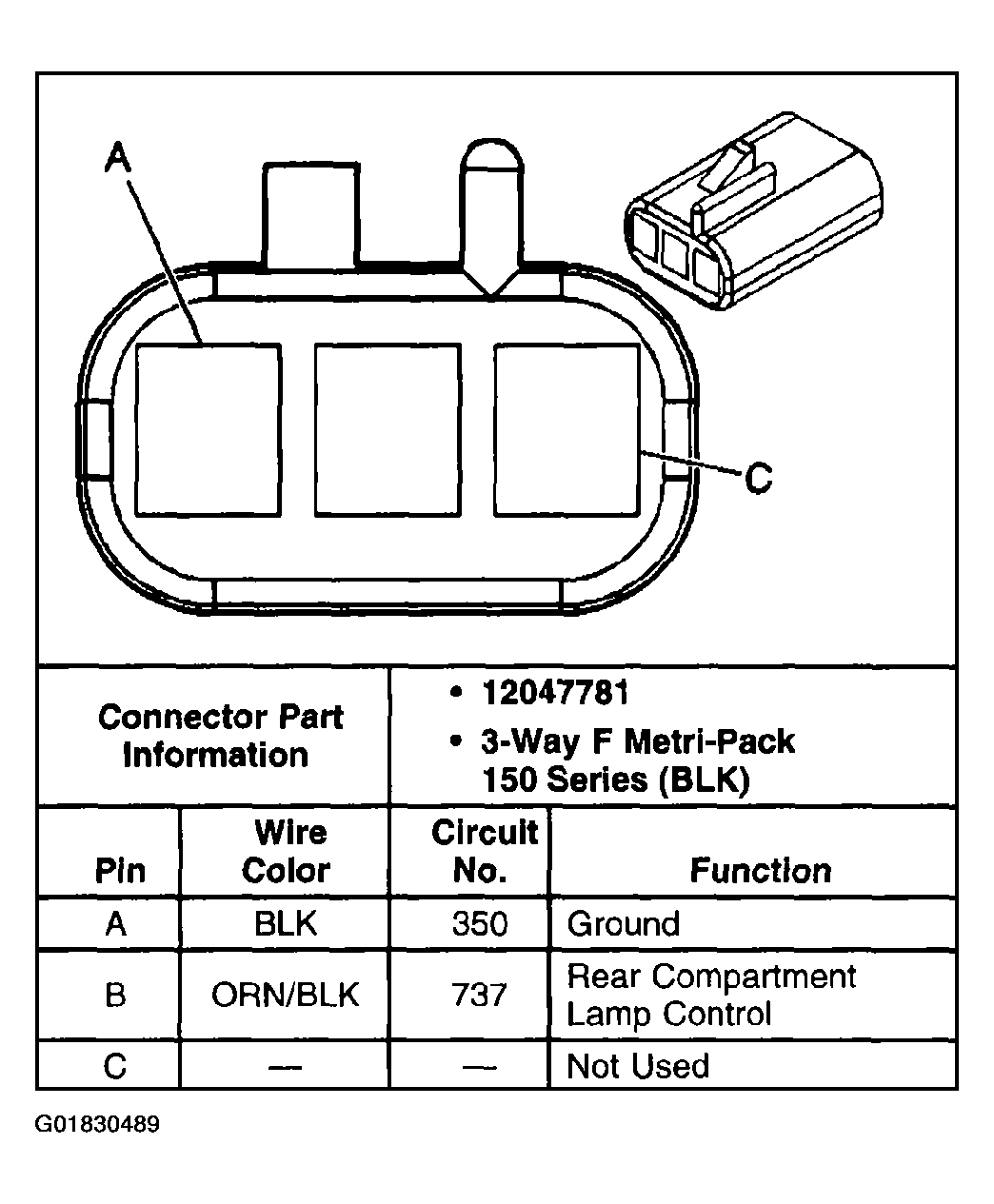

Fig 24: Rear Compartment Lid Ajar Switch Connector End View
Courtesy of GENERAL MOTORS CORP.

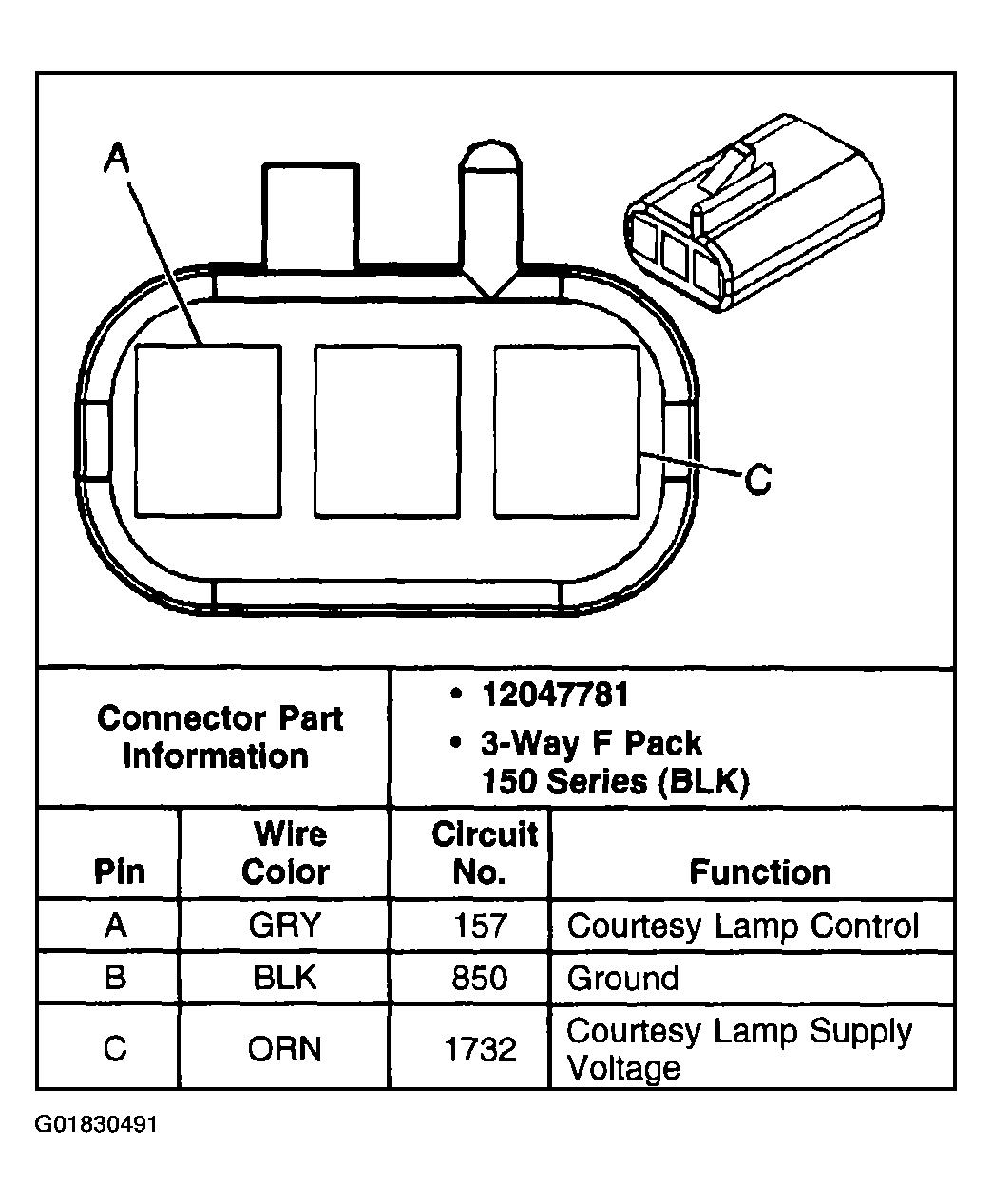

Fig 25: Roof Rail Courtesy/Reading Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 26: Roof Rail Courtesy/Reading Lamp - Right Connector End View
Courtesy of GENERAL MOTORS CORP.

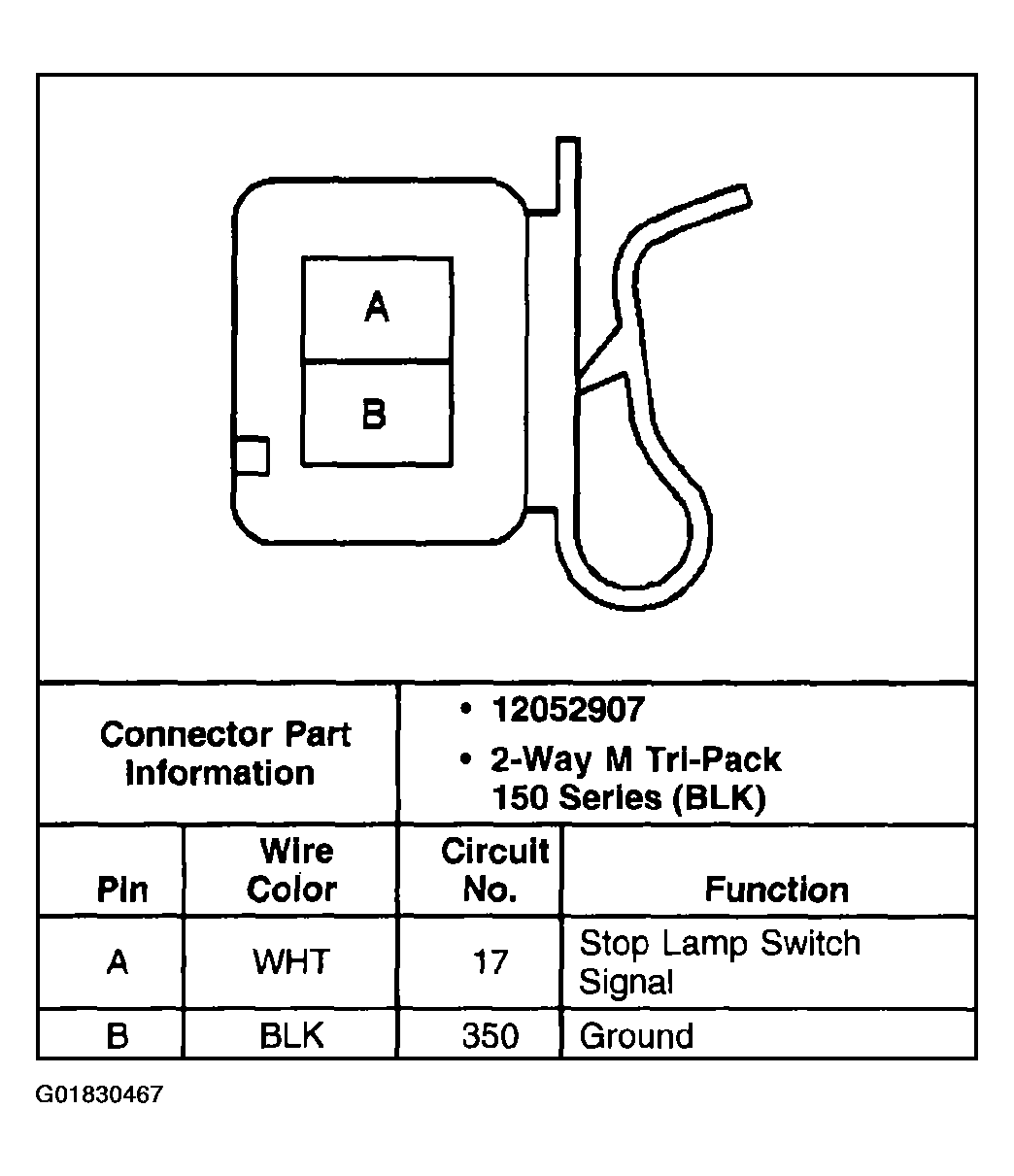

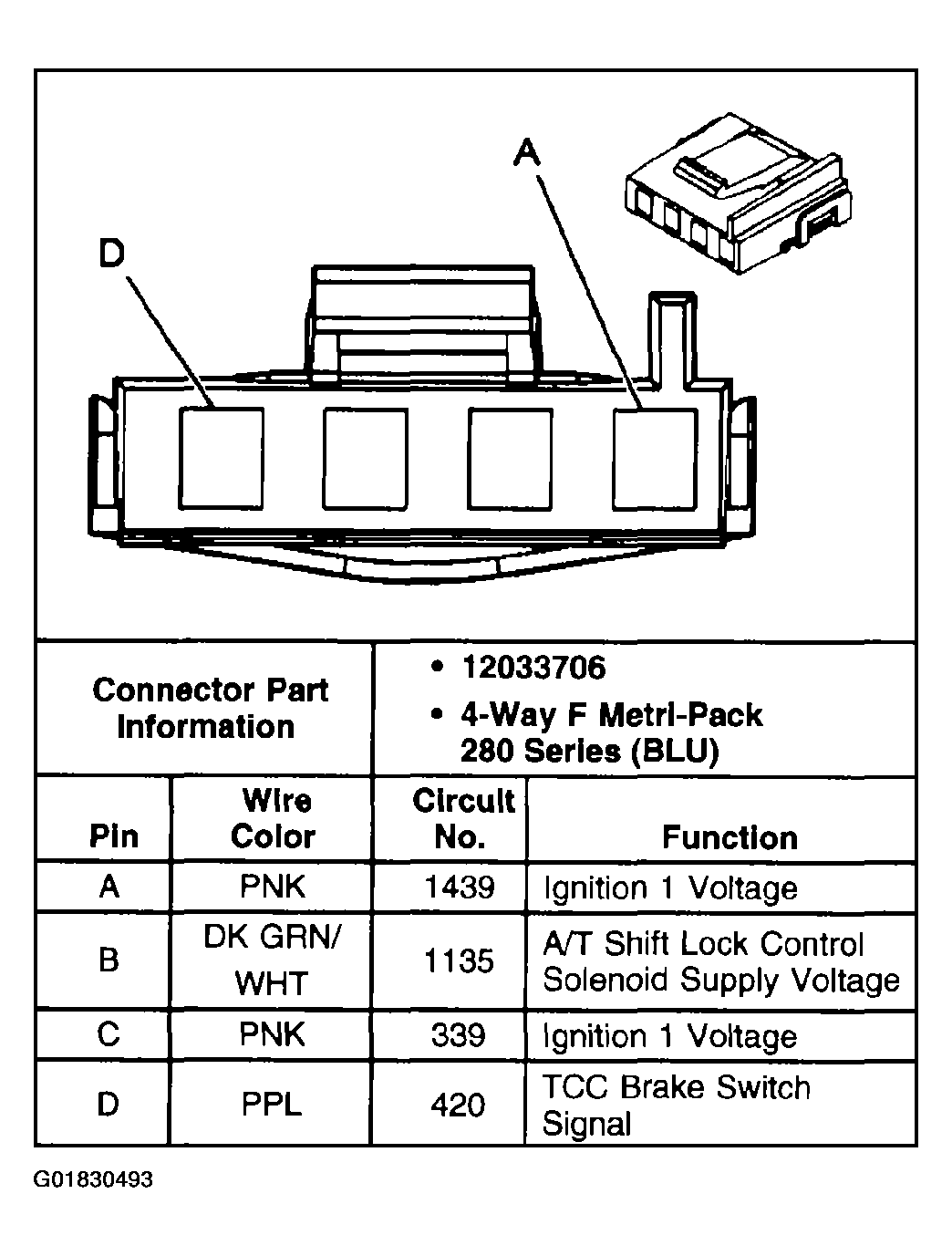

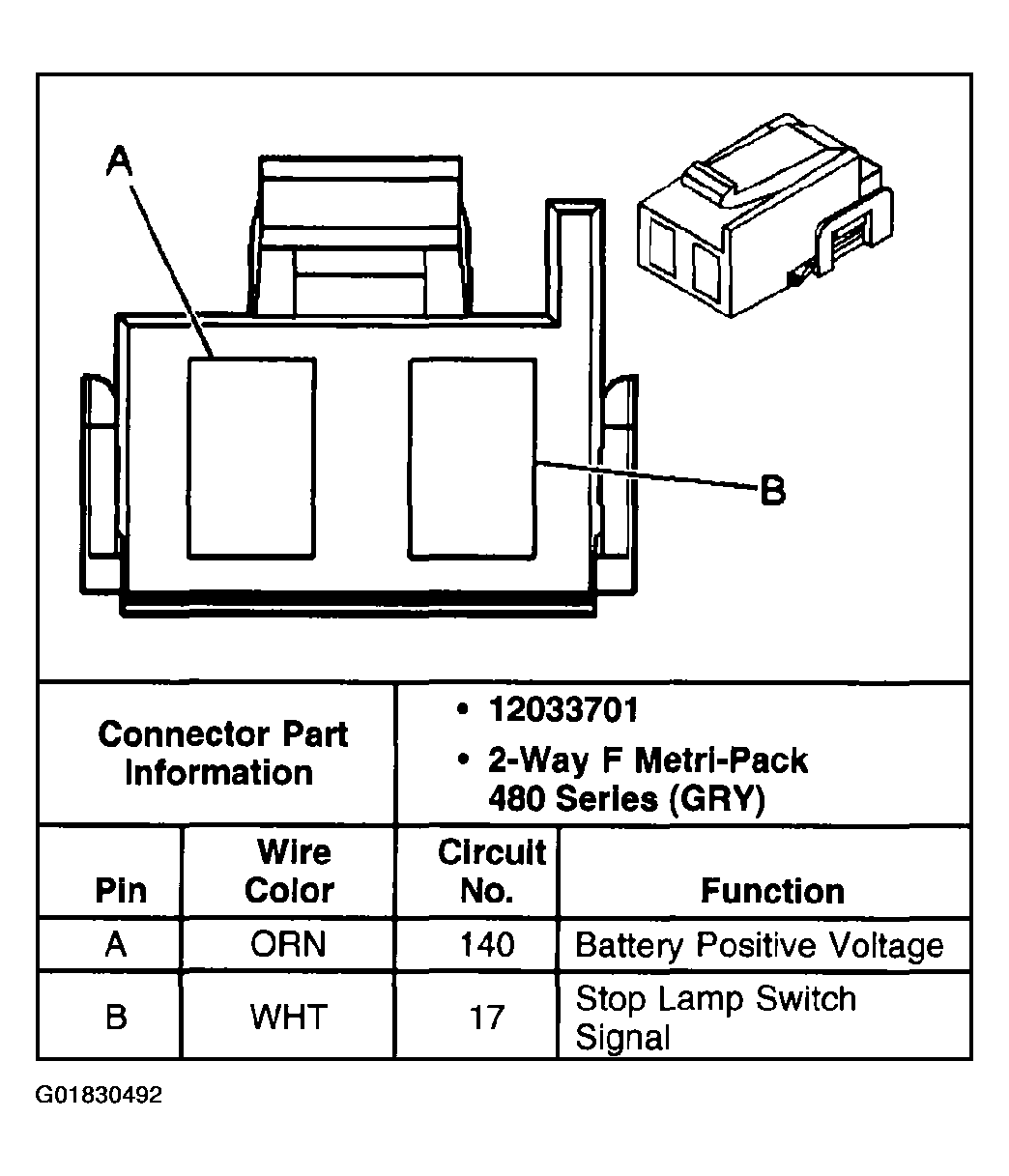

Fig 27: Stop Lamp Switch C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 28: Stop Lamp Switch C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 29: Vanity Mirror Lamp - Left Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 30: Vanity Mirror Lamp - Right Connector End View
