Cruise Control Module: Service and Repair

REMOVAL PROCEDURE




1. Disconnect the cruise control cable.
2. Disconnect the electrical connector (2).

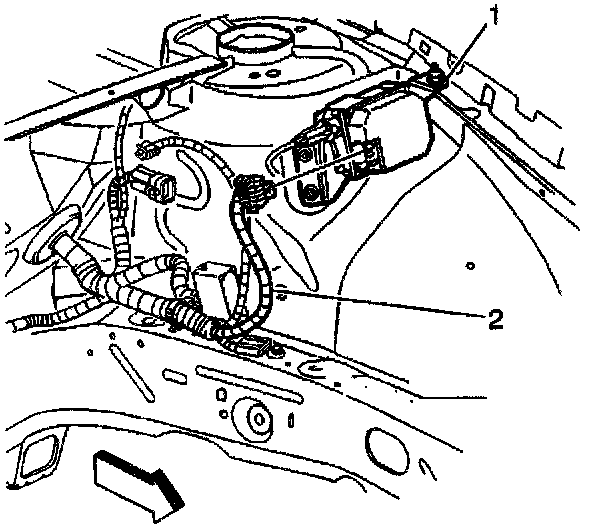

3. Remove the module bracket retaining fasteners (1,3).
4. Remove the cruise control module and bracket assembly (2) vehicle.
5. Remove the module to bracket fasteners.
6. Remove the module from the bracket.

INSTALLATION PROCEDURE




1. Install the cruise control module (2) to the bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the module to bracket fasteners.

Tighten
Tighten the fasteners to 7.5 N.m (66 lb in).

3. Install the cruise control module and bracket assembly to the vehicle.
4. Install the module retaining fasteners (1,3).

Tighten
Tighten the fasteners to 9 N.m (80 lb in).




5. Connect the electrical connector (2).
6. Connect the cruise control cable.
7. Inspect the component operation.
