Rear Integration Module (RIM) C1

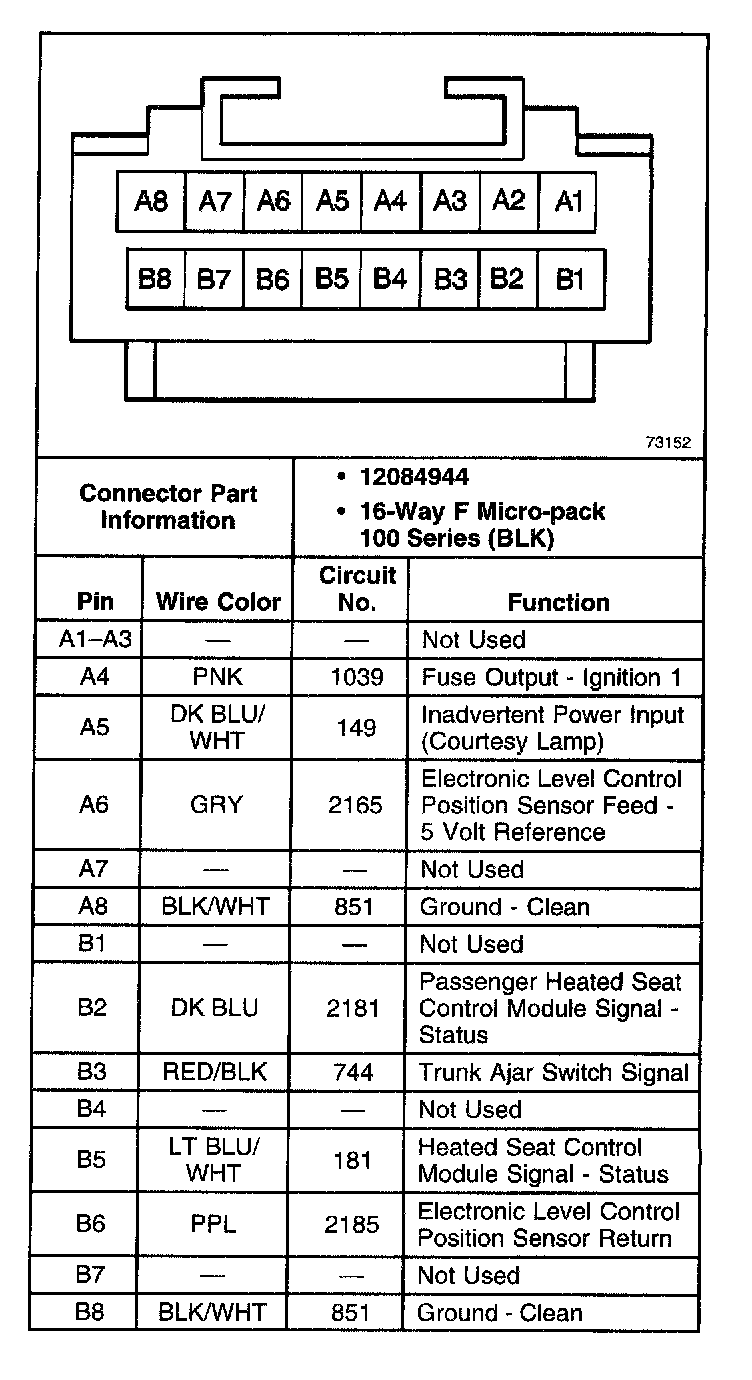

Rear Integration Module (RIM) C1:

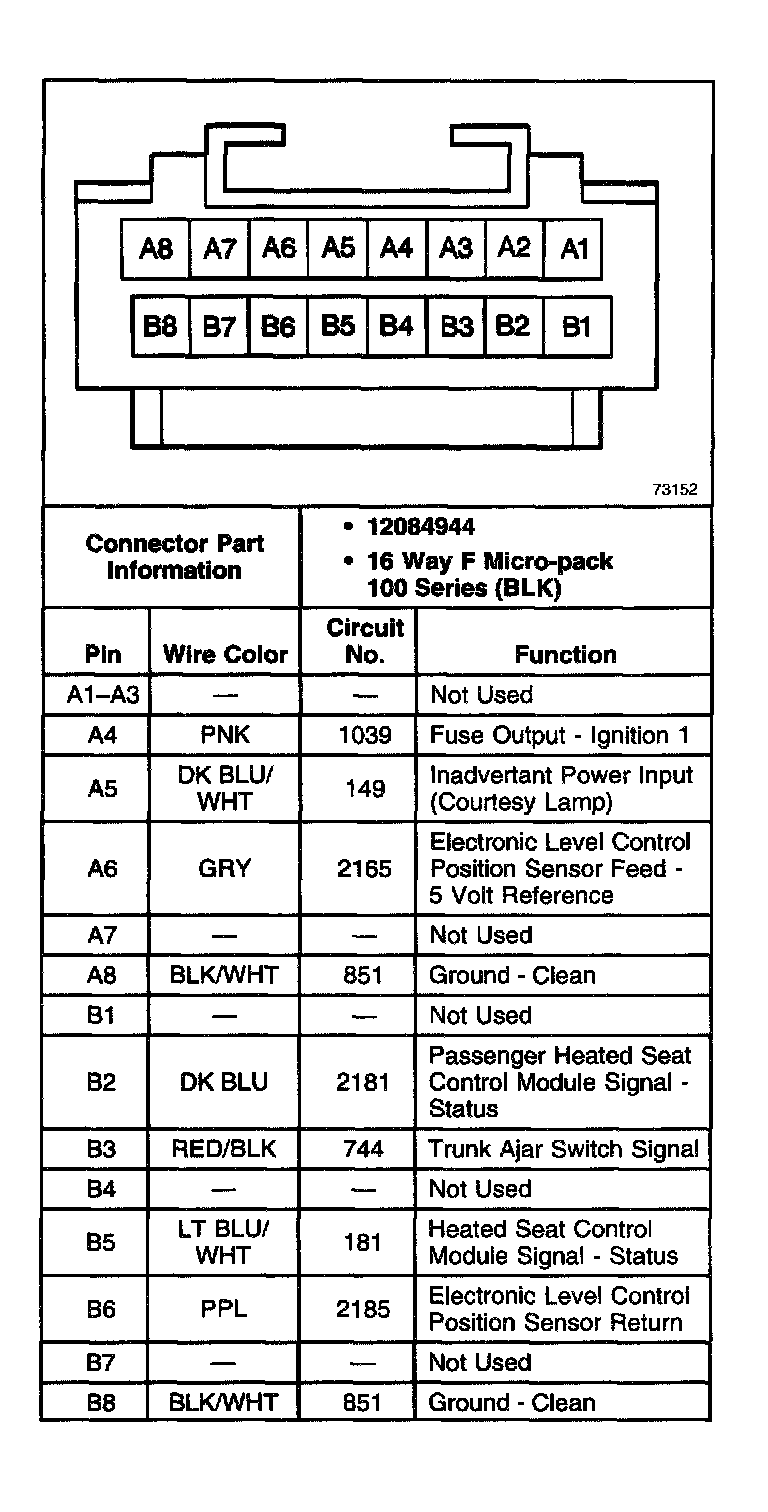

Rear Integration Module (RIM) C1:
