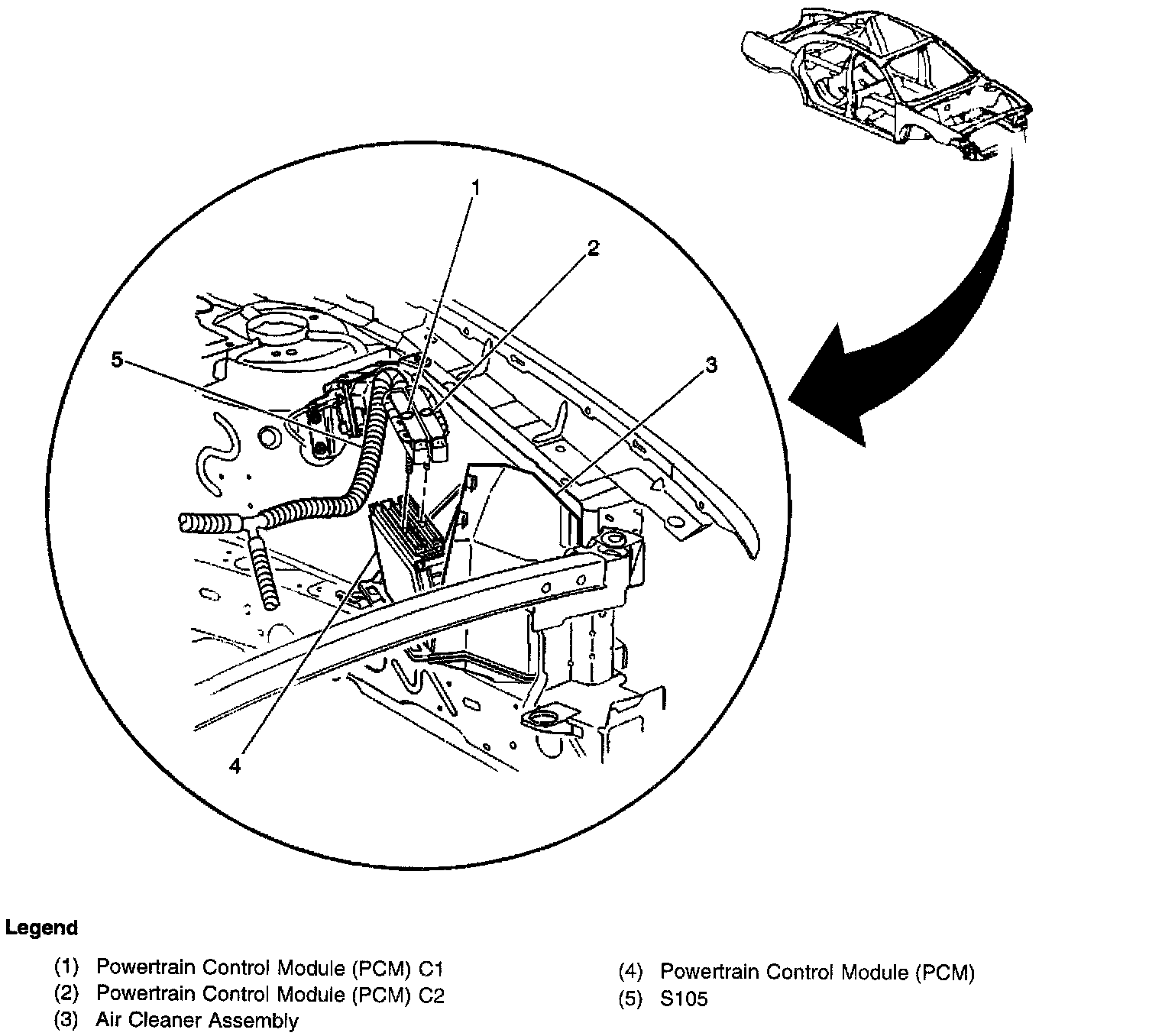

Powertrain Control Module (PCM) C1
Locations View:
Front LH side of engine compartment under air cleaner box
