Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connectors.
  3. Remove the mirror reinforcement cover.
  4. Remove the nuts from the mirror.
  5. Remove the mirror from the front door.

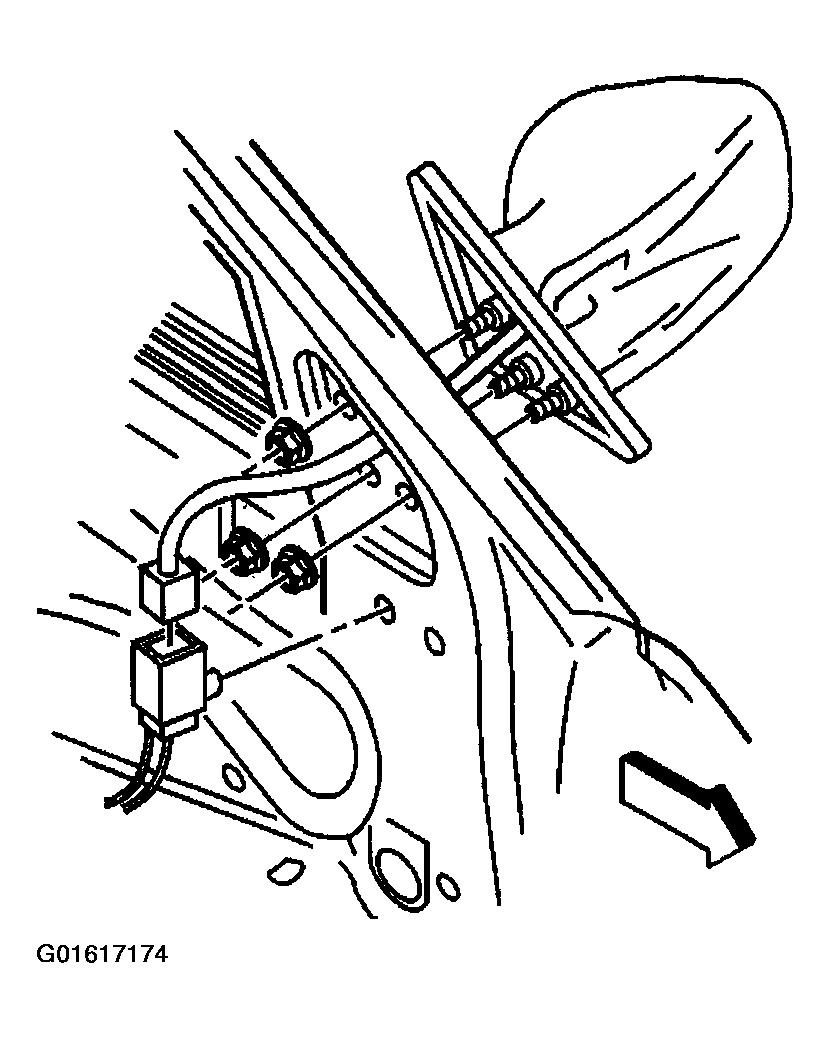

    Fig 1: Power Mirror
    G01617174Courtesy of GENERAL MOTORS CORP.
