IGN Key Alarm SW, Head LP SW, Park BRK IND SW

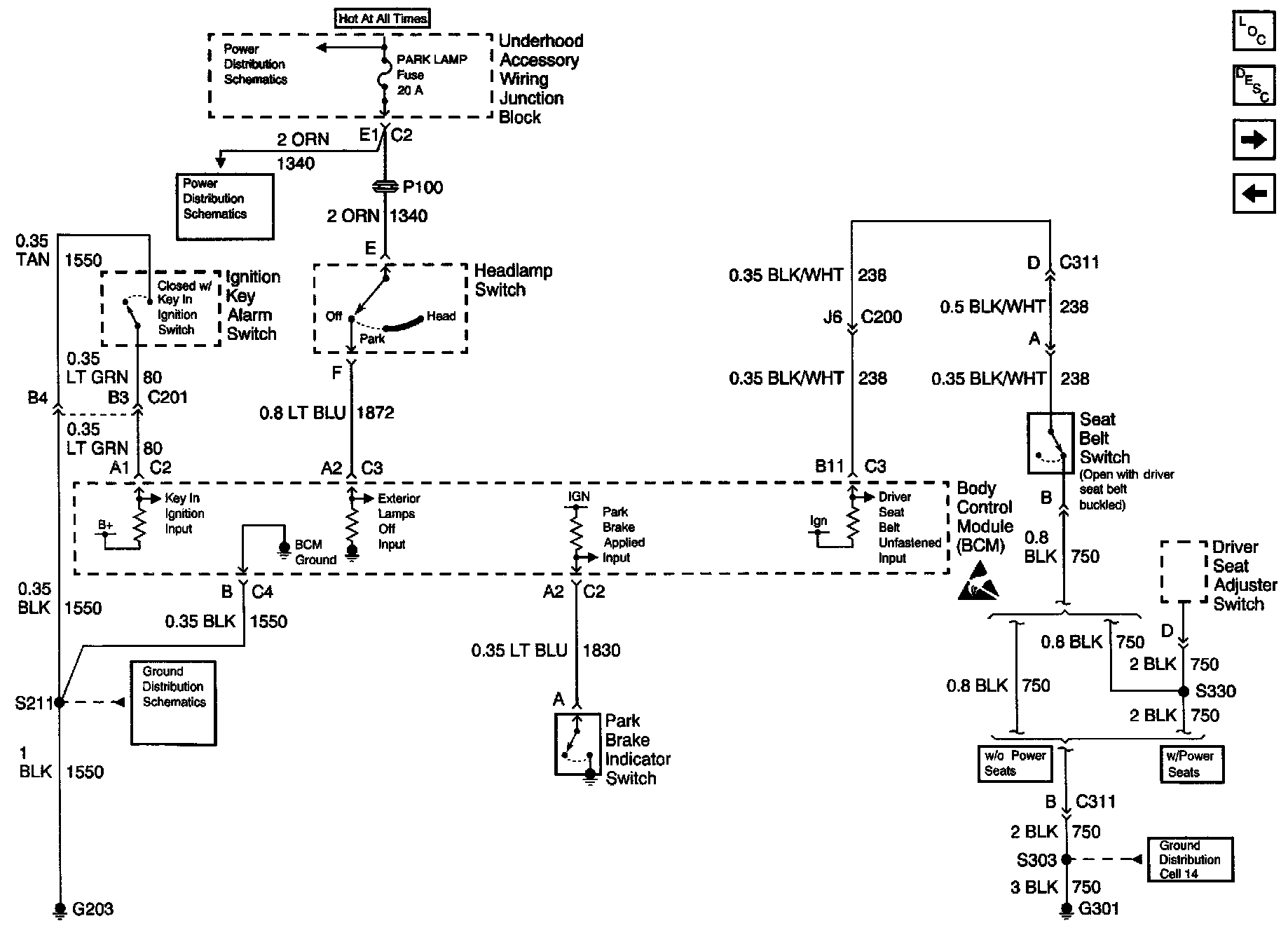

Body Control Module Schematics : Ignition Key Alarm Switch, Headlamp Switch, Park Brake Indicator Switch, Driver Seat Adjuster Switch And Seat Belt Switch:
