Radiator Support: Description and Operation

Radiator Support Description

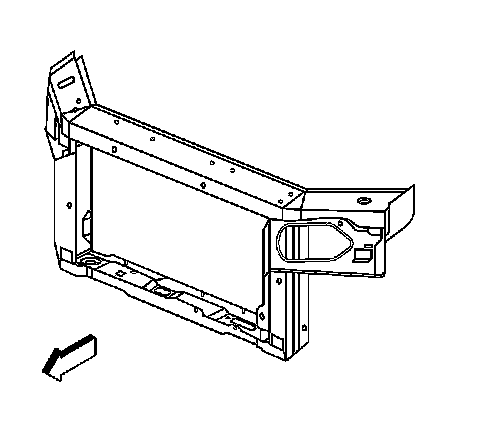

Radiator Support Assembly





The radiator support can be serviced as a complete assembly.

The radiator is made up of five major components:

* 4 upper
* 1 lower

Upper Radiator Support

The upper radiator support is an assembly consisting of 4 components:

* 2 piece upper tie bar
* Left and Right engine compartment front panels

Lower Radiator Support

The lower radiator support is available as a separate replaceable component if necessary.
