IP Compartment LP SW, Rear COMP Lid Ajar SW and Courtesy Lamps

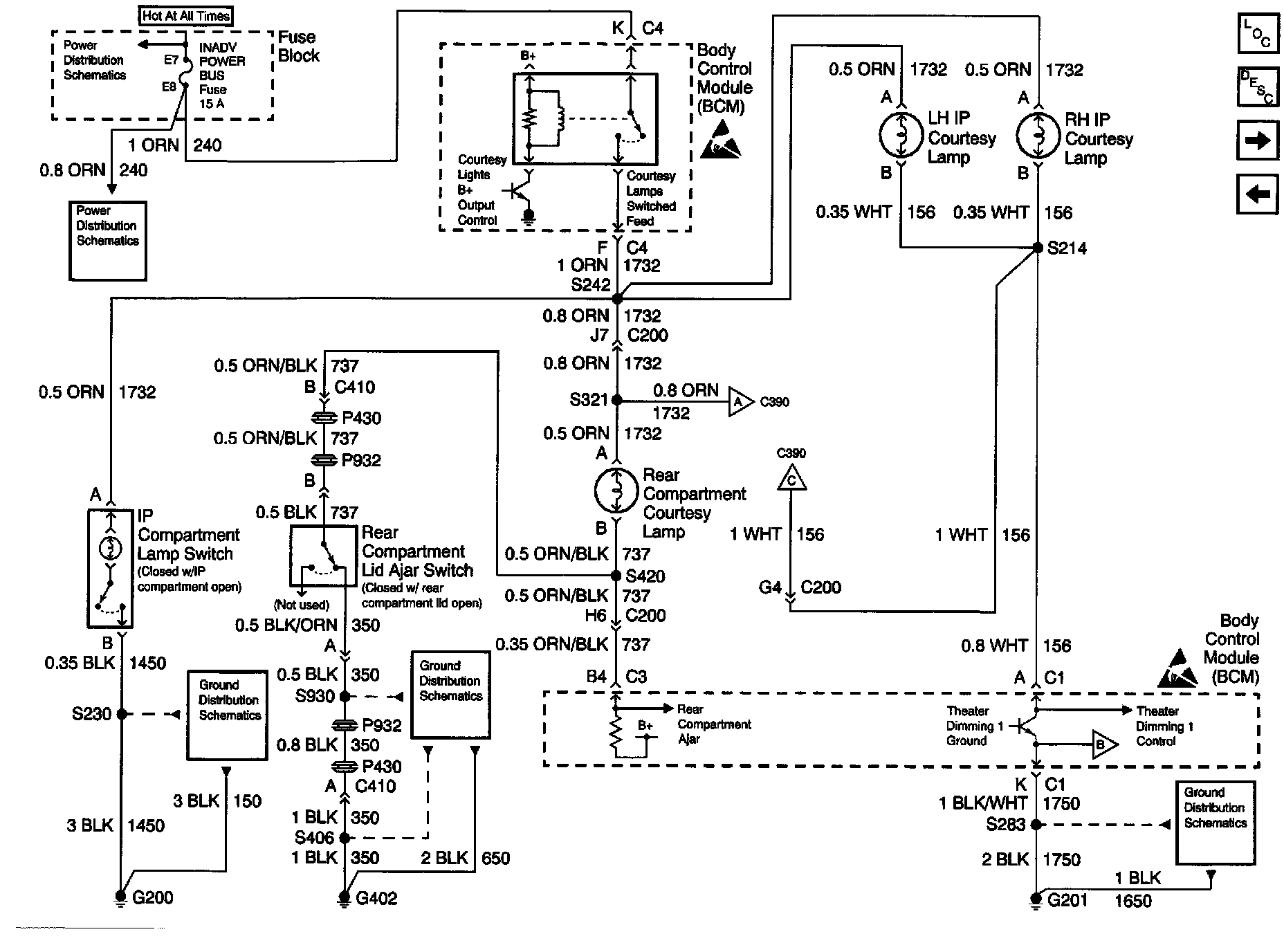

Body Control Module Schematics : IP Compartment Lamp Switch, Rear Compartment Lid Ajar Switch And Courtesy Lamps:
